ACH580 E-Clipse bypass and packaged drive user manual 5
Installation

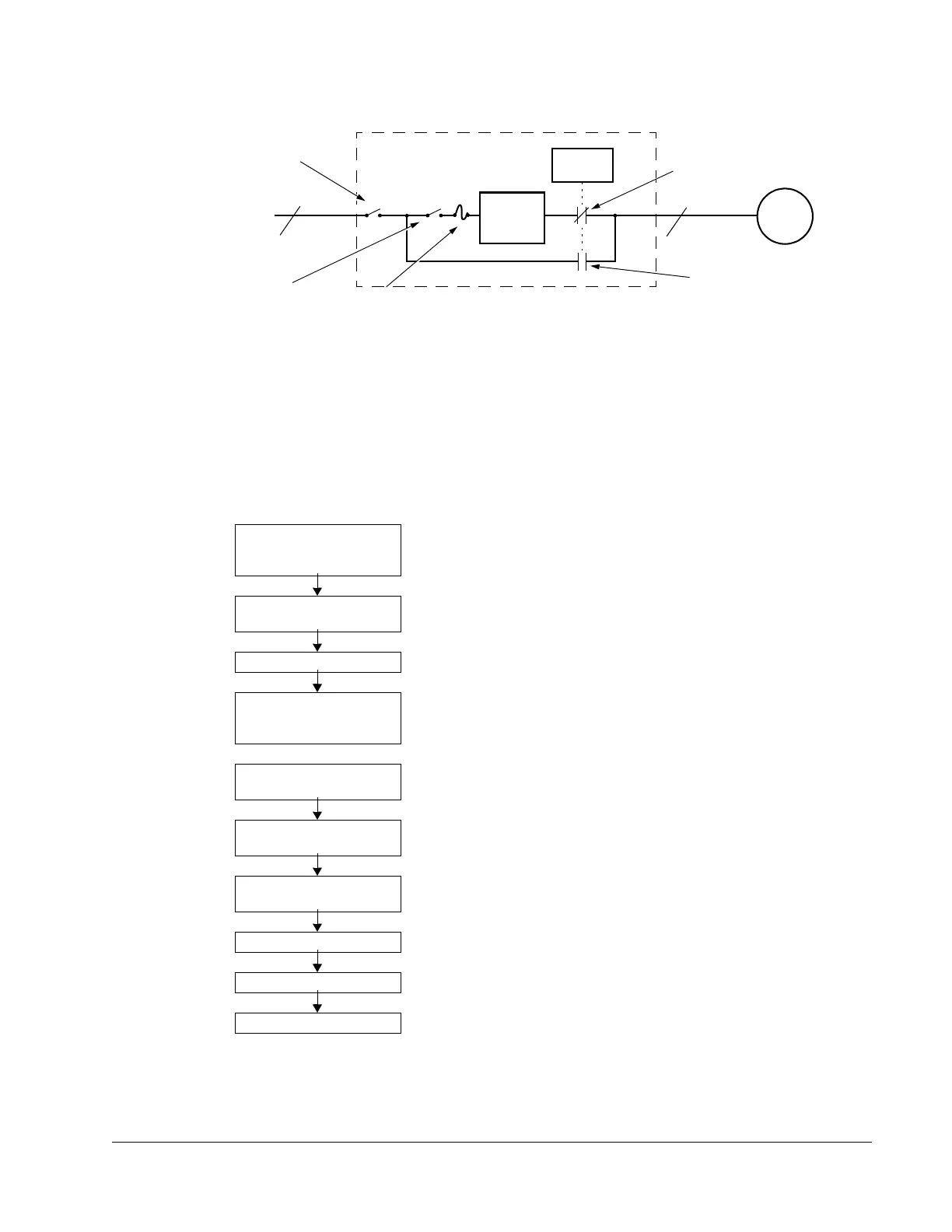

The following is a typical power diagram.
Installation flow chart
The installation of E-Clipse Bypass Configurations for ACH580 drives follows the
outline below. The steps must be carried out in the order shown. At the right of each
step are references to the detailed information needed for the correct installation of
the unit.
For more details, refer to the ACH580-01 Hardware Manual (3AXD50000044839).
Task
Reference in ACH580-01
Hardware Manual
(3AXD50000044839)
Installation section
Reference in this Manual
PREPARE for installation Preparing for installation in
the ACH580-01 Hardware
Manual (3AXD50000044839)
Preparing for installation on page 6.
Suitable mounting location on page 7
PREPARE the mounting
location
PREPARE the mounting
location
—
MOUNT the unit MOUNT the drive —
REMOVE the covers
from Vertical E-Clipse
Bypass Unit
REMOVE the front cover —
INSTALL wiring Wiring overview and Install
the wiring
Installing the wiring starting on
page 7.
CHECK jumpers and
switches
— Check jumpers and switches on
page 25.
CHECK installation Check installation Check installation – Bypass on
page 19.
RE-INSTALL the covers Re-install cover —
APPLY power Apply power —
START-UP Start-up —
ACH580
Drive with E-Clipse Bypass
Motor
3 Phase
Drive
3
3
Disconnect Switch
or Circuit Breaker
Service Switch
(Optional)
Input Power
Bypass
Contactor
Bypass
Control
Drive Output
Contactor
Drive Input Fuse
To Next Page
