ABB ACH580-BDR User Manual

ACH580 E-Clipse bypass and packaged drive user manual 31
Start-up
Start-up
Start-up
Start-Up can be performed in two ways:
• Using the Start-Up Parameter List
• Changing the parameters individually from the Full Parameter List.
Note: Run motor from drive before attempting bypass operation.

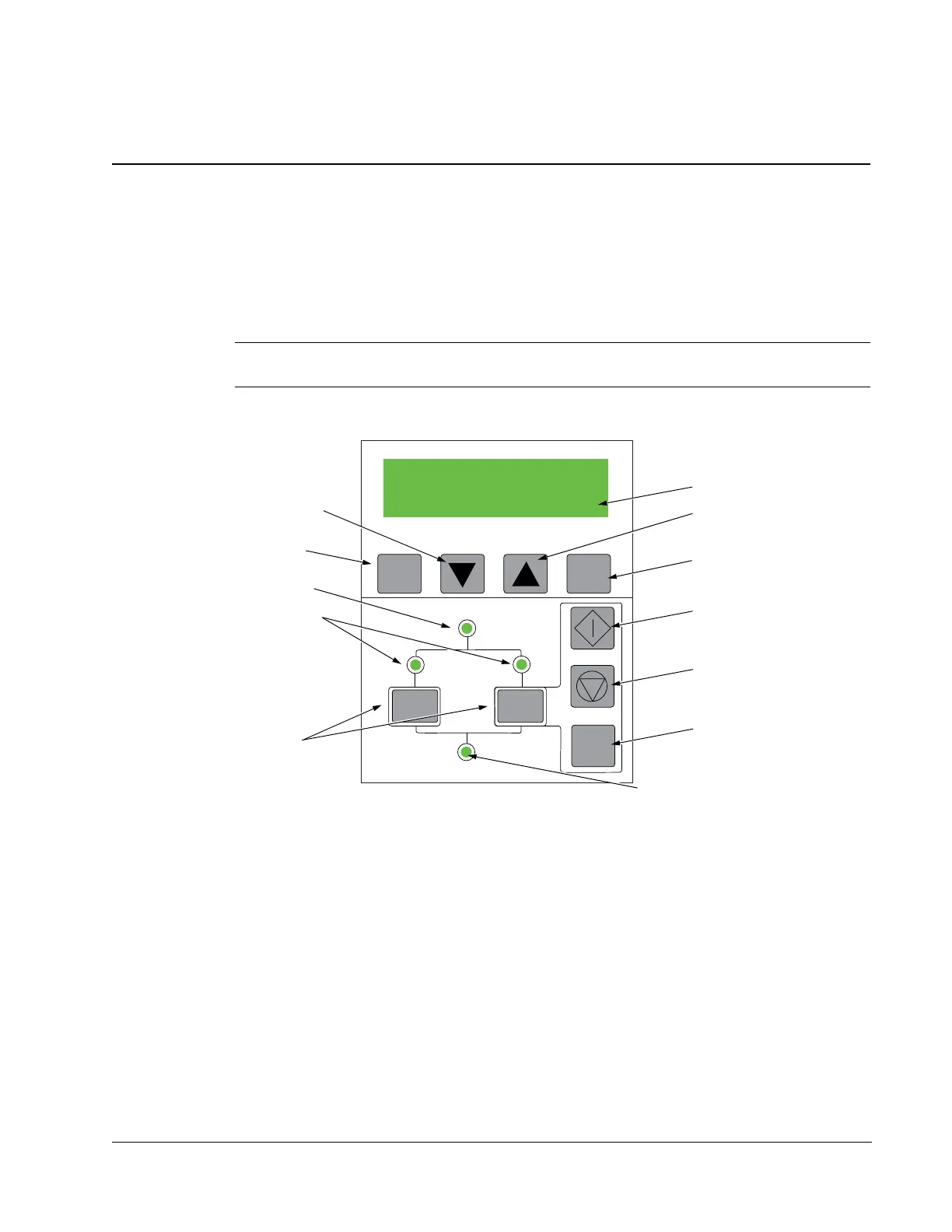

E-CLIPSE BYPASS CONTROL
ESC ENTER
AUTO
OFF/RESET
HAND
DRIVE BYPASS
ENABLED
SELECTED
FAULTED
MOTOR RUN
Down
Enabled LED
Drive and Bypass
Selected/Faulted LEDs
Drive/Bypass Select Keys
Motor Run LED
OFF/Reset Key
ON/Hand Key
Enter
Up
LCD Display
Auto Key
Escape
