Bypass control
The bypass control panel features:
Power On Indication
The Ready (Power On) indication is provided by the bypass control panel. The
bypass control panel display will be illuminated and text will be displayed when the
disconnect switch or circuit breaker is closed and control power is applied to the
bypass.
Enabled LED
The Enabled LED is illuminated green under the following conditions:
• Both the Start Interlock(s) and Run Permissive contacts are closed.
• The Start Interlock contact(s) are closed with no Start command present.
The Enabled LED flashes green if the Run Permissive contact is open, the Start
Interlock contact(s) are closed, and Start command is present.
The Enabled LED is illuminated red when the Start Interlock contact(s) are open.
Motor Run LED
The Motor Run LED is illuminated green when the motor is running in either bypass
mode or in drive mode. The Motor Run LED flashes green to indicate the system has
been placed in an Override condition.
E-CLIPSE BYPASS CONTROL
ESC ENTER
AUTO
OFF/RESET
HAND
DRIVE BYPASS
ENABLED
SELECTED
FAULTED
MOTOR RUN

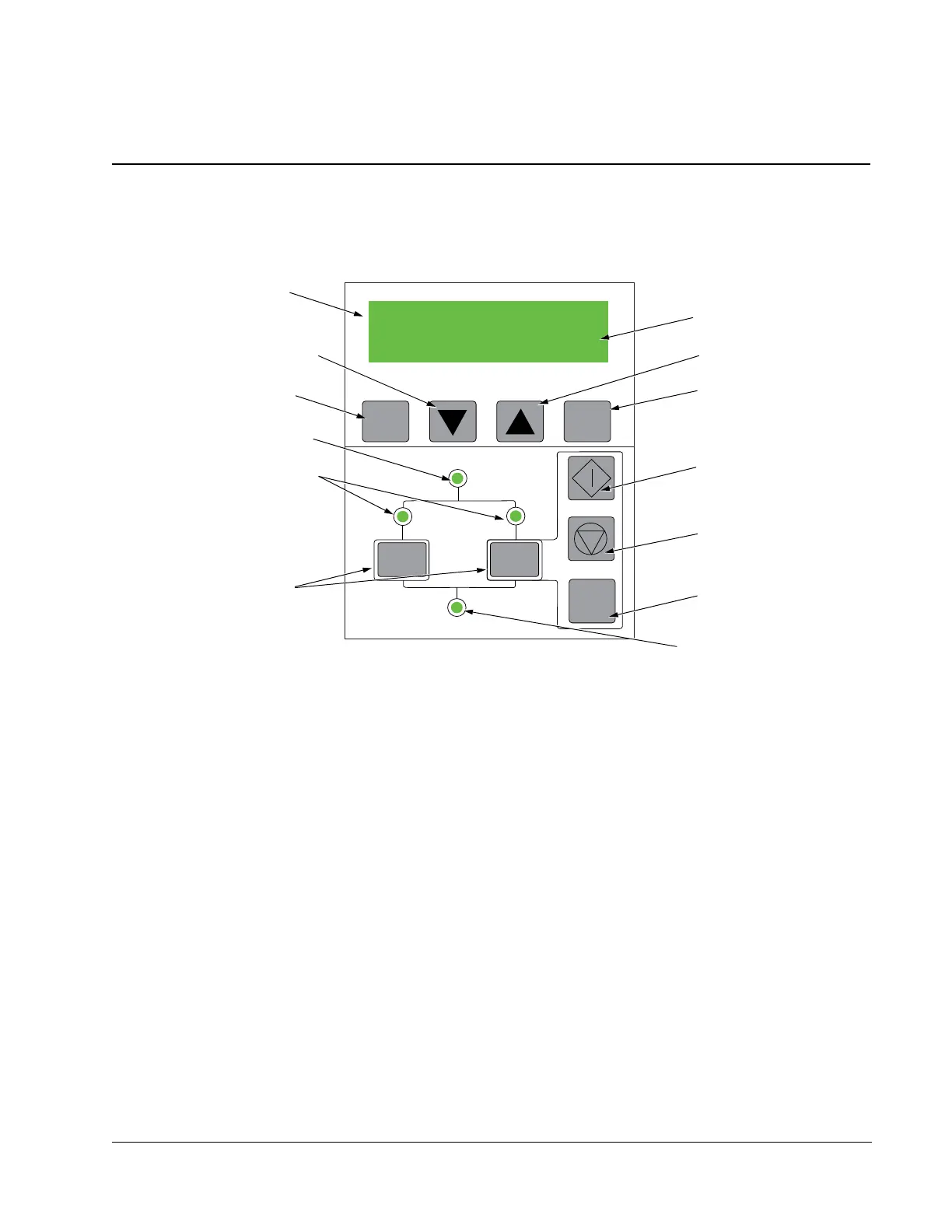

Down
Enabled LED
Drive and Bypass
Selected/Faulted LEDs
Drive/Bypass Select Keys
Motor Run LED
OFF/Reset Key
ON/Hand Key
Enter
Up
LCD Display
Auto Key
Escape
“Power On Indication”
(Display Illuminated)
