ACH580 E-Clipse bypass and packaged drive user manual 243
Technical data
Dimensions and weights
Mounting dimensions

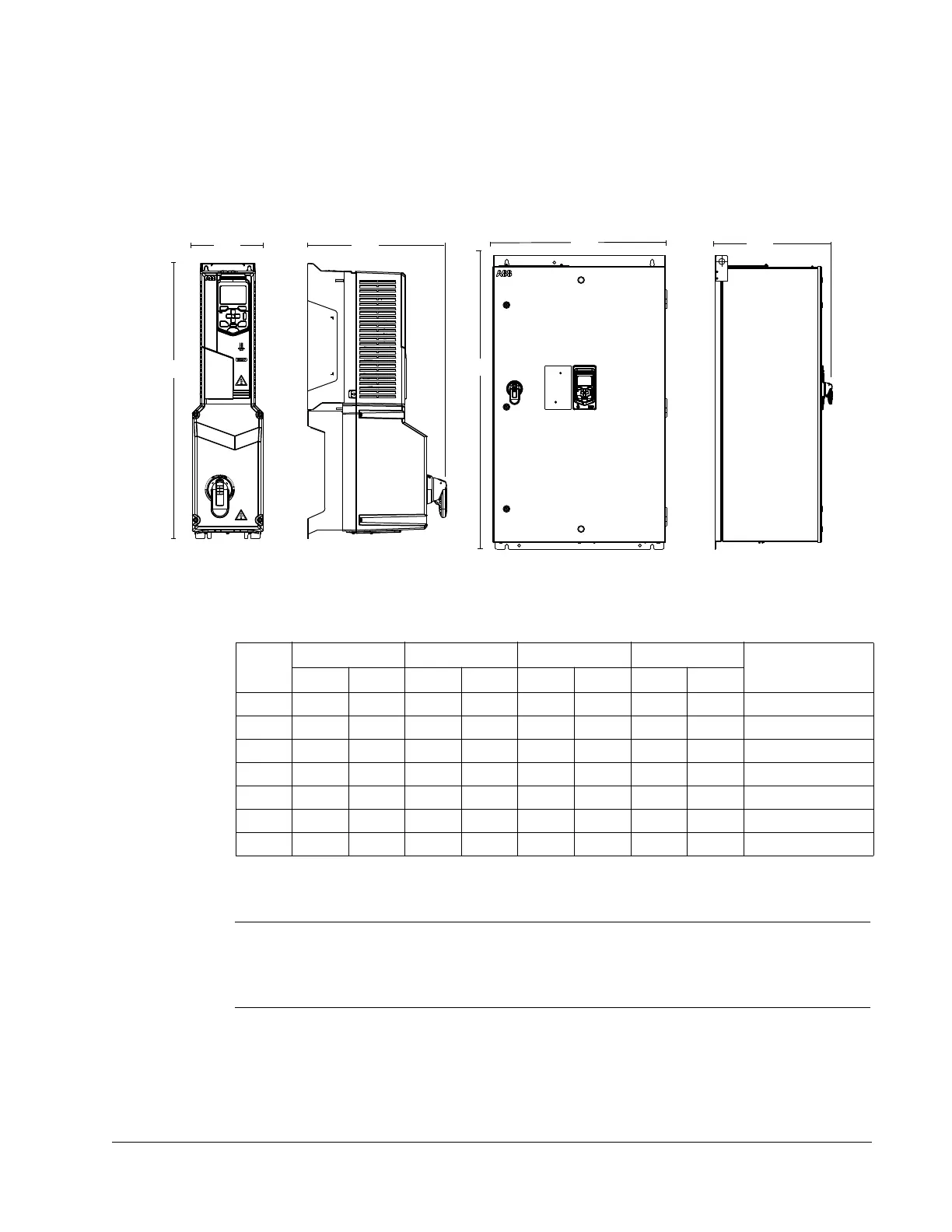

Dimensions: ACH580-PxR UL (NEMA) Type 1
See page 243 for mounting dimension details and additional free space
recommendations.
Note: Keep a minimum of 50 mm (2 in.) of free space on each side and 200 mm
(8 in.) of free space above and below all units from non-heat producing sources.
Double these distances from heat producing sources.
Frame
Height (H) Width (W) Depth (D) Weight
Dimensional
Drawings
in mm in mm in mm lb kg
Px1-1 24.60 624 6.34 160 12.42 315 18.1 8.2 3AXD50000220946
Px1-2 28.49 723 6.34 161 12.63 320 22.0 10.0 3AXD50000221738
Px1-3 34.86 885 8.39 213 13.22 335 39.0 17.7 3AXD50000222636
Px1-4 40.61 1031 8.39 213 14.26 362 60.0 27.2 3AXD50000222940
PxB1-1 33.16 842 17.63 447 13.90 353 77.0 35.0 3AXD50000236596
PxB1-2 40.60 1030 20.50 521 15.30 388 122.0 55.3 3AXD50000236602
PxB1-3 47.72 1212 28.24 717 19.04 483 393.0 178.3 3AXD50000236374
Px1-1 to Px1-4
PxB1-1 to PxB1-4
W
H
D
W
H
D
