ACH580 E-Clipse bypass and packaged drive user manual 215
Technical data
Dimensions and weights 580-01
Dimensions: ACH580-VxR UL (NEMA) Type 1, R1 through R4 Frame Size
Frame
Height (H) Width (W) Depth (D) Weight
Dimensional
Drawings
in mm in mm in mm lb kg
Vx1-1 40.18 1020 5.39 136 10.55 268 30.0 13.6 3AXD50000037428
Vx1-2 44.10 1120 5.39 136 10.77 273 50.7 23.0 3AXD50000037429
Vx1-3 38.81 985 8.44 214 10.90 276 59.5 27.0 3AXD50000153787
Vx1-4 47.93 1217 8.44 214 12.00 304 86.0 39.0 3AXD50000153770
*Keep a minimum of 50 mm (2 in) of free space on each side and 200 mm (8 in) of free space above
and below all units from non-heat producing sources. Double these distances from heat producing
sources.

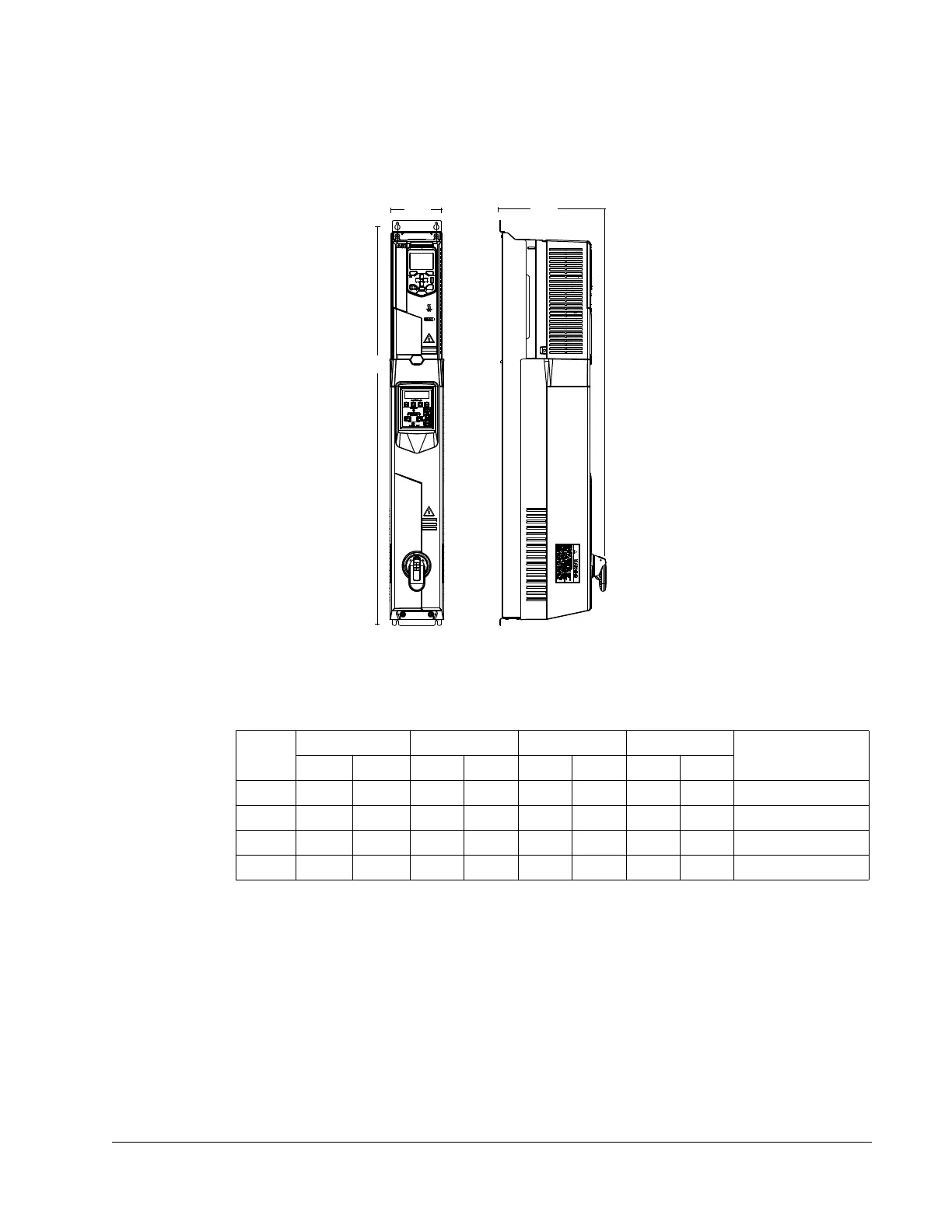

Wall Mount (Vx1-1 - Vx1-4)
Drawing is not for engineering purposes.
W
H
D
