ACH580 E-Clipse bypass and packaged drive user manual 245
Technical data

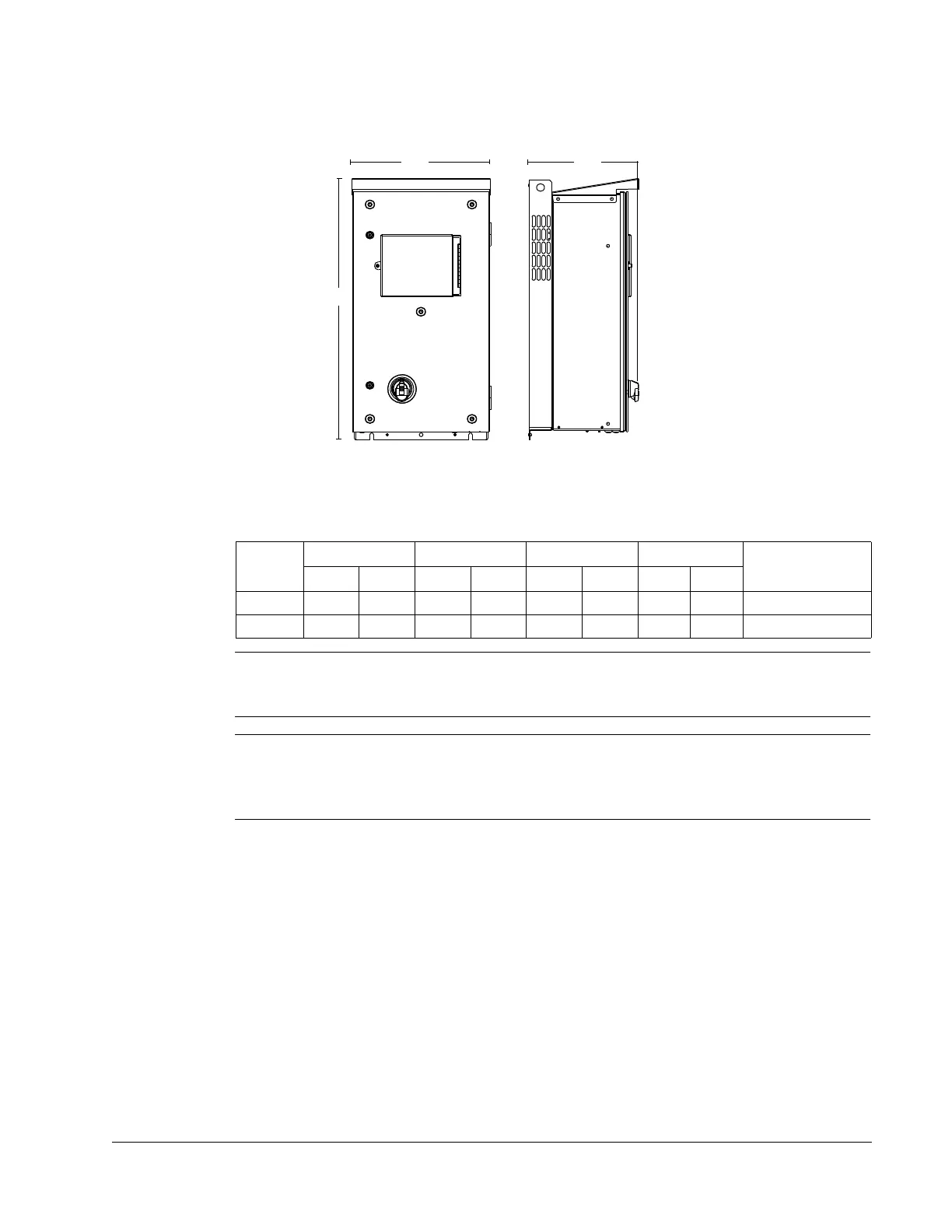

Dimensions: ACH580-PxR UL (NEMA) Type 3R
Note: UL (NEMA) Type 3R, Px3R-1...Px3R-4 enclosures are designed to be
mounted on a wall.
Note: Keep a minimum of 50 mm (2 in.) of free space on each side and 200 mm
(8 in.) of free space above and below all units from non-heat producing sources.
Double these distances from heat producing sources.
Degrees of protection
Available enclosures:
• UL (NEMA) Type 1 enclosure. The site must be free of airborne dust, corrosive
gases or liquids, and conductive contaminants such as condensation, carbon
dust, and metallic particles.
• UL (NEMA) Type 12 enclosure. This enclosure provides protection from airborne
dust and light sprays or splashing water from all directions.
• UL (NEMA) Type 3R enclosure. This enclosure provides protection from the
ingress of water (rain, sleet, or snow). The external formation of ice does not
damage this enclosure.
Frame
Height (H) Width (W) Depth (D) Weight
Dimensional
Drawings
in mm in mm in mm lb kg
PxB3R-1 33.30 846 17.70 449 14.00 355 83.8 38.0 3AXD50000236367
PxB3R-2 40.60 1032 20.10 511 15.00 391 193.0 88.0 3AXD50000237531
