Maintenance intervals
If installed in an appropriate environment, the drive requires very little maintenance.
This table lists the routine maintenance intervals recommended by ABB for ACH580
enclosures.
Enclosure air filter replacement – UL (NEMA) Type 12 hinged door
wall mount enclosures
Filter material
This procedure applies to drive with input disconnect configurations in UL (NEMA)
Type 12 hinged door wall mount enclosures. This filter is located at the bottom of the
enclosure. Use the following procedure to check and replace filters.
1. On the enclosure, remove the screws holding the filter bracket in place.
2. Remove the filter kit from the enclosure.
Maintenance Configuration Interval Instruction
Check/replace hinged
door wall mount
enclosure inlet air filter
Hinged door wall
mount UL (NEMA)
Type 12 enclosures
Check every
3 months. Replace
as needed.
Enclosure air filter replacement
– UL (NEMA) Type 12 hinged
door wall mount enclosures on
page 199.
Material Filter Type
American Air Filter (358-35-06A-12A) POLYKLEON WHITE 12.7mm (1/2 in.) X 152.4mm (6 in.) X
304.6mm (12 in.) stk.

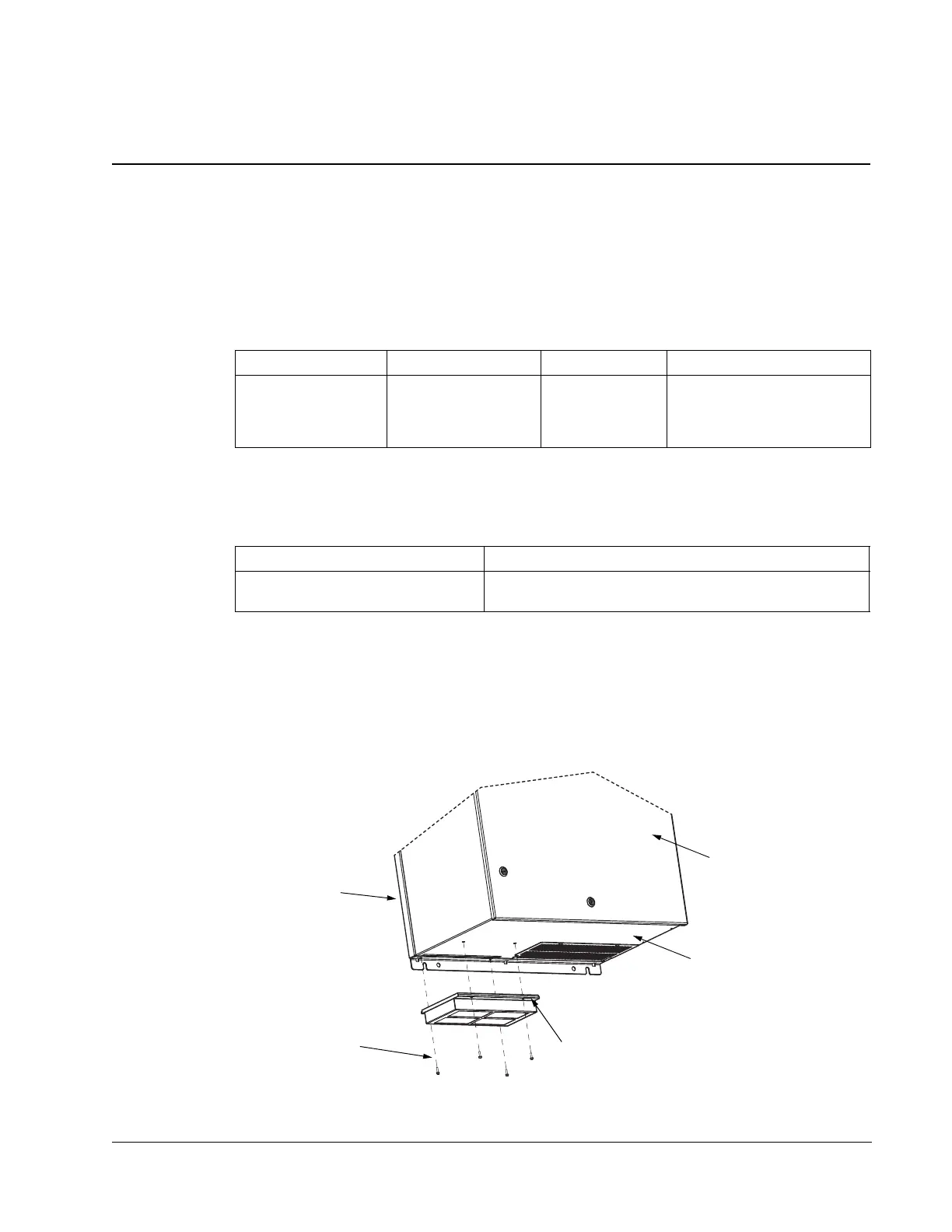

Enclosure Door
Mounting
Screws (4X)
Filter Bracket
Back of
Enclosure
Bottom of Enclosure
