Mechanical installation

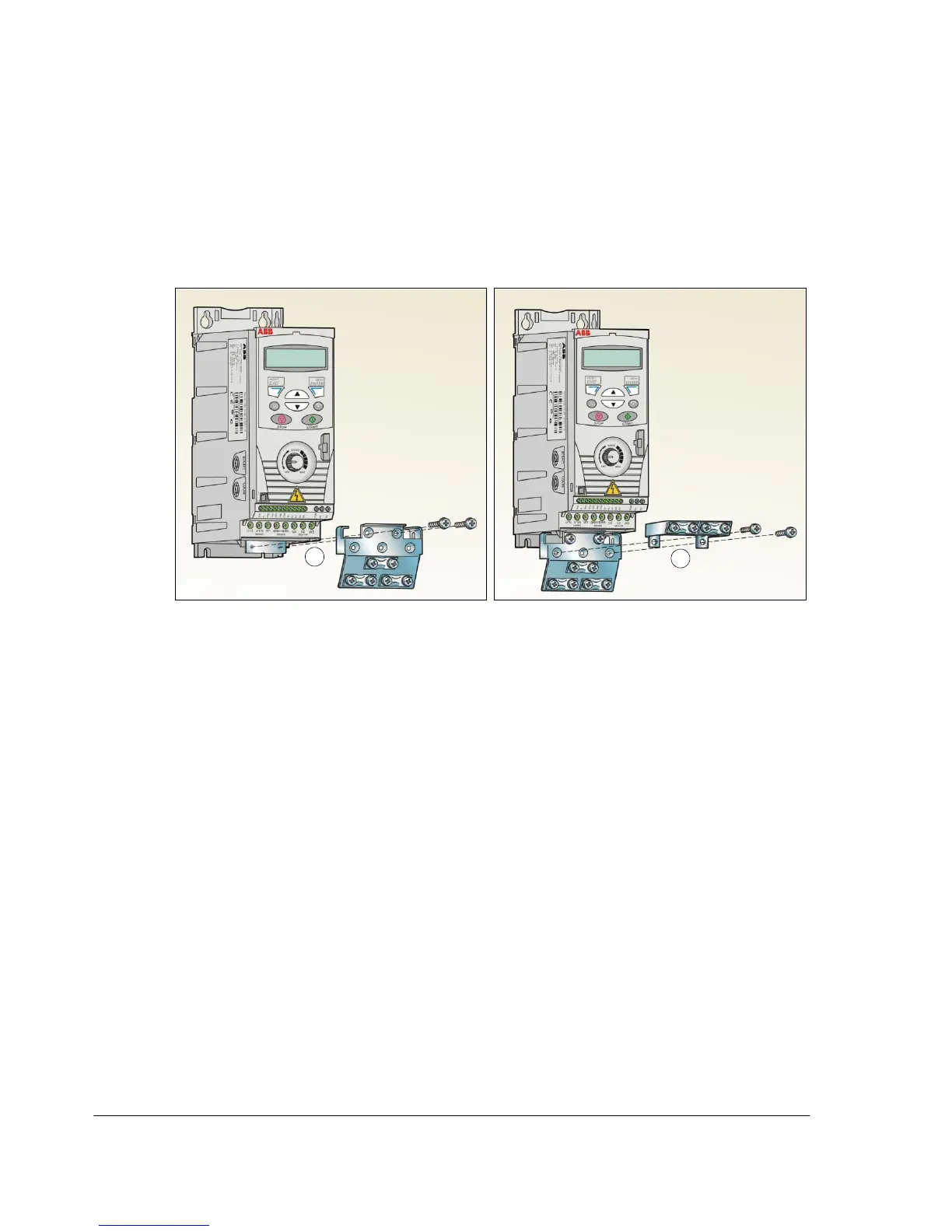

Fasten clamping plates

Note: Make sure that you do not throw the clamping plates away as they are

required for proper grounding of the power and control cables.

1. Fasten the clamping plate to the plate at the bottom of the drive with the provided

screws.

2. Fasten the I/O clamping plate to the clamping plate with the provided screws.

Questions and Answers:

Need help?

Do you have a question about the ABB ACS150 series and is the answer not in the manual?

General

Power Range	0.37 to 4 kW
Frequency Range	0 to 500 Hz
Protection Class	IP20
Overload Capacity	150% for 60 seconds
Braking Chopper	Built-in
Control Method	Scalar control
Supply Voltage	200-240 V (1-phase), 200-480 V (3-phase)
EMC Filter	Built-in
Input Voltage	200-240 V (1-phase), 200-480 V (3-phase)
Protection Features	Overvoltage, undervoltage, overcurrent, short-circuit
Communication Options	Modbus RTU
Voltage Range	200 to 240 V (1-phase), 380 to 480 V (3-phase)
