ABB ACS150 series User Manual

43
Electrical installation

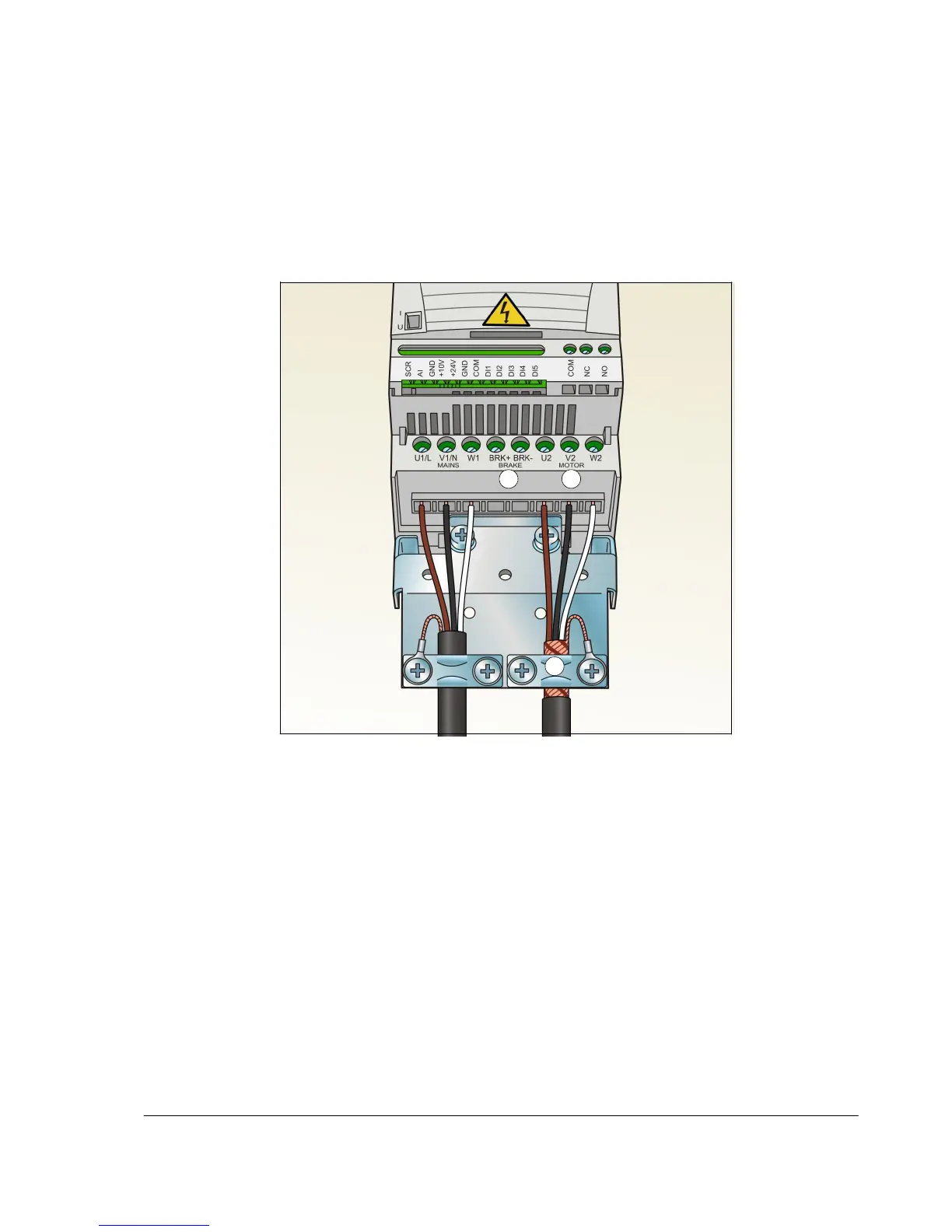

4. Connect the phase conductors to the U2, V2 and W2 terminals. Use a tightening
torque of 0.8 N·m (7 lbf·in).
5. Connect the optional brake resistor to the BRK+ and BRK- terminals with a
shielded cable using the same procedure as for the motor cable in the previous
step.
6. Secure the cables outside the drive mechanically.
5 4
3

ABB ACS150 series Specifications

General

Power Range	0.37 to 4 kW
Frequency Range	0 to 500 Hz
Protection Class	IP20
Overload Capacity	150% for 60 seconds
Braking Chopper	Built-in
Control Method	Scalar control
Supply Voltage	200-240 V (1-phase), 200-480 V (3-phase)
EMC Filter	Built-in
Input Voltage	200-240 V (1-phase), 200-480 V (3-phase)
Protection Features	Overvoltage, undervoltage, overcurrent, short-circuit
Communication Options	Modbus RTU
Voltage Range	200 to 240 V (1-phase), 380 to 480 V (3-phase)
