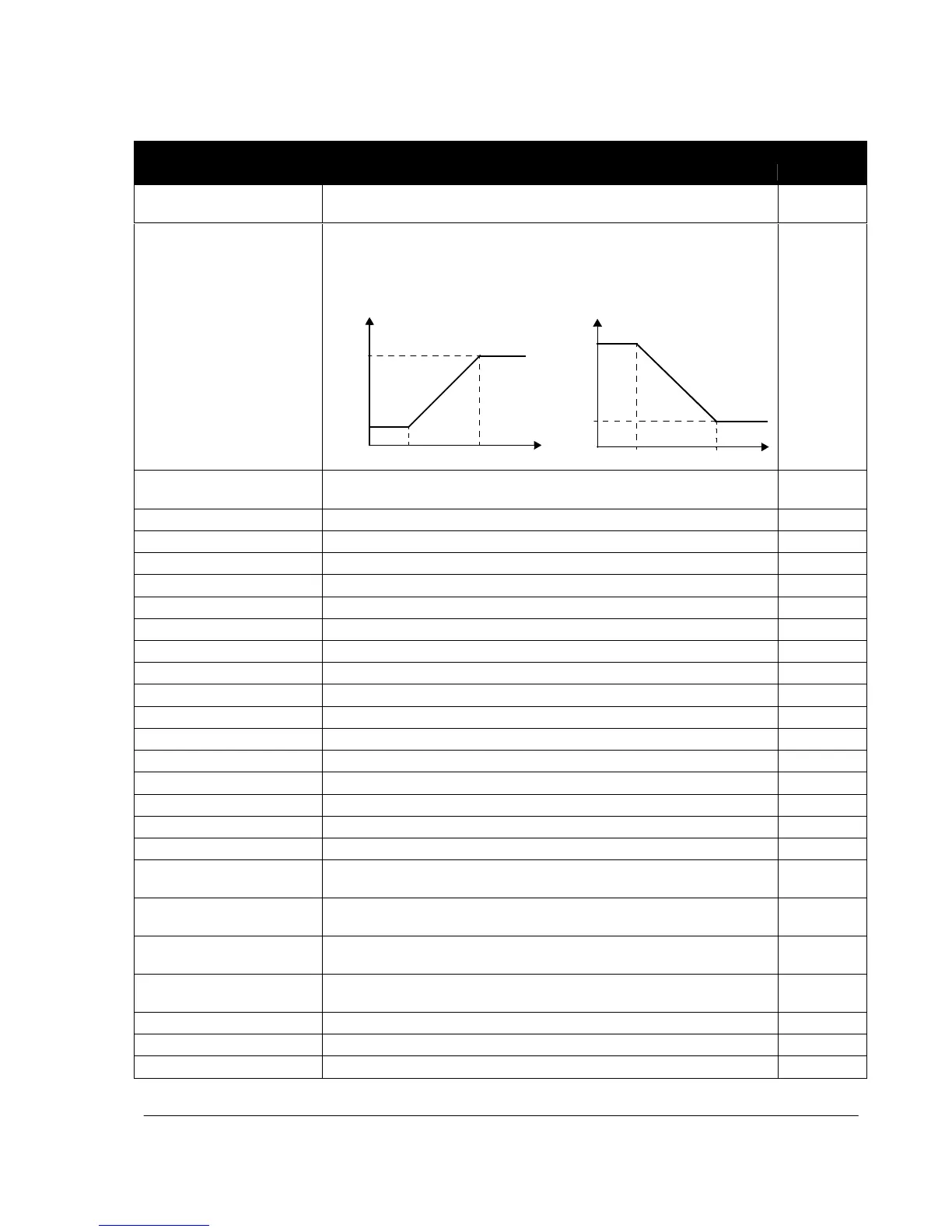

ABB ACS150 series User Manual

91
Actual signals and parameters
Parameters in the Long parameter mode
Index
Name/Selection
Description
Def
1104 REF1 MIN
Defines the minimum value for external reference REF1. Corresponds to the
minimum setting of the used source signal.
0.0 Hz
0.0…500.0 Hz
Minimum value.
Example: Analog input AI1 is selected as the reference source (value of
parameter 1103 REF1 SELECT is AI1). The reference minimum and
maximum correspond to the 1301 MINIMUM AI1 and 1302 MAXIMUM AI1
settings as follows:
REF (Hz) REF (Hz)
1104
1105 (MIN)
(MAX)
1104
1105
(MIN)
AI1 signal (%)
(MAX)
AI1 signal (%)
1301
1302
1301
1302
1105 REF1 MAX
Defines the maximum value for external reference REF1. Corresponds to the
maximum setting of the used source signal.
E: 50.0 Hz /
U: 60.0 Hz
0.0…500.0 Hz
Maximum value. See the example for parameter 1104 REF1 MIN.
1106 REF2 SELECT
Selects the signal source for external reference REF2.
2 = POT
0 = KEYPAD
See parameter 1103 REF1 SELECT.
1 = AI1
See parameter 1103 REF1 SELECT.
2 = POT
See parameter 1103 REF1 SELECT.
3 = AI1/JOYST
See parameter 1103 REF1 SELECT.
5 = DI3U,4D(R)
See parameter 1103 REF1 SELECT.
6 = DI3U,4D
See parameter 1103 REF1 SELECT.
11 = DI3U,4D(RNC)
See parameter 1103 REF1 SELECT.
12 = DI3U,4D(NC)
See parameter 1103 REF1 SELECT.
14 = AI1+POT
See parameter 1103 REF1 SELECT.
16 = AI1-POT
See parameter 1103 REF1 SELECT.
19 = PID1OUT
PID controller 1 output. See parameter group 40 PROCESS PID SET 1.
30 = DI4U,5D
See parameter 1103 REF1 SELECT.
31 = DI4U,5D(NC)
See parameter 1103 REF1 SELECT.
32 = FREQ INPUT
See parameter 1103 REF1 SELECT.
1107 REF2 MIN
Defines the minimum value for external reference REF2. Corresponds to the
minimum setting of the used source signal.
0.0%
0.0…100.0%
Value in percent of the maximum frequency. See the example for parameter
1104 REF1 MIN for correspondence to the source signal limits.
1108 REF2 MAX
Defines the maximum value for external reference REF2. Corresponds to the
maximum setting of the used source signal.
100.0%
0.0…100.0%
Value in percent of the maximum frequency. See the example for parameter
1104 REF1 MIN for correspondence to the source signal limits.
1109 LOC REF SOURCE
Selects the source for the local reference.
0 = POT
0 = POT
Potentiometer
1 = KEYPAD
Control panel
