2.6.2 Mechanically restricting the working range of axis 1
General
The working range of axis 1 is limited by fixed mechanical stops and adjustment
of the system parameter configuration. The working range can be reduced by
adding additional mechanical stops giving 7.5 or 15 graduation, between 22.5°
and 135° in both directions.
Mechanical stops, axis 1

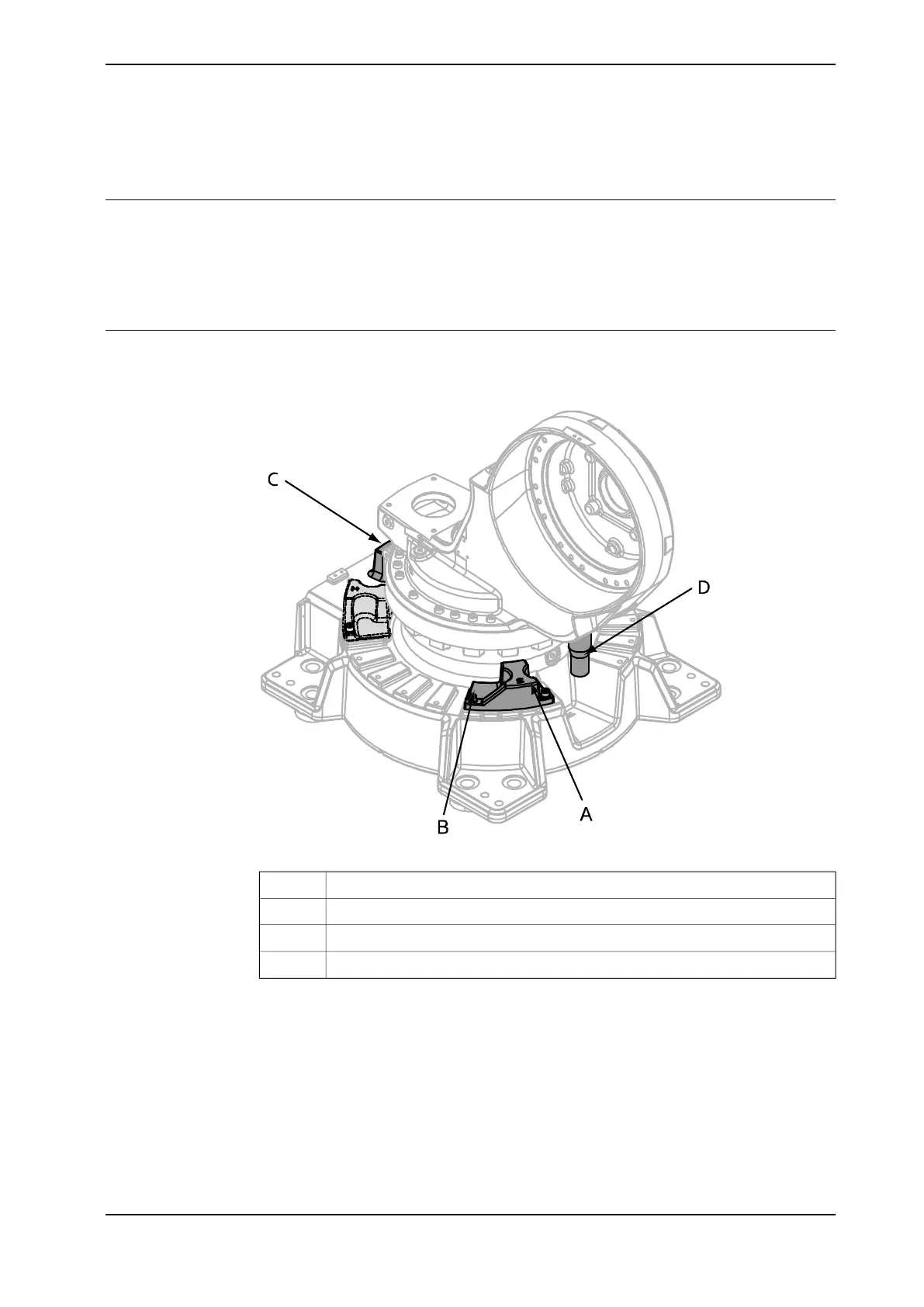

The illustration shows the mounting position of the stop pin and one of the additional
mechanical stops available for axis 1.
xx0600002938
Movable mechanical stopA
Attachment screw plus washer, M12 x 40 quality 12.9 (2 pcs)B
Fixed mechanical stopC
Mechanical stop pin axis 1D
Continues on next page
Product manual - IRB 6620 107
3HAC027151-001 Revision: T
© Copyright 2006-2018 ABB. All rights reserved.
2 Installation and commissioning
2.6.2 Mechanically restricting the working range of axis 1
