5.3 Updating revolution counters
Introduction
This section describes how to do a rough calibration of each manipulator axis by
updating the revolution counter for each axis, using the FlexPendant.
Revolution indicator
The IRB 6620/IRB 6620 LX (not Foundry version) is equipped with a revolution
indicator on axis 4.
Location

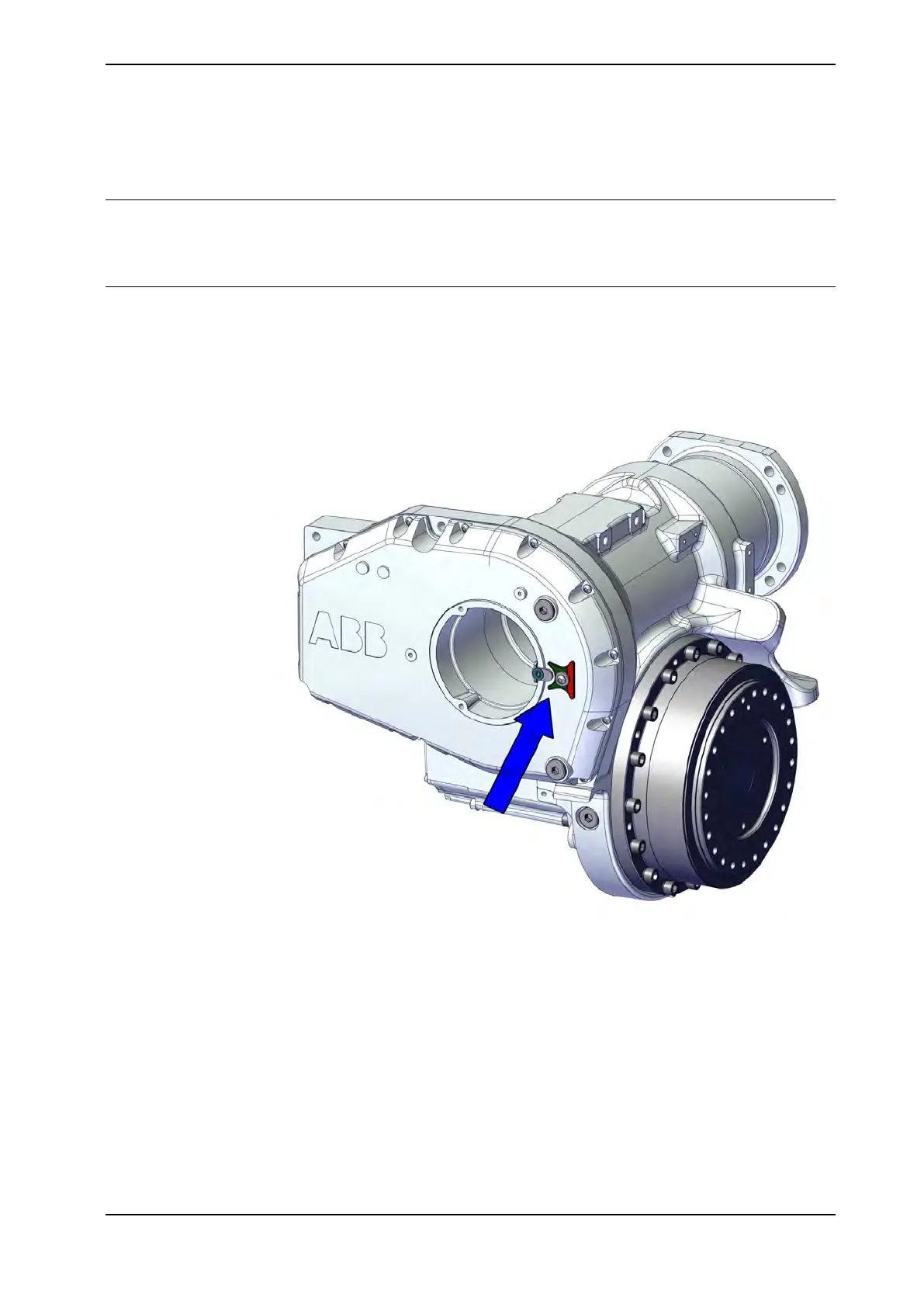

The revolution indicator is located as shown in figure.
xx1500002405
Function
Before doing an update of the revolution counter, the revolution indicator must be
checked.
The green side of the indicator shall point towards axis centre.
The indicatior shows if axis 4 is turned correctly or has been rotated more than
±360°. If the indicator has been turned, the robot has to be jogged manually in the
Continues on next page
Product manual - IRB 6620 313
3HAC027151-001 Revision: T
© Copyright 2006-2018 ABB. All rights reserved.
5 Calibration
5.3 Updating revolution counters
