3.3.5 Inspecting the oil level in axis-5 gearbox
Location of gearbox

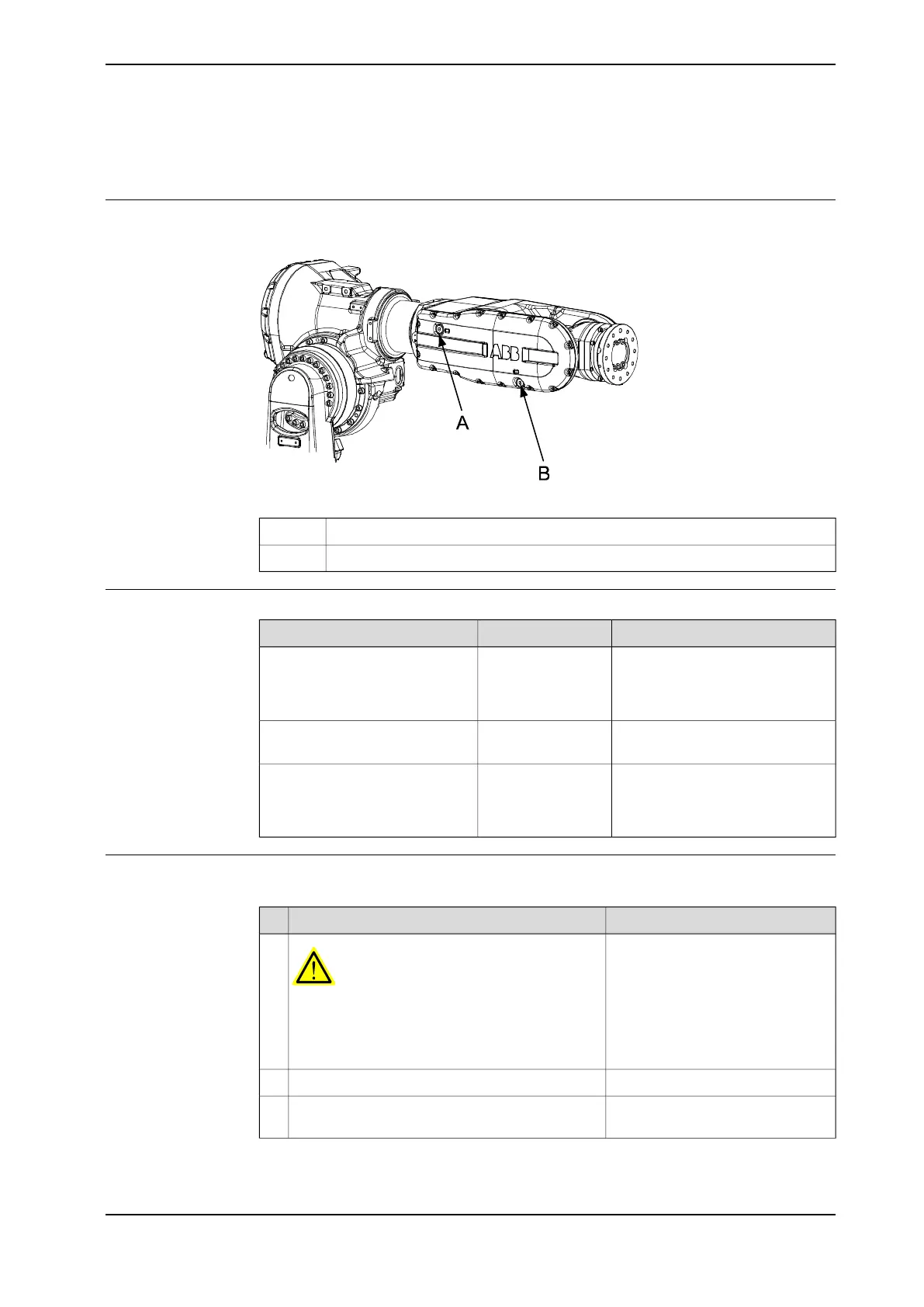

The axis-5 gearbox is located in the wrist unit as shown in the figure.
xx0600002963
Oil plug, filling and inspectionA
Oil plug, drainingB
Required equipment
NoteArt. no.Equipment etc.
See Type and
amount of oil in
gearboxes on
page 149.
Lubricating oil
Content is defined in section
Standard tools on page 346.
-Standard toolkit
These procedures include refer-
ences to the tools required.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
Inspecting the oil level in axis-5 gearbox
Use this procedure to inspect the oil level in the axis-5 gearbox.
NoteAction
WARNING
Handling gearbox oil involves several safety risks.
Before proceeding, please read the safety inform-
ation in the section Safety risks during work with
gearbox lubricants (oil or grease) on page 37.
1
Move the robot upper arm to a horizontal position.2
Turn the wrist unit in a way that both oil plugs are
facing upwards.
3
Continues on next page
Product manual - IRB 6620 129
3HAC027151-001 Revision: T
© Copyright 2006-2018 ABB. All rights reserved.
3 Maintenance
3.3.5 Inspecting the oil level in axis-5 gearbox
