3.3.9 Inspecting the axis-1 mechanical stop pin
WARNING
Mechanical stop pin can not be fitted onto robot if option 810-1 Electronic Position
Switch is used.
WARNING
Mechanical stop pin can not be fitted onto robot if option 561-1 Extended work
range axis 1 is used.
Location of mechanical stop pin

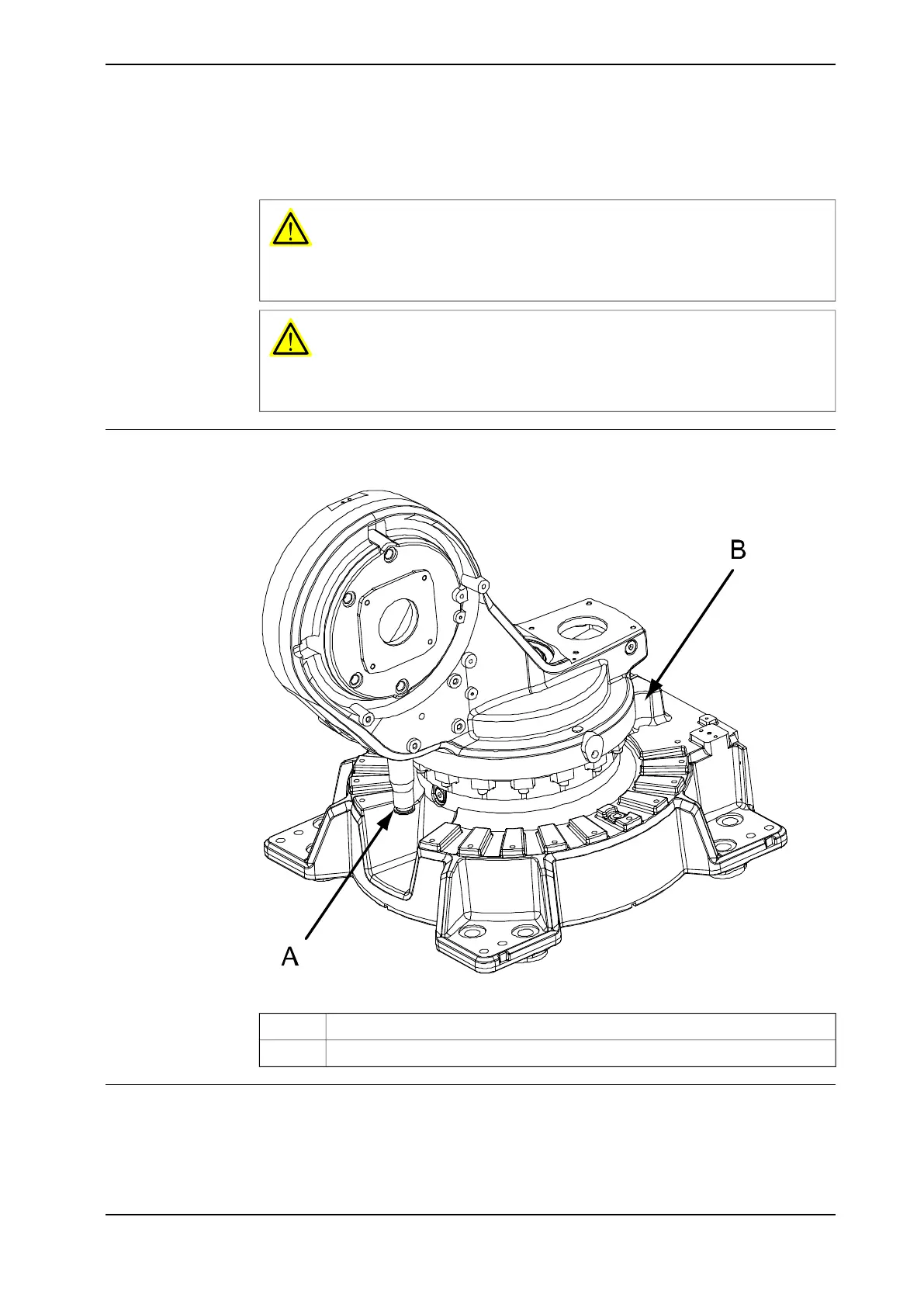

The axis-1 mechanical stop is located as shown in the figure.
xx0600002972
Mechanical stop pin, axis 1A
Fixed mechanical stopB
Required equipment
Visual inspection, no tools are required.
Continues on next page
Product manual - IRB 6620 139
3HAC027151-001 Revision: T
© Copyright 2006-2018 ABB. All rights reserved.
3 Maintenance
3.3.9 Inspecting the axis-1 mechanical stop pin
