ACUTRONIC fabian HFO User Manual

Accessories and options 107
fabian HFO | SW 5.1.x
Ref: 113003.EN / Date 2020-02-10
12.2.2 Connect the etCO
2
module to fabian HFO
12.2.2.1 Connect to fabian HFO with main board version 3.x or 4.x
To connect any of the compatible etCO
2
module to the fabian HFO with main board 3.x or
higher (Figure 7),
1. Attach the 7-pin Male Binder Connector from the CO2 module (Figure 8) to the respective
Female Binder Connector at the back of the fabian HFO labelled CO2 (Figure 9).
2. Please make sure the extrusion on the Male Binder Connector slots in at the bottom of the
female connector.
3. Fasten the connection by turning the Binder connector ring clockwise.

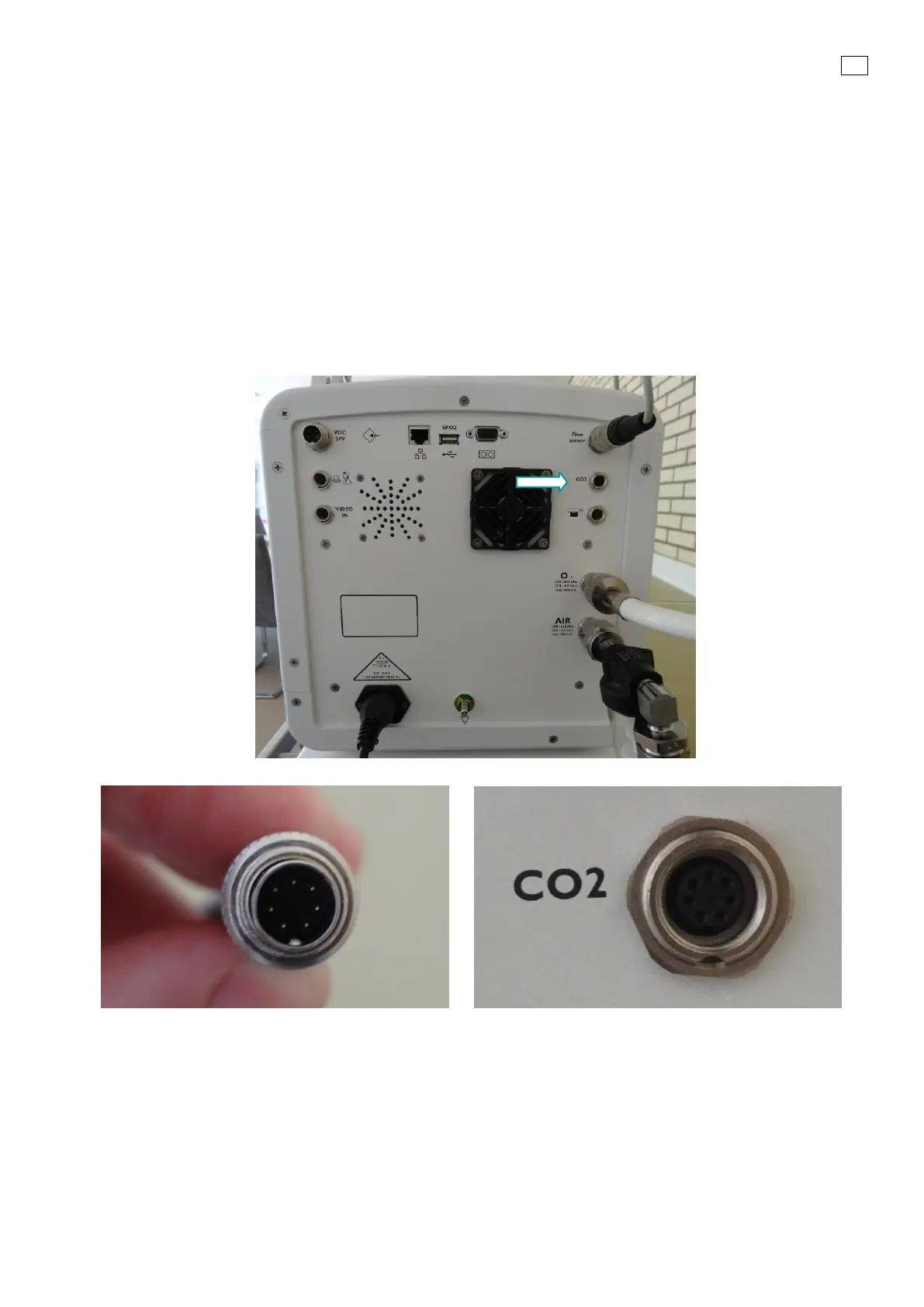

Figure 7 - Rear View of fabian HFO (main board 3.x and higher). Arrow points towards CO2 port.
Figure 8 - Male connector
Figure 9 - Female connector
