ACUTRONIC fabian HFO User Manual

System overview 17
fabian HFO | SW 5.1.x
Ref: 113003.EN / Date 2020-02-10
#

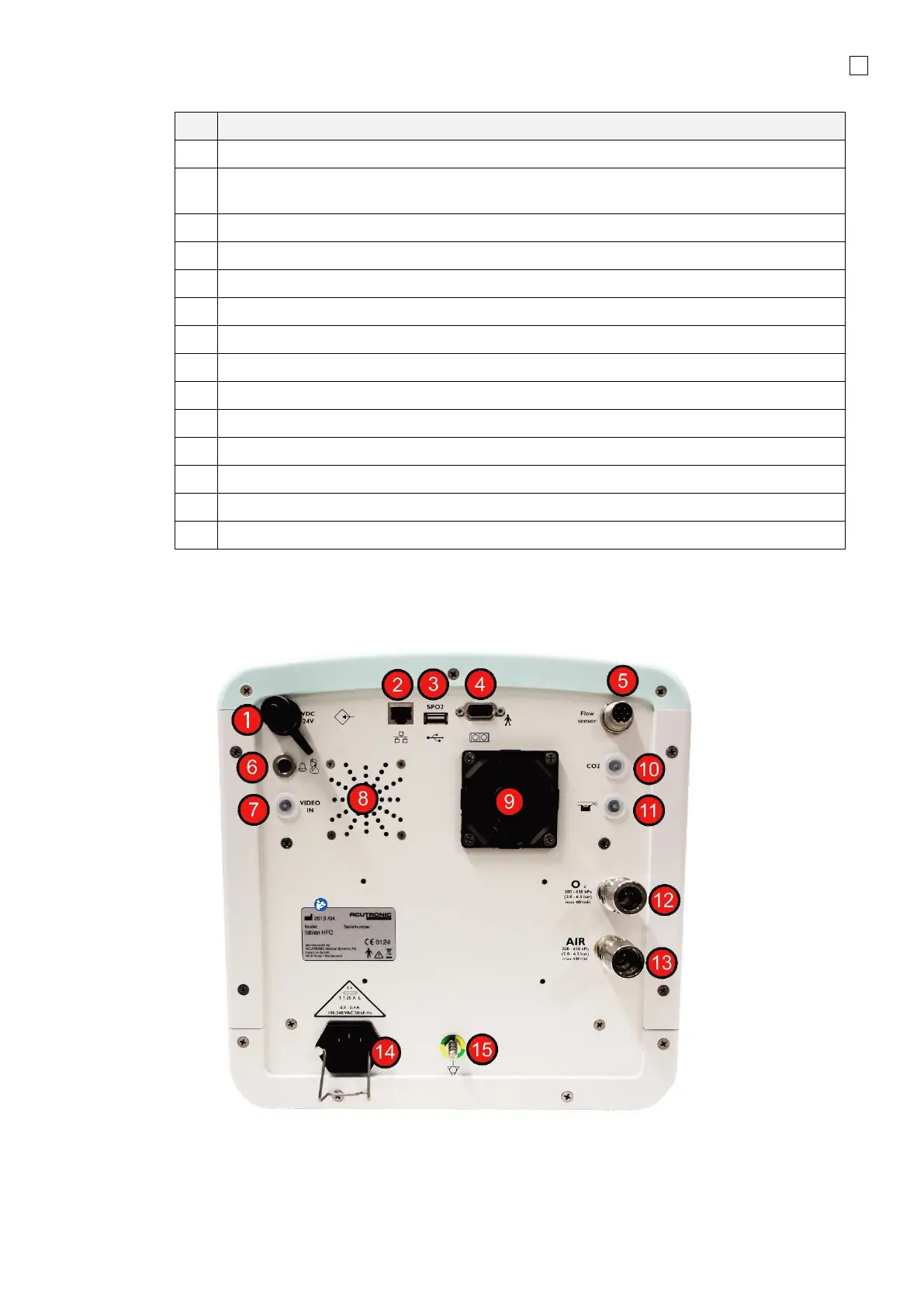

Description
1
HDMI connector
2
USB connection for connection of a USB powered nebulizer. Also available when not in
clinical use for data output and software update.
3
Network connection for data management (disabled)
4
RS232 interface, service, PDMS
5
Flow sensor connector
6
Nurse Call Connector, max switching voltage 30V DC
7
Loudspeaker (Audio)
8
Fan
9
Connector for etCO
2
module (optional)
10
Connector for SpO
2
module
11
Mains connection with fuse holder
12
Terminal stud for potential equalization
13
Connection for compressed air supply 2.0 – 6.0 bar / max 40 l/min
14
Connection for oxygen “O
2
” supply 2.0 – 6.0 bar / max 40 l/min
