ACUTRONIC fabian HFO User Manual

Accessories and options 115
fabian HFO | SW 5.1.x
Ref: 113003.EN / Date 2020-02-10
12.2.4 Respironics
®
etCO
2
sensors
When using either of the following sensors from Respironics (Philips) you need to select the
Respironics option in the etCO
2
menu (Figure 16).

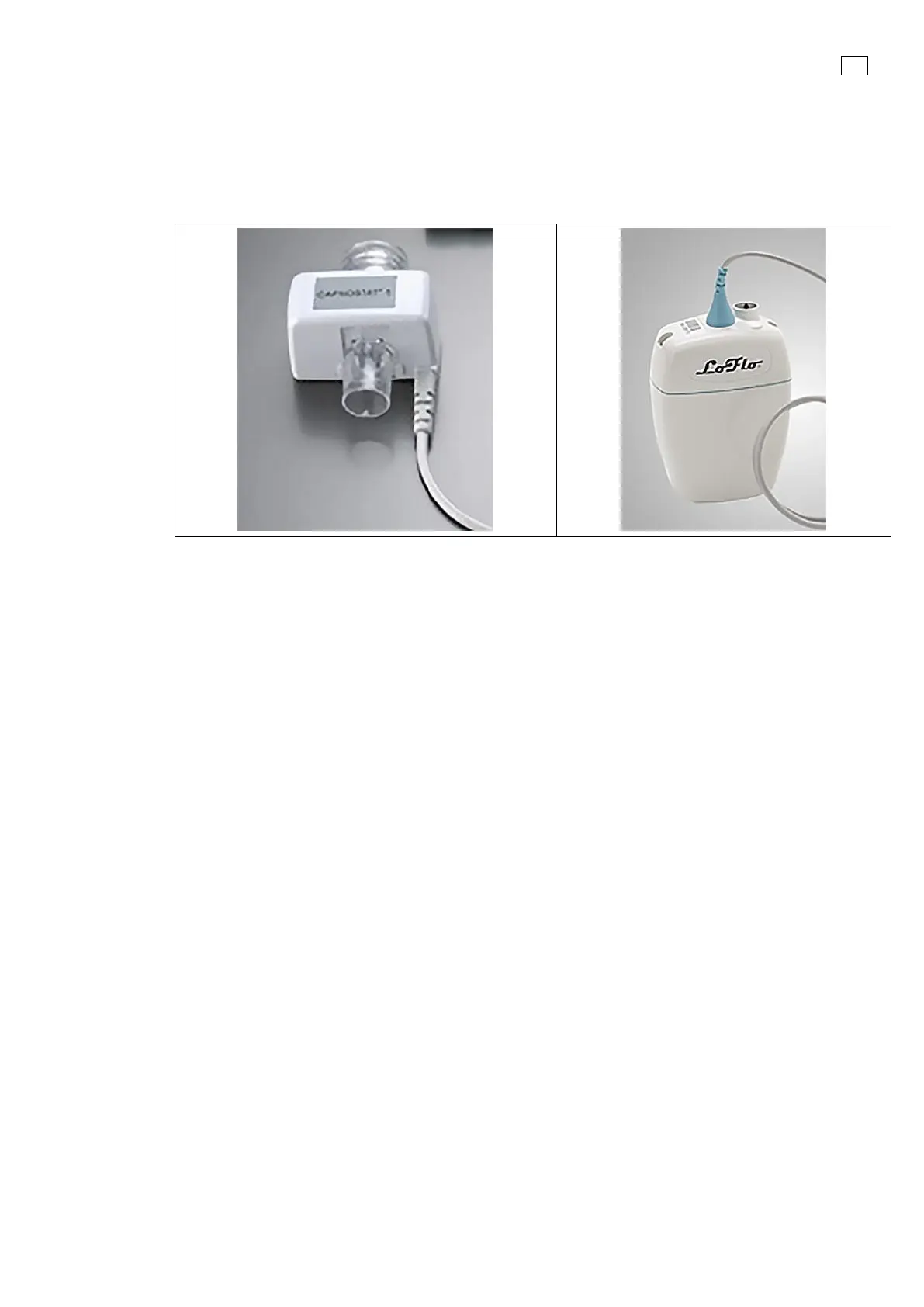

Figure 19 - Capnostat
®
5 Mainstream EtCO
2
Sensor
Figure 20 - LoFlo Sidestream EtCO
2
Sensor
• Capnostat 5 Mainstream (Figure 19) or
• LoFlo Sidestream (Figure 20) EtCO
2
12.2.4.1 Respironics messages
• "Check Airway Adapter"
• "Sensor Over Temperature"
• "Check Sampling Line"
• "Sensor state: ok"
• "CO
2
out of Range"
• "Sensor Warm Up"
• "No Message"
• "Standby"
• "Sensor Faulty"
• "Zero in Progress"
• "Sensor off"
• "Zero Required”
