12.4 PRICO
12.4.1 General information on PRICO
Pulse oximetry is a continuous and non-invasive method of measuring the level of arterial oxygen
saturation in blood. The measurement is taken by placing a sensor on a patient, usually on the
fingertip for pediatric, adult patients, and the hand or foot for neonates. The sensor is connected to
the fabian with a patient cable. The sensor collects signal data from the patient and sends it to the
ventilator. The fabian displays the calculated data additional to the ventilation data in four ways:
1. As a Percent value (%) for arterial oxygen saturation (SpO
2
),
2. As a Pulse Rate (b/min),
3. The Perfusion Index (PI) and
4. As a plethysmographic waveform

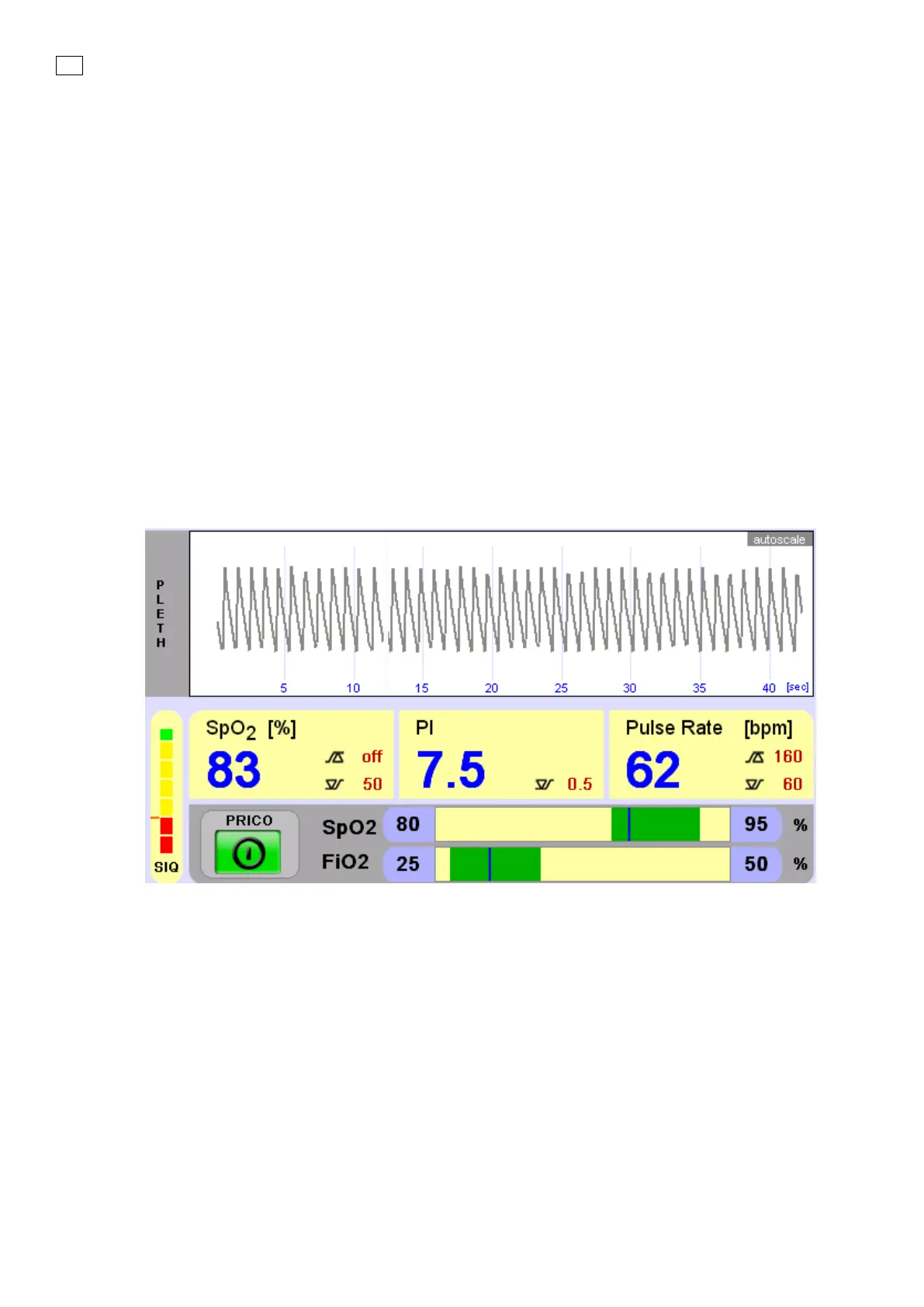

The following figure shows the general monitoring view.
12.4.1.1 USB HPLPM (for devices with SN till AI-01500 and AL-00400)
The USB HPLPM is a patient cable with an integral Masimo MSLP-1 Board contained in an
enclosure that connects to Masimo Pulse Oximetry sensors and provides functional oxygen
saturation (SpO
2
), pulse rate (PR), perfusion index (PI), Plethysmograph Waveforms, and other
information through a serial digital interface.
The USB HPLPM contains a 9-pin (DB9) LNCS-compatible sensor connector with latch at the sensor
end, and a standard USB Type A connector at the opposite end so that it is compatible with the USB
device port on the rear panel of the fabian ventilator. The total length of the USB HPLPM, patient
cable, and sensor cannot exceed 5 meters.
