Rockwell Automation Publication 2198-UM002G-EN-P - February 2019 147
Connect the Kinetix 5700 Drive System Chapter 5
Wire the Input Power Connector
The input power (IPD) connector applies to the 2198-Pxxx DC-bus power
supply and 2198-RPxxx regenerative bus supply.

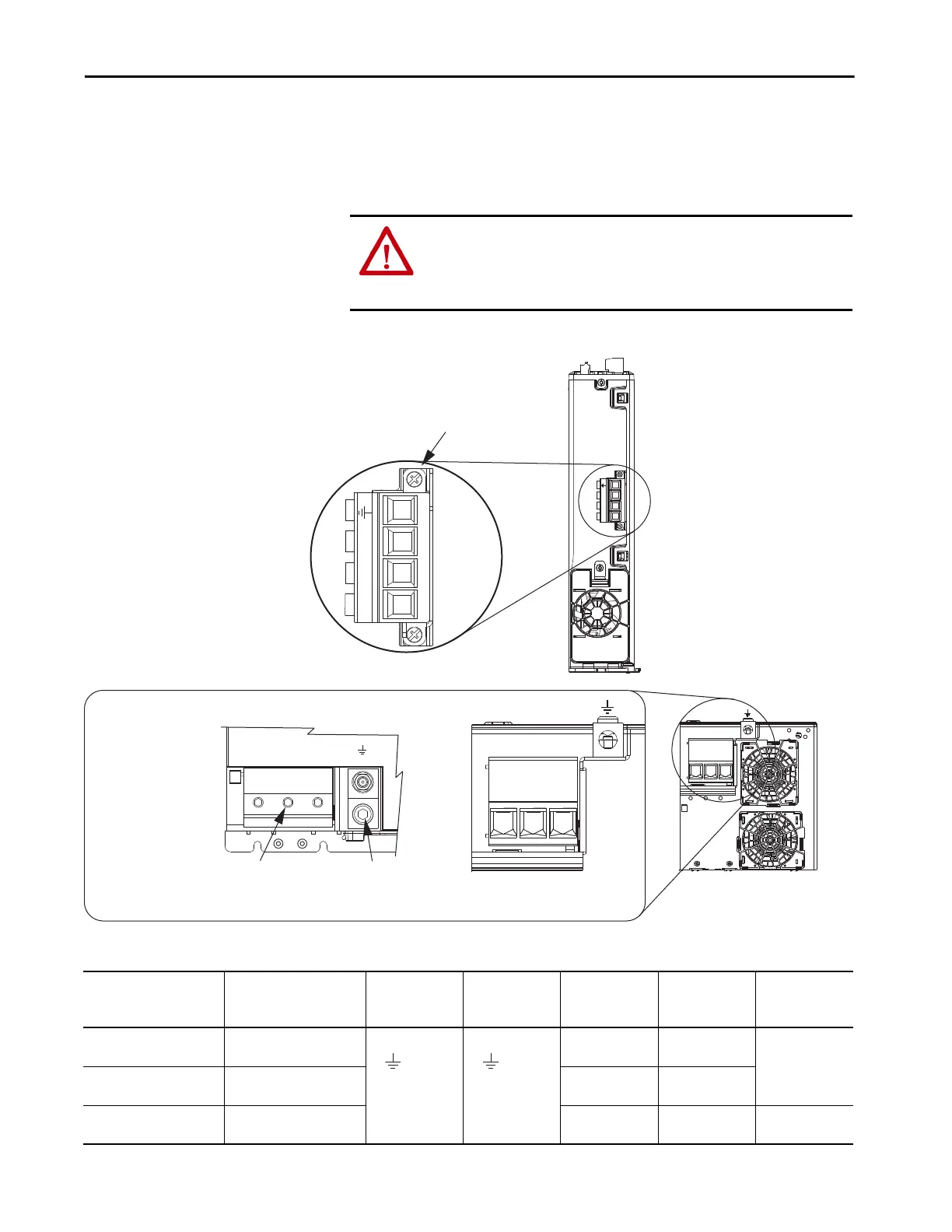

Figure 95 - IPD Connector Wiring
Table 72 - Input Power (IPD) Connector Specifications
ATTENTION: Make sure the input power connections are correct when
wiring the IPD connector plug. Insert the plug into the module connector
and tighten screws to the specified torque value. Incorrect wiring/polarity or
loose wiring can cause damage to equipment.
Input Power (IPD) Connector Plug
2198-Pxxx DC-bus Power Supply or
2198-RP088 and 2198-RP200
Regenerative Bus Supply, Bottom View
(DC-bus power supply is shown)
Connector Screws (2)
0.8 N•m (7.1 lb•in)
L1 L2 L3
L1 L2 L3
2
L1 L2 L3
21mm (4 AWG-250 kcmil)
15-20 Nm (132-177 lbin)
2198-RP263 and 2198-RP312
Regenerative Bus Supply,
Bottom View
Front View
Bottom View
Input Power Ground Terminal
Screw: 8 mm Hex Driver
Torque: 5.6 N•m (50 lb•in)
Input Power (IPD) Connector
Screws (3x): 6 mm Hex Driver
Torque: 15…20 N•m (132…177 lb•in)
The IPD connector on 2198-RP263
and 2198-RP312 power supplies is
not removable.
Regenerative Bus Supply
Cat. No.
DC-bus Power Supply
Cat. No.
Pin Signal
Recommended
Wire Size
mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
N•m (lb•in)
2198-RP088
2198-P031
2198-P070
6…10
(10…8)
10.0 (0.39)
0.8 (7.1)
2198-RP200
2198-P141
2198-P208
10…35
(8…2)
20.0 (0.79)
2198-RP263
2198-RP312
–
21.1…120
(4…250 kcmil)
27.0 (1.06)
15…20
(132…177)
To Next Page
