Rockwell Automation Publication 2198-UM002G-EN-P - February 2019 373

Interconnect Diagrams Appendix A

System Block Diagrams

This section provides block diagrams of the Kinetix 5700 drive modules.

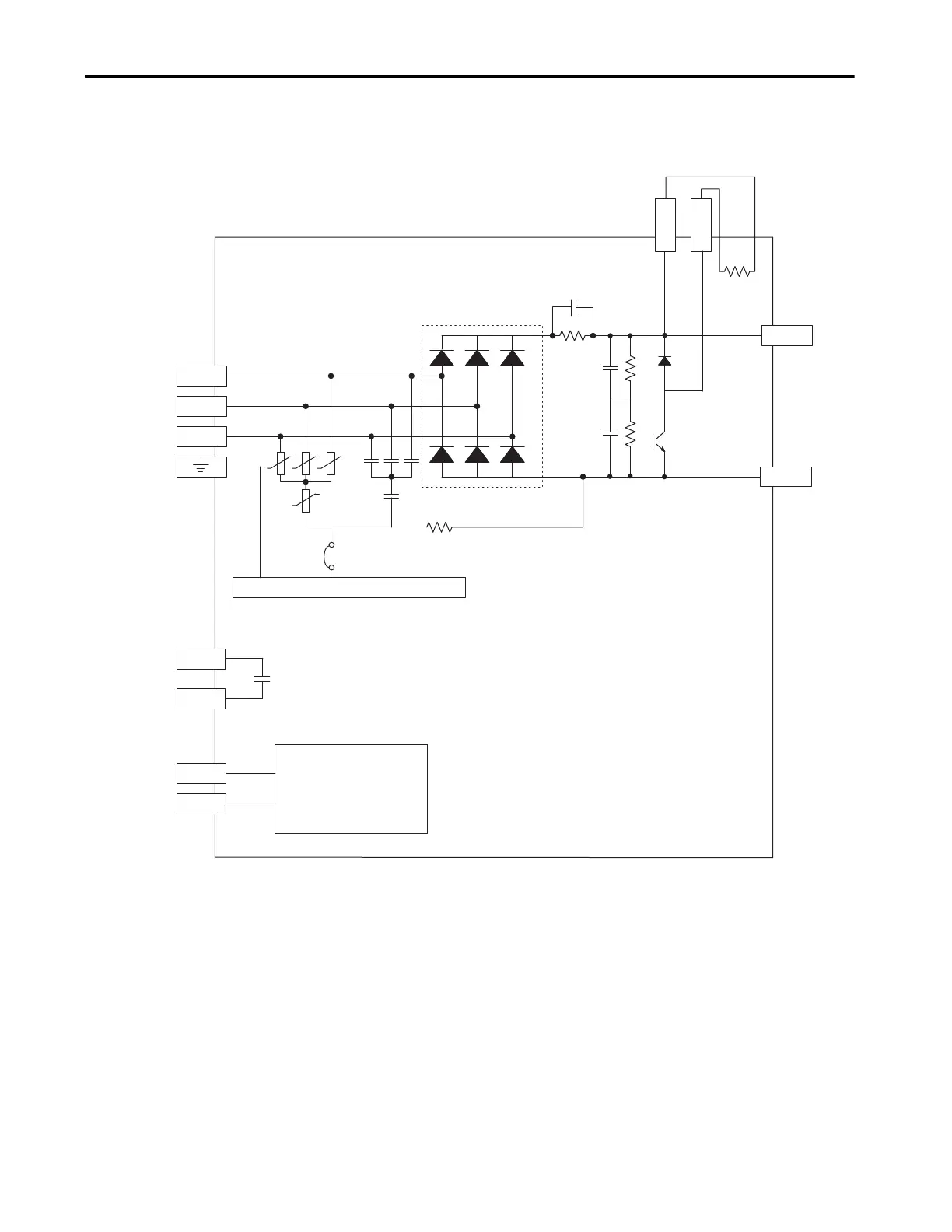

Figure 199 - DC-bus Power Supply Block Diagram

(1) Ground screw in the installed (default) configuration.

DC+

DC–

DC+

24V+

24V–

CONT EN–

CONT EN+

Three-phase

Input Power

(IDP) Connector

24V Control Power

(CP) Connector

Ground Screw

(1)

Control

Chassis

Contactor Enable

(CED) Connector

DC Bus Power

(DC) Connector

Shunt Resister

(RC) Connector

Internal

Shunt

Resistor
