414 Rockwell Automation Publication 2198-UM002G-EN-P - February 2019

Appendix E Motor Control Feature Support

Enable the Stability Control Feature

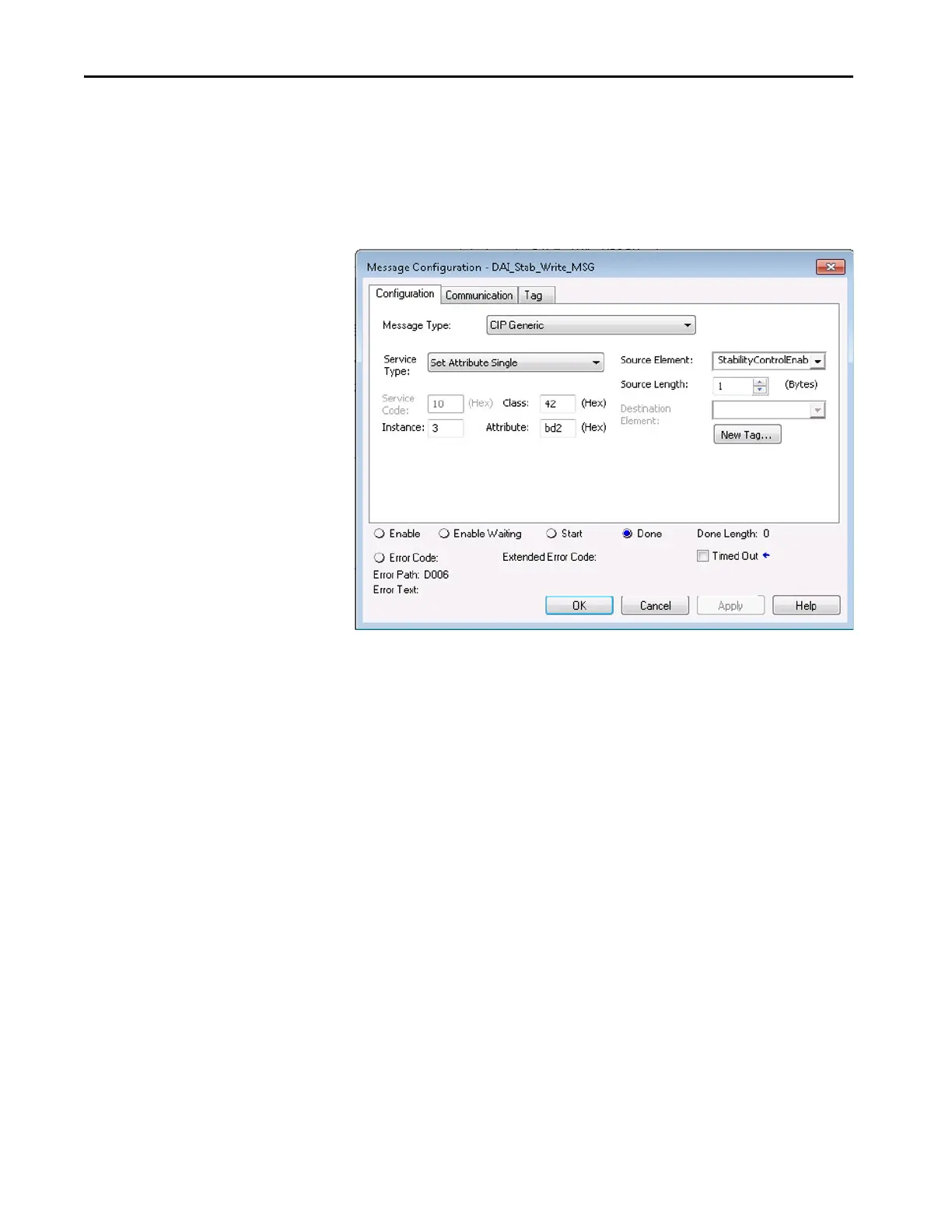

In this example, a Message Configuration (MSG) instruction is configured to

enable the StabilityControl attribute for axis 3 of a dual-axis inverter. The

Instance field is used to direct the message to the proper axis. For single-axis

inverters the value of 1 is used for Instance.
