Configure and Start the Kinetix 5700 Drive System Chapter 6

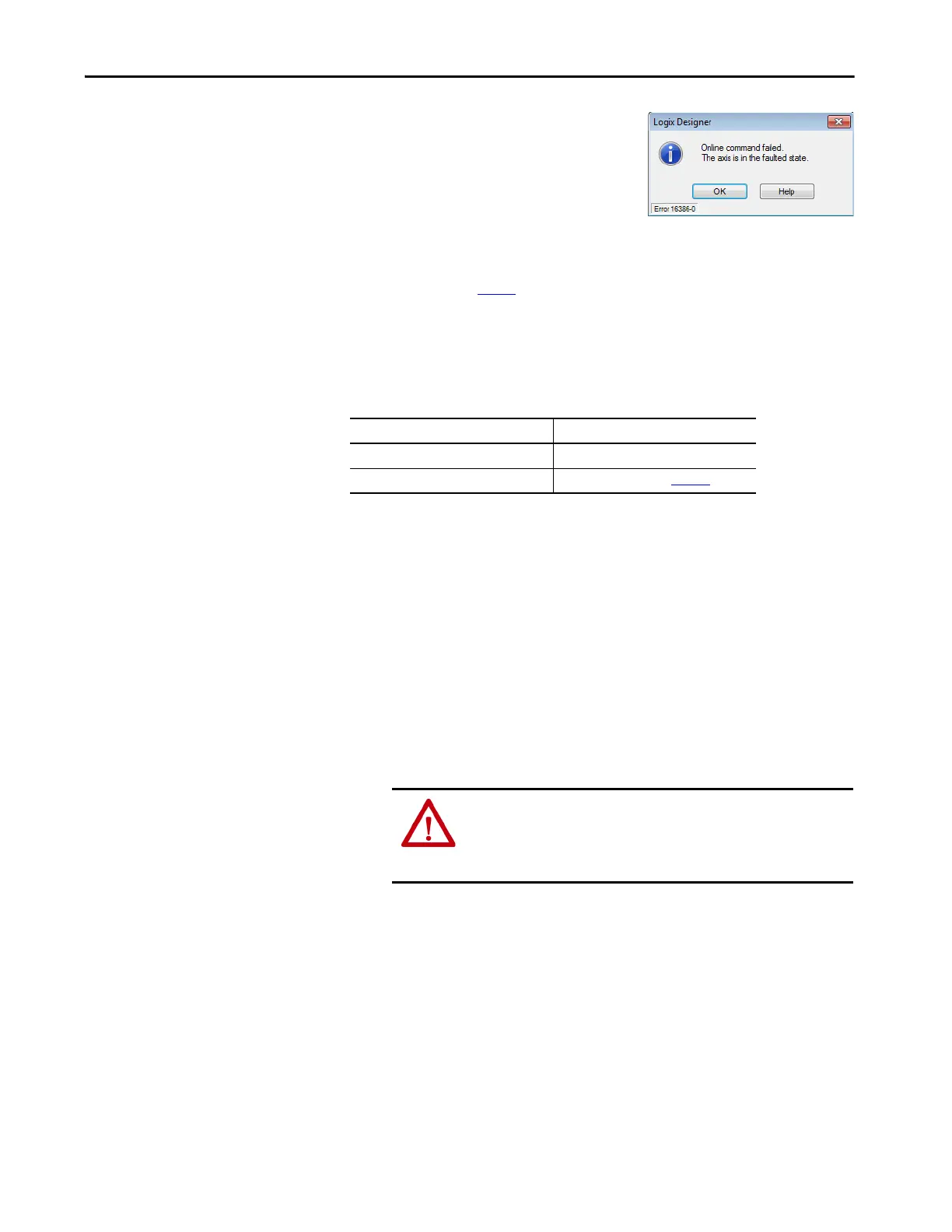

10. If the test fails, this dialog box
appears.
a. Click OK.
b. Verify the DC bus voltage.
c. Verify unit values entered in the
Scaling category.
d. Verify the motor power and feedback wiring.
e. Return to step 5
and run the test again.
Tune the Axes
Choose the tuning procedure best suited for your motor type.
Tune Permanent Magnet Motors
The load observer feature provides high-performance motion control without
having to manually tune your axis. Using load observer with a default set of
gains can yield high-performance right out of the box. Most of the time, there is
no need to perform an auto-tune procedure or further optimize gain settings.
Follow these steps to configure the drive for high-performance by using the
load observer feature.
1. Verify that the load is connected.
Re-attach the load if it was disconnected for the Hookup Test.
2. Click the Autotune category in the Axis Properties dialog box.
a. From the pull-down menus for Application Type, Loop Response,
and Load Coupling, choose Custom, Medium, and Rigid settings,
respectively.
Motor Type Go directly to
Permanent magnet (PM) Tune Permanent Magnet Motors
Induction Tune Induction Motors on page 272
ATTENTION: If the drive has not been enabled before (new
installation), verify that you have safeguards in place to safely
remove power from the drive in the event of an unstable situation
where the drive can produce undesired motion.
To Next Page
