Publication 1734-UM014A-EN-P - November 2010
92 Adapter Web Dialogs
1. Click Identity from the tab at the top of the page or panel on the left.

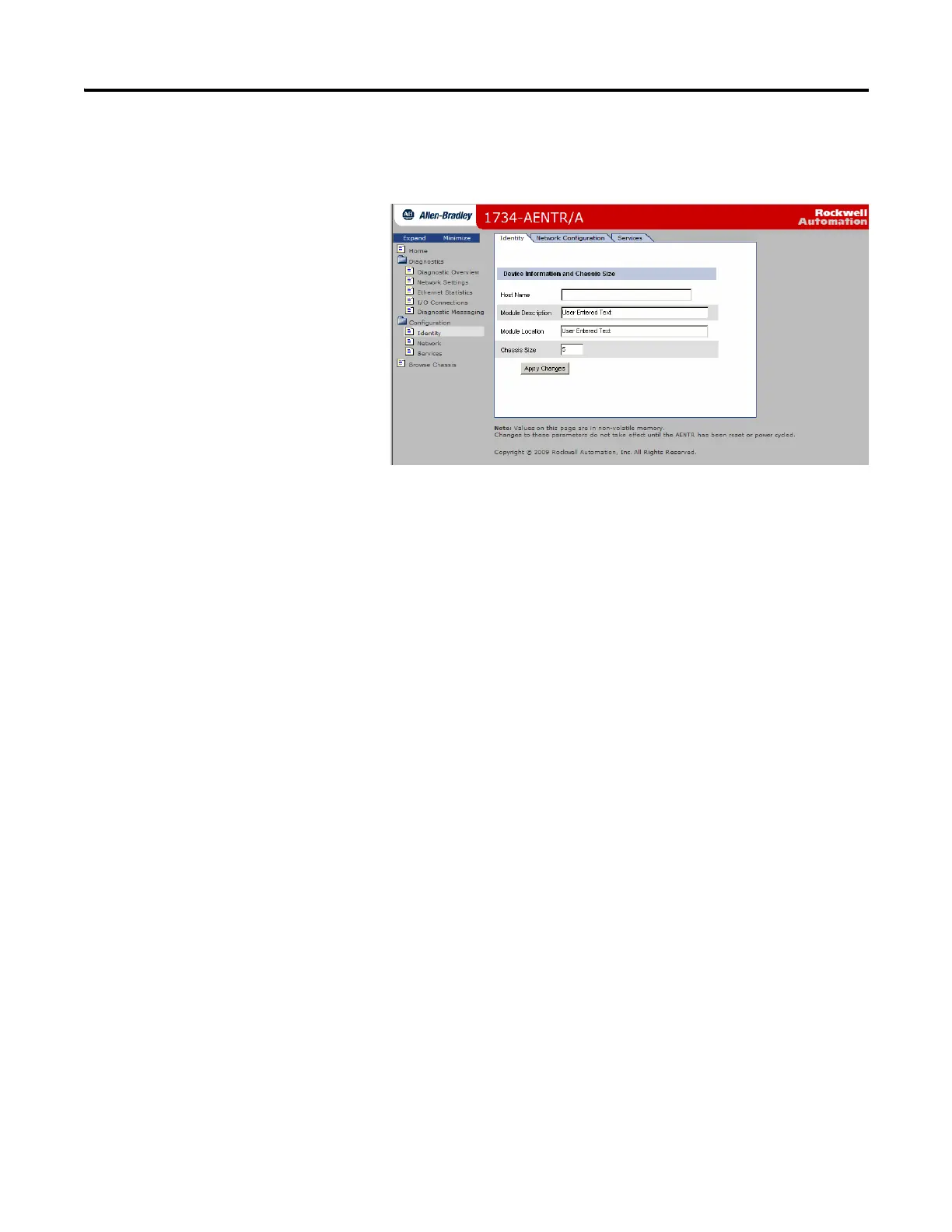

The Identity page opens
2. From the Identity page, complete entries for the following, noting that
the description and location help you identify where modules are in the
facility:
• Host Name – the name a Domain Name Server uses to resolve this
adapter’s IP address
•Module Description
• Module Location
• Chassis Size - the value that shows the number of I/O modules plus
the adapter. This value must match the number of I/O modules plus
1 for the adapter before any I/O connections are allowed.
3. Click Apply Changes to save the modified values.
Use the Network Configuration Page
To use the Network Configuration page to make entries for enabling or
disabling DHCP and setting TCP/IP parameters and Ethernet link operation,
follow this procedure.
