Publication 1734-UM014A-EN-P - November 2010
Configure the RSLinx Ethernet Communication Driver 101

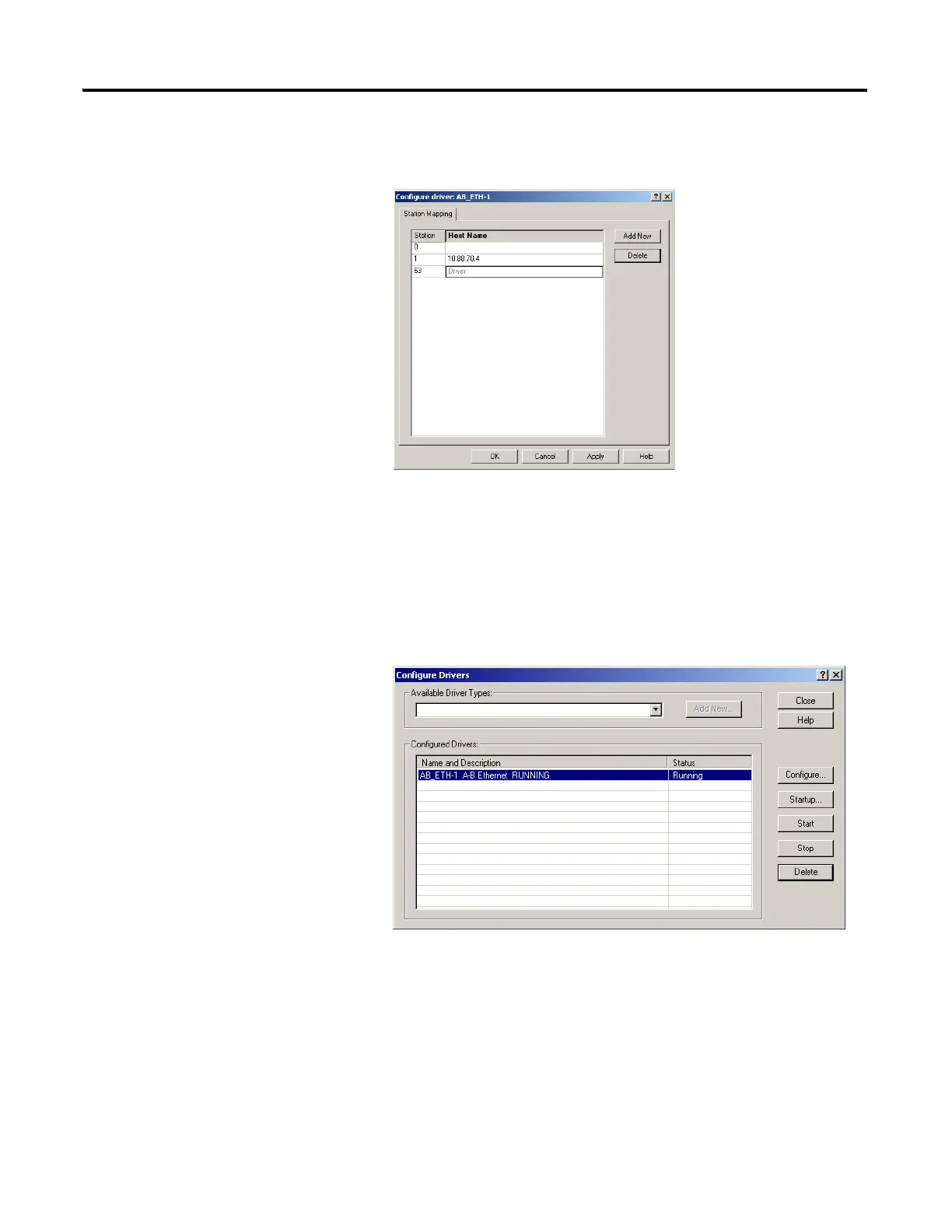

5. Click Add New and enter the IP address or Host Name of your
Ethernet device (for example, 10.88.70.4, Pump1).
6. Repeat step 6 for each additional Ethernet device you need to access.
7. After entering the IP addresses, click Apply.
8. Click OK to close the Configure driver dialog.
The new driver appears in the list of configured drivers. Your list
displays the drivers you configured on your workstation.
9. Close the RSLinx software
.
Configure the AB_ETH/IP
Driver
To configure the AB-ETHIP Ethernet communication driver, perform the
following steps.
1. Start the RSLinx software.
