Publication 1734-UM014A-EN-P - November 2010
Configure the Adapter for Direct Connection in RSLogix 5000 Software 43
3. Choose Set Project Path.
4. Choose Download.

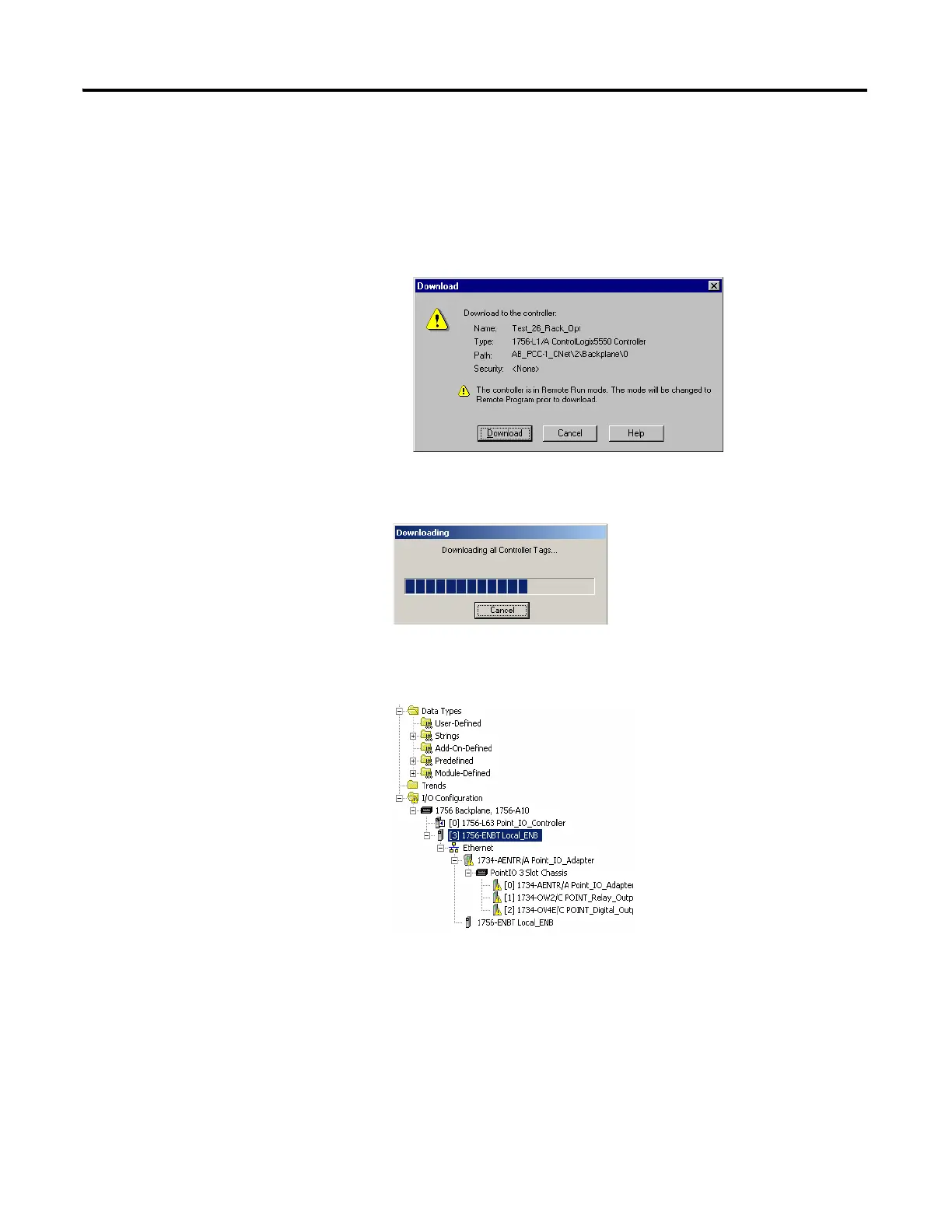

The Download dialog opens with a reminder of the following.
• The controller is in Remote Run mode.
• The mode changes to Remote Program prior to download.
5. From the Download dialog, choose Download
The RSLogix 5000 software dialog opens.
6. Notice that the 1756-ENBT Bridge is now online.
If yellow triangles are present, see the following section.
Verify the Module Chassis
Size
You have now built the I/O tree in the RSLogix 5000 software, and the
RSLogix 5000 software used the chassis size from the 1734-AENTR
General tab.
Now you need to download this new chassis size value into the 1734-AENTR
adapter hardware. This procedure synchronizes the chassis size value from the
RSLogix 5000 software into the 1734-AENTR adapter hardware.
