Allen-Bradley POINT I/O User Manual

Publication 1734-UM014A-EN-P - November 2010

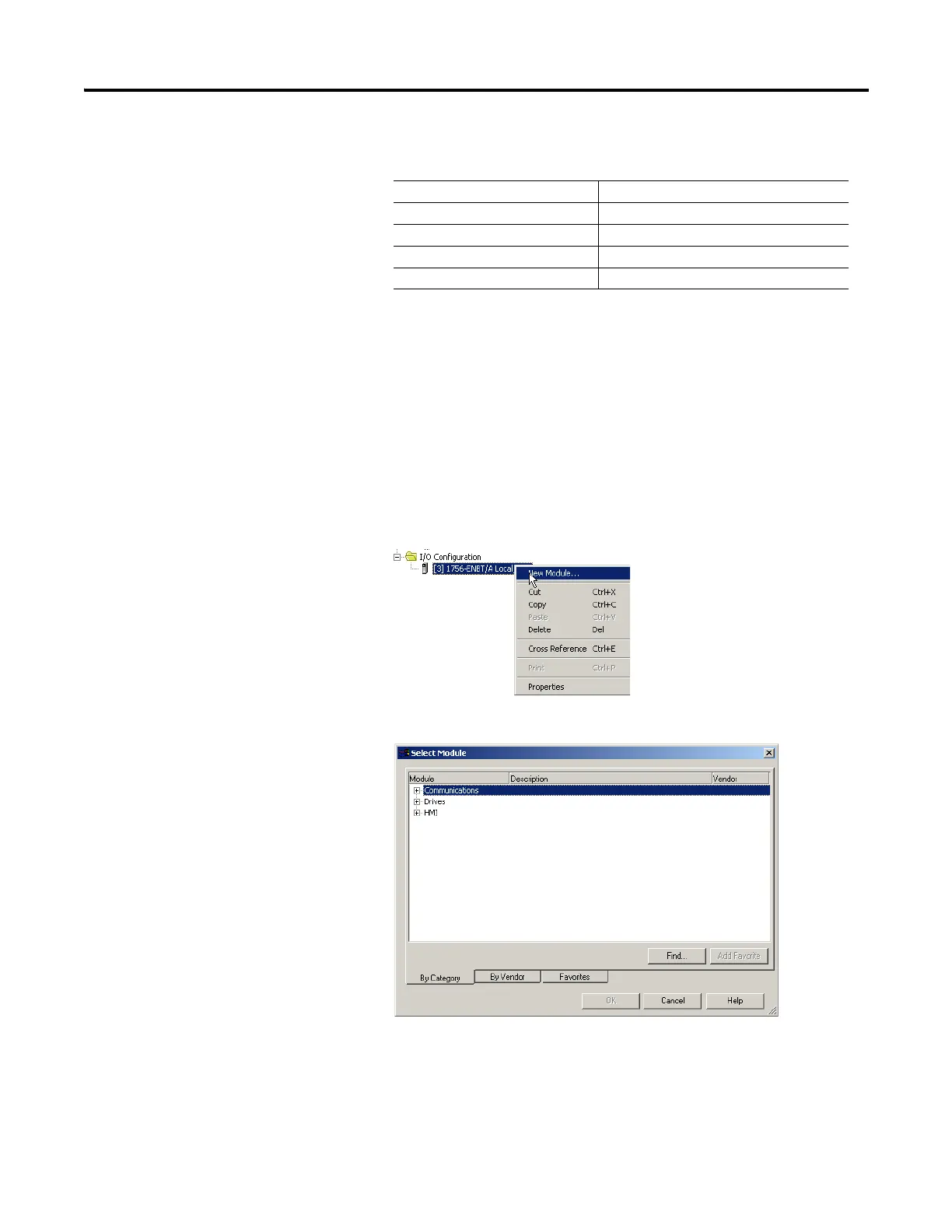

54 Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software
6. Enter values for Name, IP Address, Slot, Electronic Keying, and
Revision, noting we used the following values:
7. Click OK to accept the configuration.
Add the I/O Adapter to the I/O Configuration
Next, you must add the I/O adapter as a child of the local 1756-ENBT
module.
1. In the Project dialog, right-click the local 1756-ENBT module under the
I/O Configuration folder, and select New Module from the dialog.
The Select Module dialog opens.
Name Local_ENB
IP Address 10.88.70.4
Slot 3
Electronic Keying Compatible Module
Revision 3.1
