Allen-Bradley POINT I/O User Manual

Publication 1734-UM014A-EN-P - November 2010
36 Configure the Adapter for Direct Connection in RSLogix 5000 Software
Add the POINT I/O Modules to the I/O Configuration
You now add POINT I/O modules to the I/O Configuration List under the
adapter.
In this example, you add a 1734-OW2 relay output and a 1734-OV4E sink
output modules with standard configurations. Use these steps as a guide when
configuring different I/O modules for your system.
Add the Relay Output Module
1. Right-click the name of the remote adapter under the
I/O Configuration folder and select New Module.

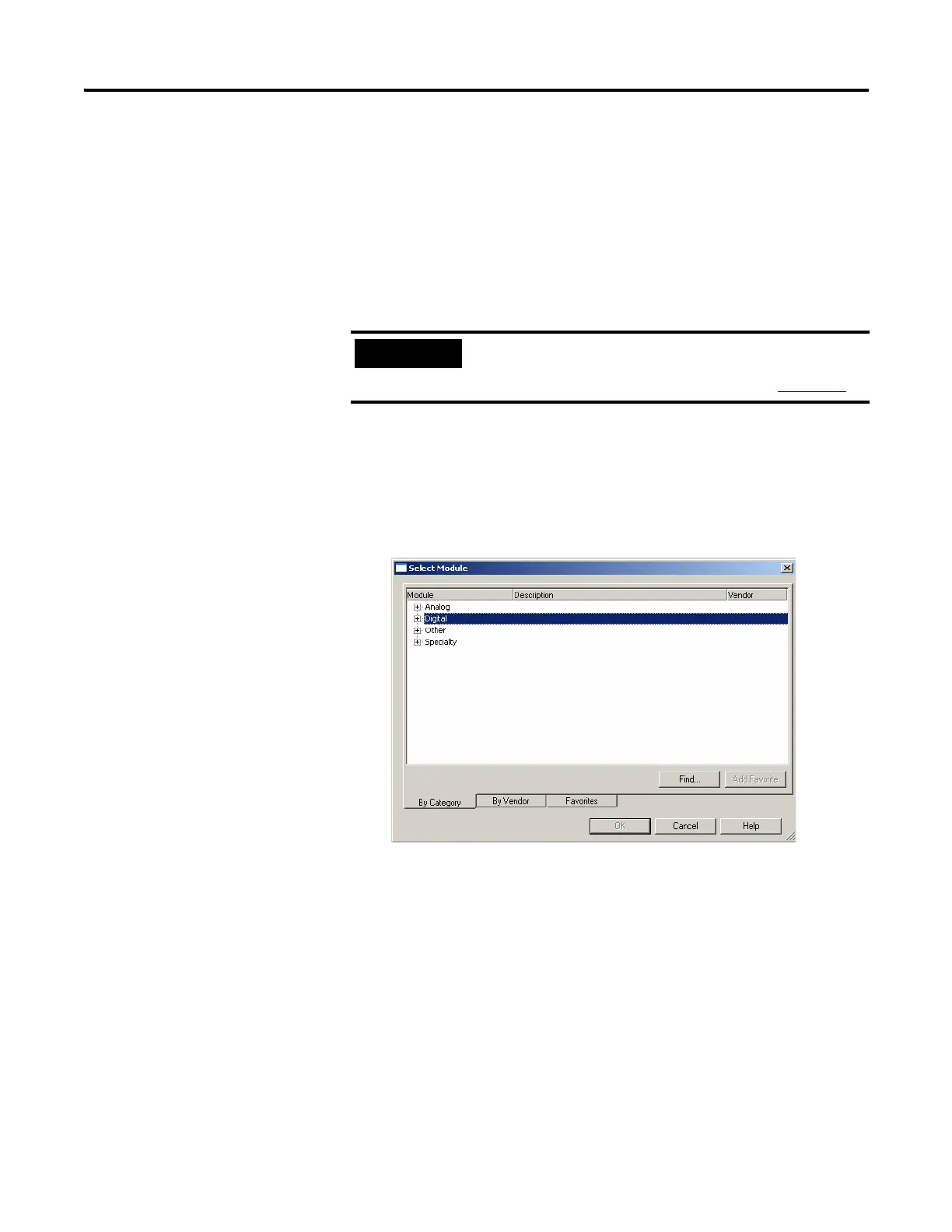

The Select Module dialog opens.
2. Expand the Digital tree.
TIP
This example application uses I/O module default
configurations. For more information, refer to the
POINT I/O Selection Guide, publication
1734-SG001.
