30 Configure the Adapter for Direct Connection in RSLogix 5000 Software
5. Select the correct Version, Chassis Type, and Slot number of the L63
controller, and the folder where you want to save the RSLogix 5000 file
(Create In). The Description is optional.
RSLogix 5000 software version 18 lets you enable redundancy. To use
redundancy in your system, check the Redundancy Enabled checkbox
when using the said version or later.
6. Click OK.
Configure the I/O
You now add the POINT I/O modules to the controller’s I/O configuration
performing these procedures:
• Add the local 1756-ENBT module to the I/O configuration.
• Add the 1734-AENTR adapter as a child of the 1756-ENBT module on
the Ethernet network.
• Add the POINT I/O modules as children of the AENTR adapter.
.
Add the Local EtherNet/IP Bridge to the I/O Configuration

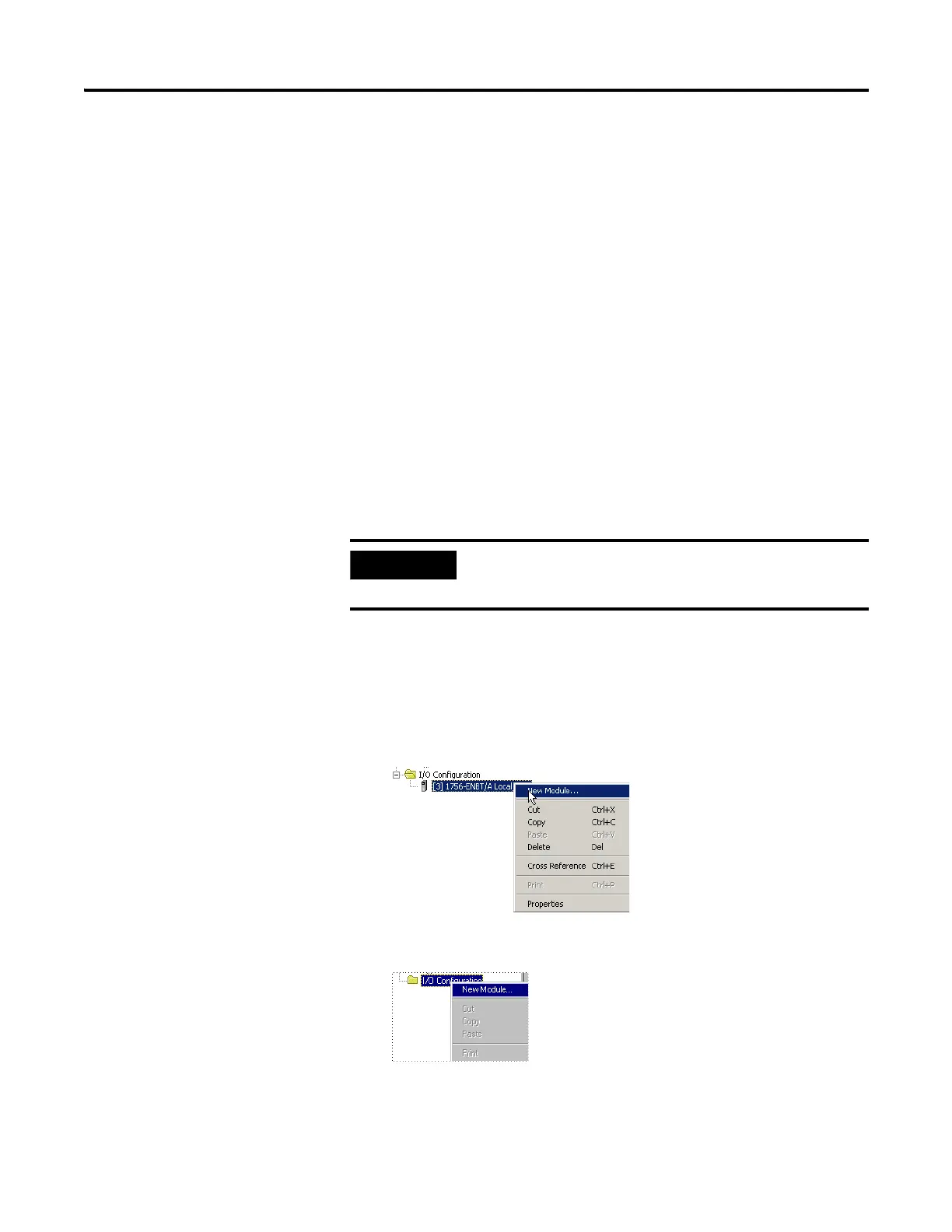

1. Select the I/O Configuration folder in the project dialog, and click the
right mouse button. A menu opens.
2. Choose New Module.
IMPORTANT
Click the Help button on the configuration dialogs shown in this
section if you need assistance in selecting and setting the
parameters.
