Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013 21
Chapter 3
HIM Components
This chapter describes the components of the HIM.
HIM Keypad
The keypad consists of soft keys, navigation and number keys, and single-function
keys, which are described in their respective subsections that follow.

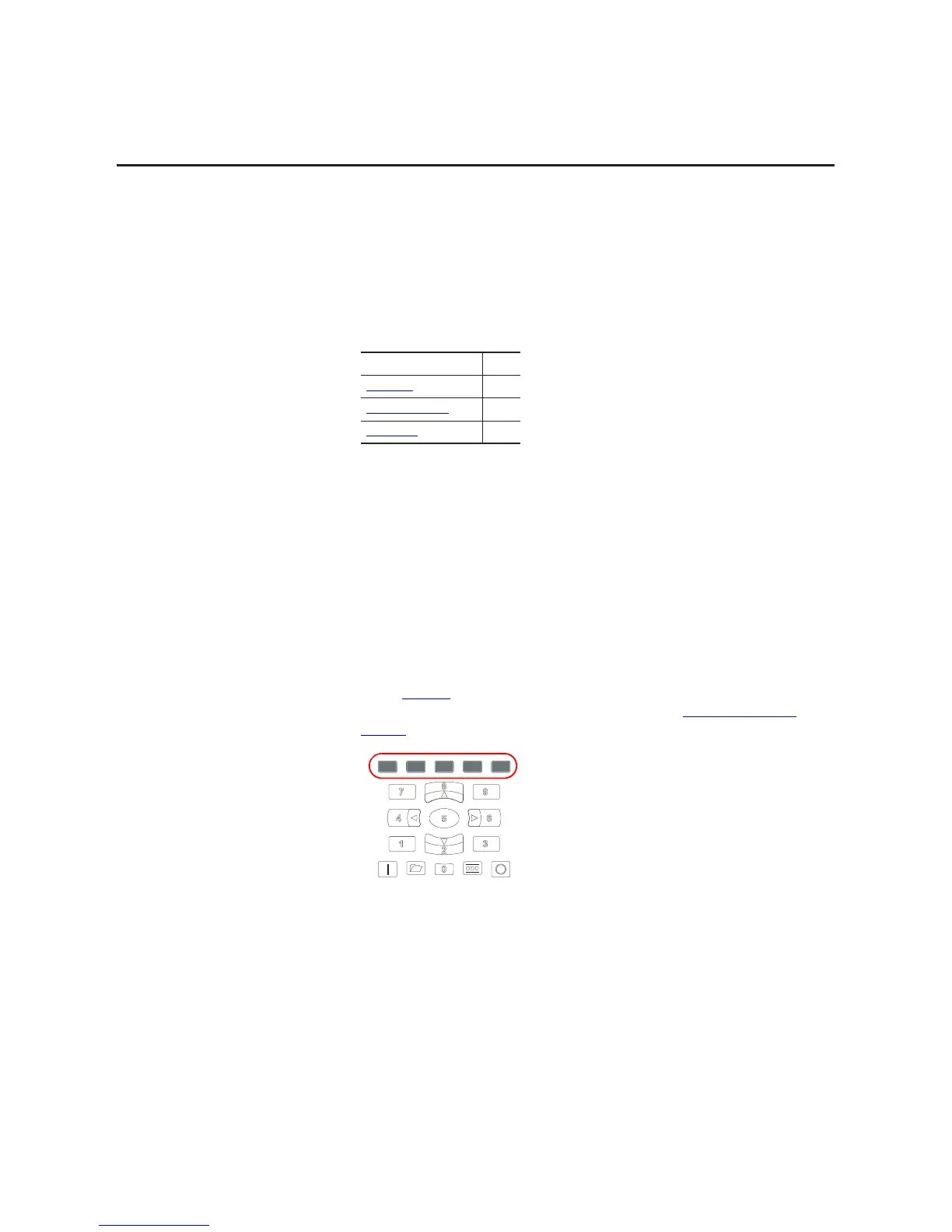

Soft Keys
The soft keys on the HIM are located at the top of the keypad and highlighted
below. Depending on the screen being displayed or the data entry mode being
used, a soft key name and its function changes. When a dynamic soft key (up to a
maximum of five keys) is active, its present function and corresponding Soft Key
Label (Figure 3
) is shown at the bottom of the HIM screen. For a list of possible
soft keys, their names, and corresponding functions, see Soft Key Labels
on
page 25.
Topic Page
HIM Keypad
21
LCD Display Elements
24
Main Screens
26
