40 Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013
Chapter 4 Using the HIM
Setting Display Flashing for
Fault Indication
Whenever a fault for the host drive or any of its connected peripherals is
detected, a pop-up Fault Display screen (see page 30
) appears. By default, only
the Status Bar flashes to alert the operator. However, you can change the flash
mode for the Fault Display screen to one of the following modes:
• Flash Bklite; selects the entire LCD screen to flash.
• Flash Status (default); selects only the Status Bar (item 1, Figure 3
) to flash.
• Flash None; selects no flashing for the Fault Display screen.
Follow these steps to change the flash mode for the Fault Display screen.
1. Access HIM Parameter 04 - [Fault Dspy Type] using either the Direct
Parameter Access method (page 42
) or Alternate Linear List method
(page 43
).
2. Press the EDIT soft key to display the Edit Fault Dspy Type pop-up box.
3. Use the and soft keys to select the desired flash mode. To delete an
erroneous entry, use the soft key.
4. Press the ENTER soft key to enter your selection and return to the
parameter screen.
(6&
(17(5
6WRSSHG
+]
$872
)
▲▼

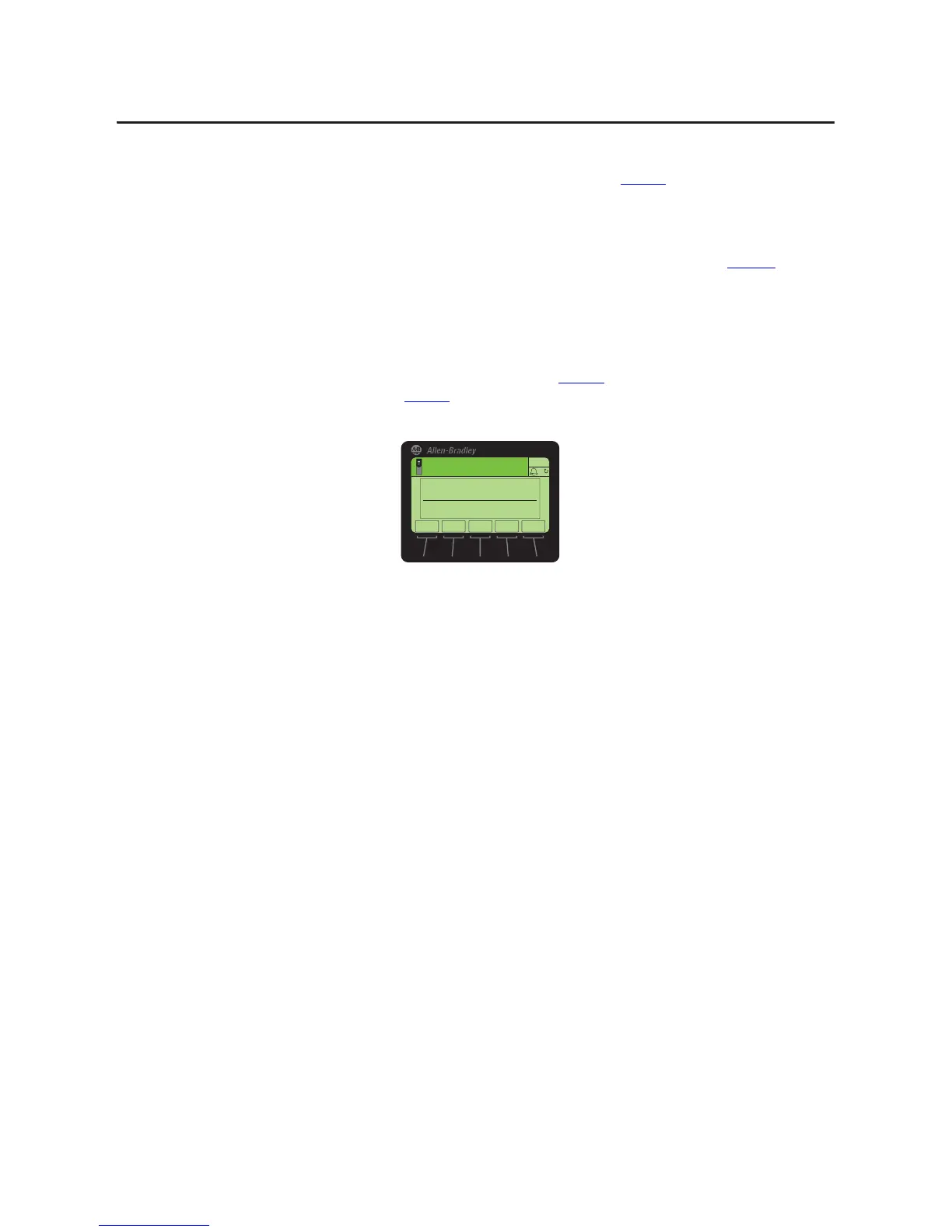

(GLW)DXOW'VS\7\SH
Flash Bklite 0
To Next Page
