Allen-Bradley PowerFlex 20-HIM-A6 User Manual

30 Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013
Chapter 3 HIM Components

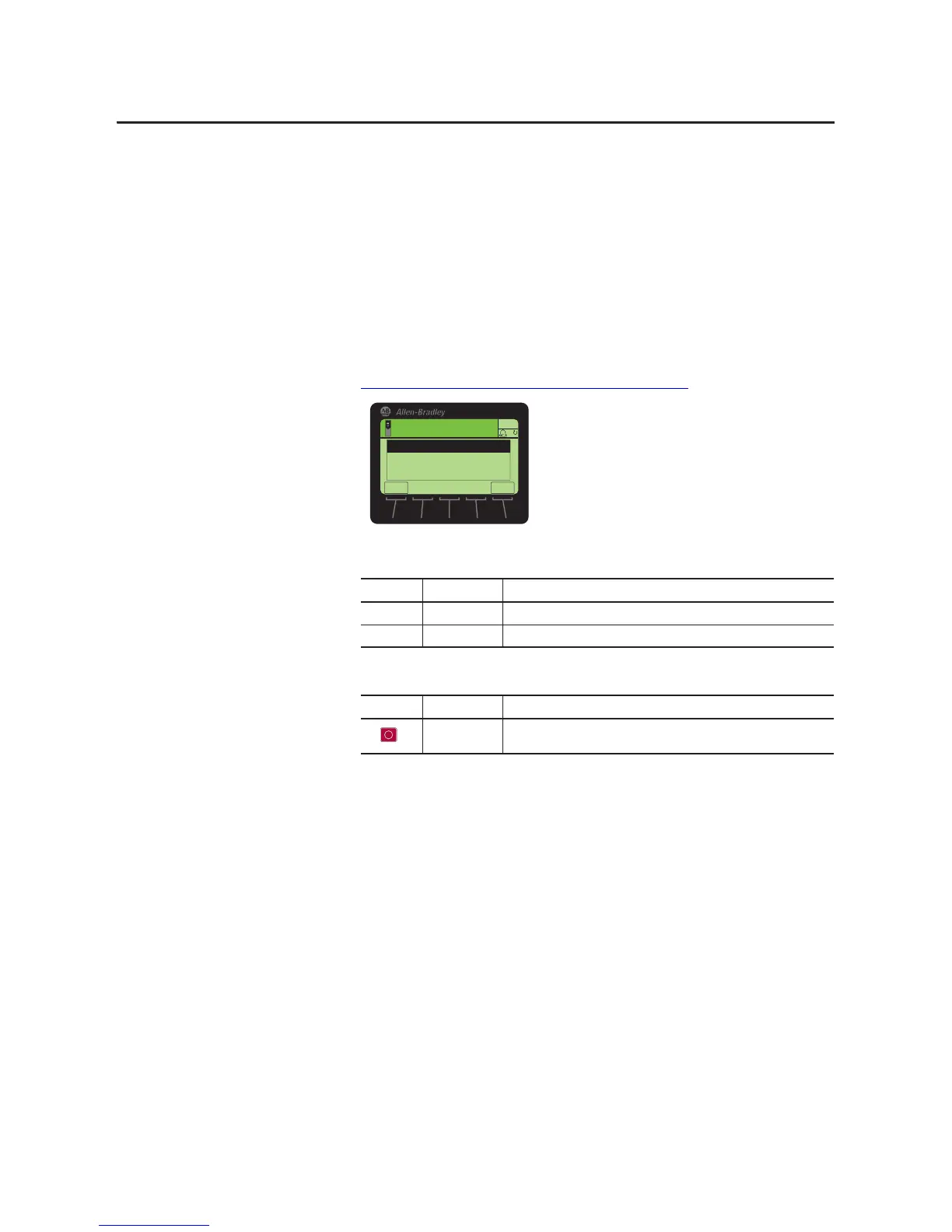

Fault Display Screen
The pop-up Fault Display screen automatically appears when a fault condition is
detected for the host drive or any connected peripheral. The pop-up Fault
Display screen flashes to alert that a fault condition exists. The Fault Display
screen (example shown below) provides the following information:
• Fault Code number
• Fault description
• Elapsed time (in hh:mm:ss format) from fault detection
The flash mode for the Fault Display screen can be changed. For details, see
Setting Display Flashing for Fault Indication
on page 40.
Fault Display Screen Soft Keys
Fault Display Screen Single Function Key
Label Name Function
(6& Escape Reverts back to the previous screen without clearing the fault.
&/5 Clear Removes the pop-up Fault Display screen from the display and clears the fault.
Key Name Function
Stop Removes the pop-up Fault Display screen from the display, clears the fault, and
sends a STOP command to the Host drive.
)DXOW&RGH
'3,3RUW/RVV
(ODSVHG7LPH
&/5
²²)$8/7('²²
6WRSSHG
+]
$872
)
(6&
