Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013 23
HIM Components Chapter 3
Single-function Keys

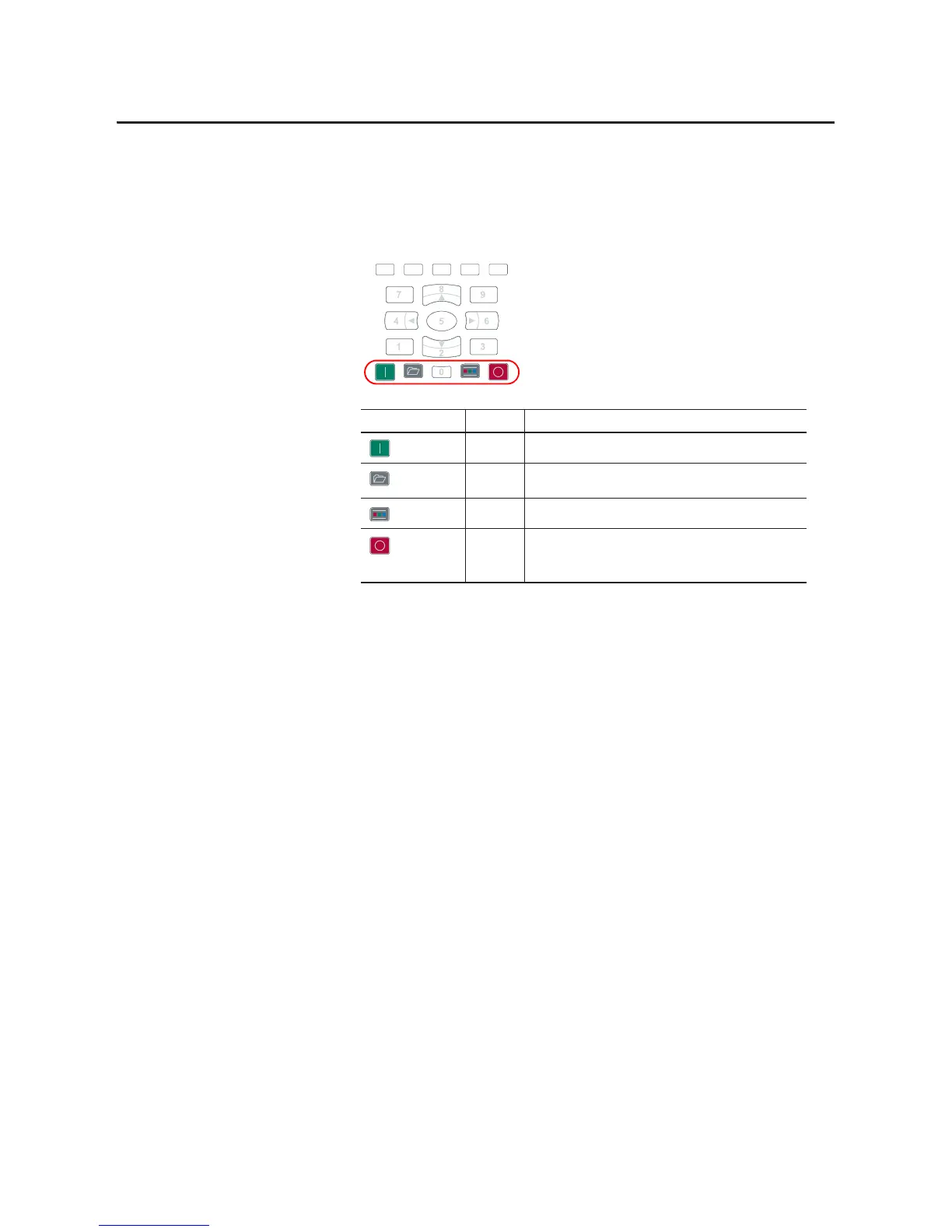

There are four single-function keys, which are highlighted below and listed in the
table below. Each single-function key always performs only its dedicated
function.
Single-function Key Name Function
Start Starts the drive.
(1)
(1) During drive Start Up these keys are temporarily inactive.
Folders Accesses folders for parameters, diagnostics, memory functions,
preferences, and other tasks.
(1)
Controls Accesses jog, direction, auto/manual, and other control functions.
Stop • Stops the drive or clears a fault.
• This key is always active.
• This key is controlled by drive parameter 307 [Start Stop Mode].
