26 Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013
Chapter 3 HIM Components
Main Screens
The HIM main screens include the Status screen, Process screen, Control screen,
Folder screens, and Fault Display screens, which are described in their respective
subsections that follow.
Status Screen
On power up, the Status screen (Figure 4) is shown by default. Depending on the
type of host drive, the Status screen displays the following information.

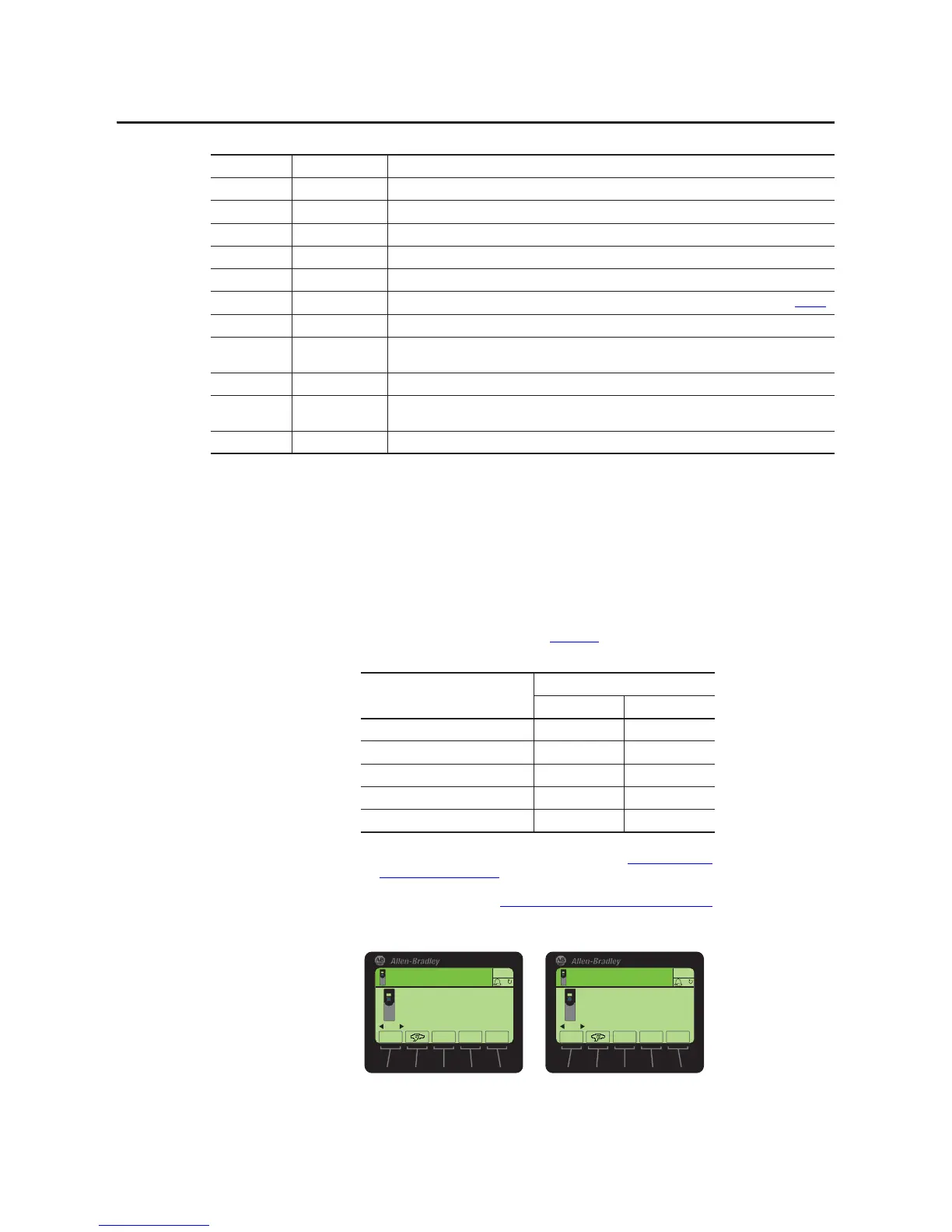

Figure 4 - Example Status Screens
0267 Most Restores most Host or Port device parameters to factory defaults.
3$5 Parameter Number Navigates directly to a parameter.
3*'1 Page Down Scrolls down to the next page of data lines on the Device Version information screen.
3*83 Page Up Scrolls up to the previous page of data lines on the Device Version information screen.
5() Reference Enters the speed reference for the Host Drive.
5(6(7 Reset Resets the Process screen’s displayed monitoring items to the factory default monitoring items listed on page 36
.
7(;7 Text Edits user-definable text for the device selected.
723 To p • Displays the top (most recent) fault, alarm or event in a queue.
• Scrolls to the top line of data on the Device Version information screen.
833(5 Upper Displays the upper 16 bits (bits 16…31) of a 32-bit Bit-type parameter.
9,(: View • Toggles between select screens and views.
• Displays the time stamp screen from a fault, alarm or event queue screen.
=21(6 Zones Displays the Select Time Zone screen.
Soft Key Label Name Function
Displayed Information
Host PowerFlex Drive
750-Series 7-Class
Selected device icon and port number ✔✔
Device name
(1)
(1) The displayed default device name is dependent on the host drive. The device name can be
changed, for example, to Host Drive as shown in the screens below. See Creating a User-Defined
Drive/Peripheral Name on page 35 for details.
✔✔
Rating text (volts, amps) ✔✔
Drive catalog text ✔ not applicable
Firmware version and hardware series
(2)
(2) The firmware version and hardware series for a PowerFlex 750-Series drive can be shown using
HIM menu screens. For details, see Checking Drive and Peripheral Firmware Revisions
on page 47.
✔
For PowerFlex 750-Series Drive For PowerFlex 7-Class Drive
00
6WRSSHG
+]
$872
Host Drive
240V 4.2A
20G...D014
(6& 5() 7(;7
)
3$5
To Next Page
