46 Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013

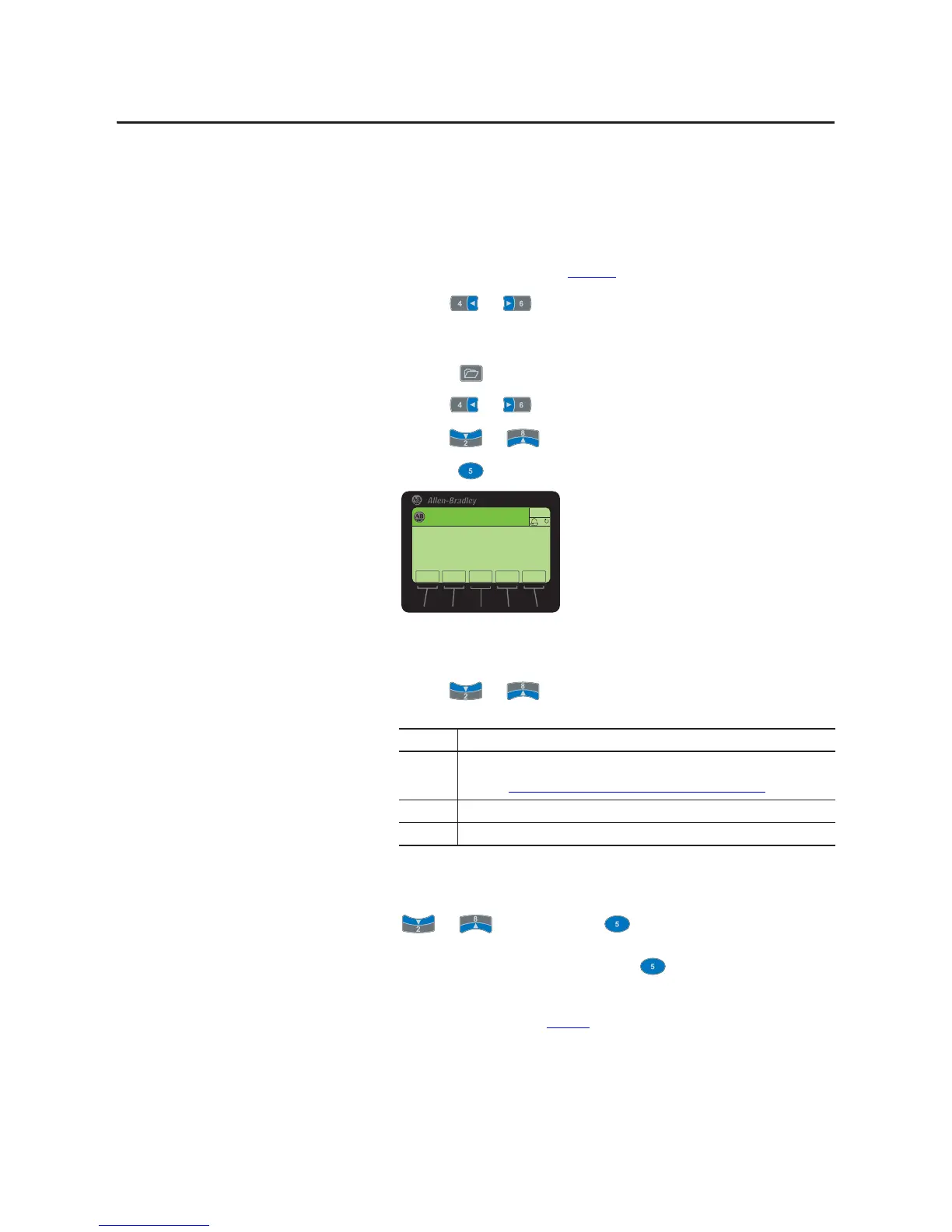

Chapter 4 Using the HIM
Viewing/Clearing Peripheral
Events
Events for the host drive’s connected peripherals—including the HIM—are
logged into their respective event queues. Many events in an event queue occur
under normal operation. If you encounter unexpected problems, the events may
help you or Allen-Bradley personnel troubleshoot the problem. Follow these step
to view or clear the events of a connected peripheral.
1. Access the Status screen (see Figure 6
).
2. Use the or key to scroll to the Port of the device whose events
you want to view (for example, Port 06 for a network communication
option module).
3. Press the key to display its last-viewed folder.
4. Use the or key to scroll to the DIAGNOSTIC folder.
5. Use the or key to select Events.
6. Press the (Enter) key to display the device’s numbered event queue.
Events are listed from the most recent to occur (line 01) to the least recent.
The event number and name are shown at the right.
7. Use the or key or the following soft keys to navigate within
the event queue. 
8. To clear events, press the CLR soft key.
In the Select Action pop-up box, select the appropriate action using the
or key and press the (Enter) key to clear the event or
clear event queue. To cancel the pop-up box, press the ESC soft key or
select Cancel from the list and press the (Enter) key.
The PowerFlex 20-HIM-A6 or 20-HIM-C6S HIM maintains an event queue that
reports the history of its actions. Ta bl e 2
shows all possible events for the HIM. To
view the HIM events, use the procedure described above.
Soft Key Function
ENTER Displays the Time Stamp pop-up box for the event. Note that the real-time clock in a
PowerFlex 750-Series drive must be accurately set to provide meaningful time stamp data. For
details, see Setting the Date/Time for PowerFlex 750-Series Drives
on page 33.
TOP Displays the first (most recent) event in the queue.
END Displays the last (least recent) event in the queue.
6WRSSHG
+]
$872
(6& 723 (1'
)
&/5
3RUW (YHQWV
  '3,2QOLQHN 
  6,2QOLQH
  1HW/LQN8S
  ((35206XP(UURU 
(17(5
