32 Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013
Chapter 4 Using the HIM
Selecting Display Contrast
The contrast of the HIM display can be adjusted for optimal viewing. Follow
these steps to change the contrast.
1. Access the Status screen, which is displayed on HIM power up.

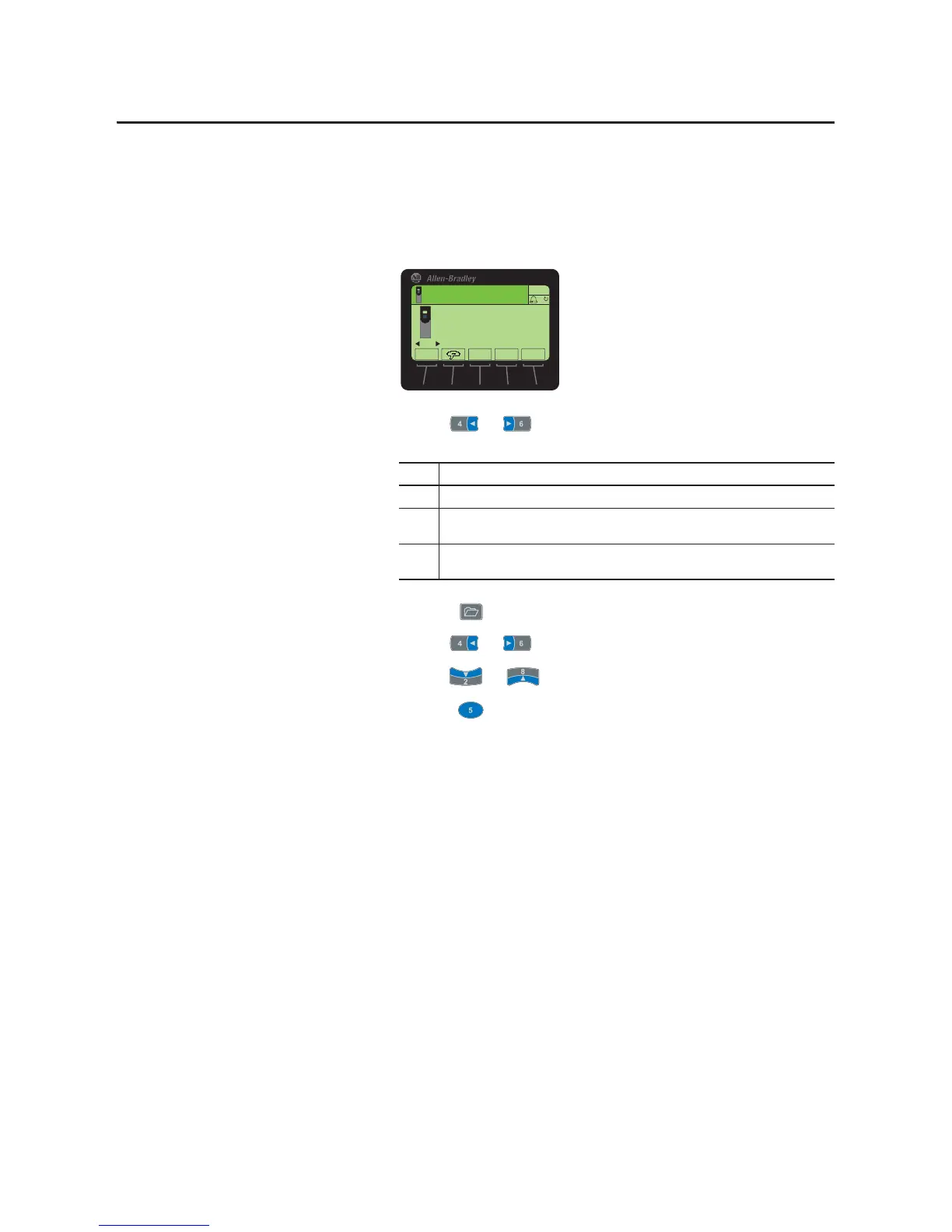

Figure 6 - Status Screen
2. Use the or key to scroll to the port to which the HIM is
connected.
3. Press the key to display its last-viewed folder.
4. Use the or key to scroll to the PROPERTIES folder.
5. Use the or key to select Adjust Contrast.
6. Press the (Enter) key to display the Set LCD Contrast edit pop-up
box.
7. Use the or soft key to adjust contrast to the desired setting.
8. Press the ESC soft key to set the contrast and exit the screen.
Port Location
01 HIM cradle on the front of the drive.
02 DPI port near the bottom of the drive control pod (PowerFlex 750-Series drives) or
at the bottom of the drive (PowerFlex 7-Class drives).
03 Splitter cable port when the cable is plugged into the DPI port near the bottom of the drive control
pod (PowerFlex 750-Series drives) or at the bottom of the drive (PowerFlex 7-Class drives).
00
6WRSSHG
+]
$872
Host Drive
240V 4.2A
20G...D014
(6& 5() 7(;7
)
3$5
