Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013 43
Using the HIM Chapter 4
6. Press the EDIT soft key (for editable parameters only) to display the Edit
Parameter pop-up box.

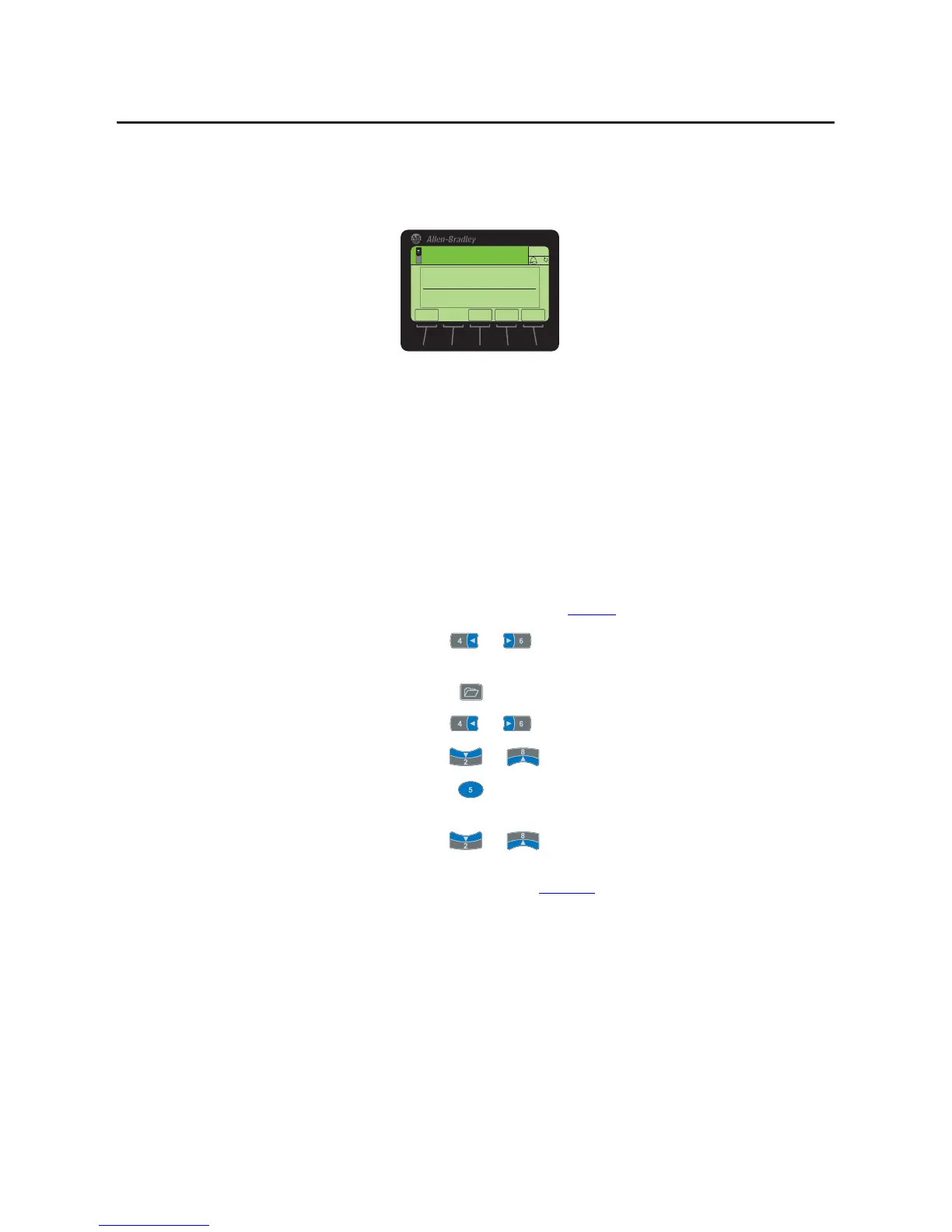

Figure 11 - Example Edit Parameter Pop-Up Box
7. Use the numeric keys, decimal soft key, and  soft key to edit the parameter.
8. Press the ENTER soft key to enter the new parameter value and return to
the parameter screen.
Alternate Linear List Access Method
1. Access the Status screen (see Figure 6).
2. Use the or key to scroll to the Port of the device whose
parameters you want to access (for example, Port 00 for the host drive).
3. Press the key to display its last-viewed folder.
4. Use the or key to scroll to the PARAMETER folder.
5. Use the or key to select Linear List.
6. Press the (Enter) key to display either the device’s last-viewed
parameter or the first parameter in the linear list.
7. Use the or key to scroll to the desired parameter.
8. Press the EDIT soft key (for editable parameters only) to display the Edit
Parameter pop-up box (Figure 11
).
9. Use the numeric keys, decimal soft key, and  soft key to edit the parameter.
10. Press the ENTER soft key to enter the new parameter value and return to
the parameter screen.
TIP
When the decimal soft key is pressed while editing a numeric value,
this key temporarily changes to an EXP soft key to allow exponential
entry.
TIP
When the decimal soft key is pressed while editing a numeric value,
this key temporarily changes to an EXP soft key to allow exponential
entry.
(GLW$FFHO7LPH
5.0 Secs
  
(6&


6WRSSHG
+]
$872
)
(17(5
