Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013 47
Using the HIM Chapter 4

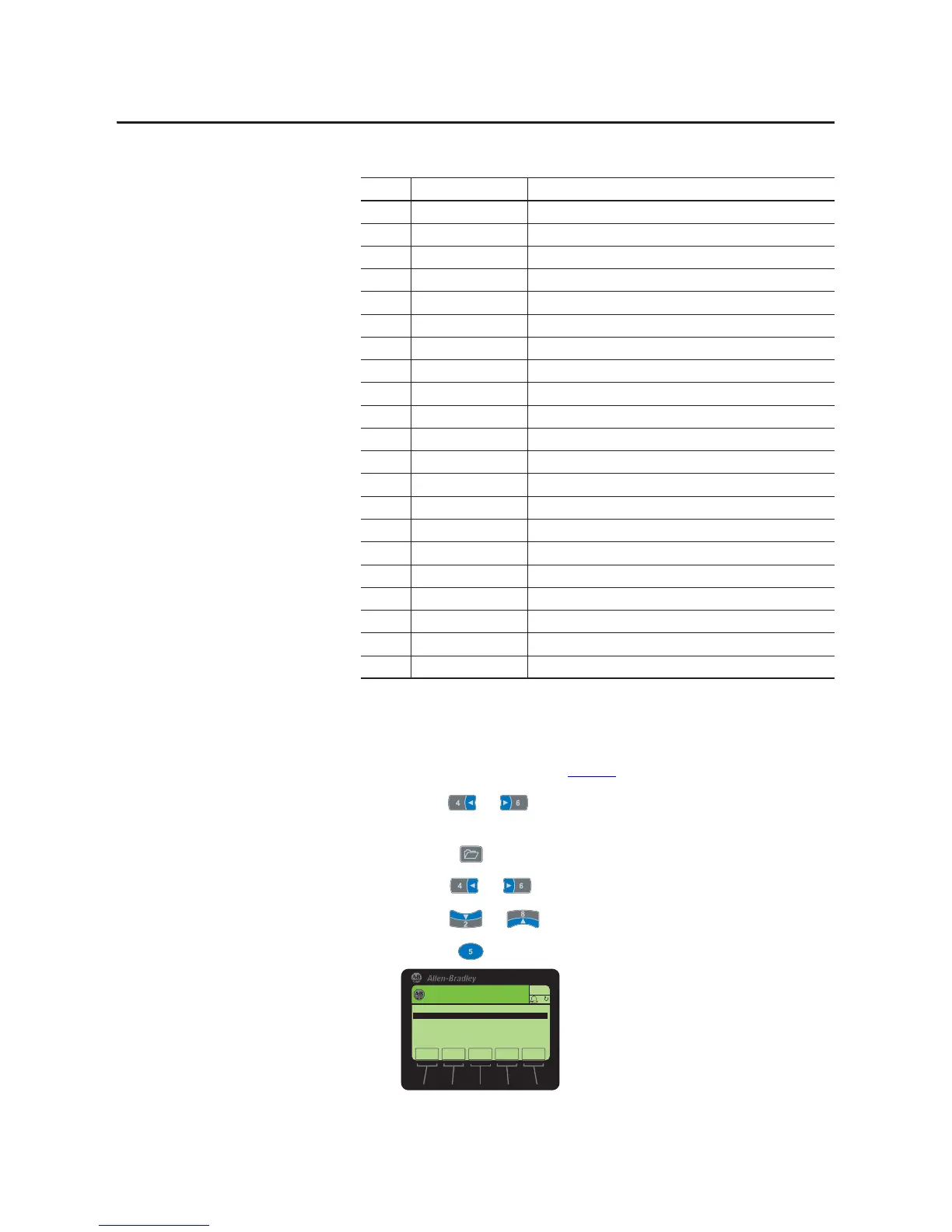

Table 2 - 20-HIM-A6 and 20-HIM-C6S HIM Events
Checking Drive and
Peripheral Firmware
Revisions
Follow these steps to check the firmware revision of the drive or its peripherals.
1. Access the Status screen (see Figure 6
).
2. Use the or key to scroll to the Port of the device whose firmware
version you want to view (for example, Port 00 for the host drive).
3. Press the key to display its last-viewed folder.
4. Use the or key to scroll to the DIAGNOSTIC folder.
5. Use the or key to select Device Version.
6. Press the (Enter) key to display device version information.
Code Event Description
1Reserved —
2 Device Power Up A normal power up.
3 Device Reset The HIM was reset due to a manual reset command or program crash.
4 EEPROM CRC Error The HIM EEPROM Data Storage Device is corrupt.
5 App Updated The HIM application firmware has been updated.
6 Boot Updated The HIM boot firmware has been updated.
7 Watchdog Timeout A program crash has occurred.
8 DPI Bus Off A DPI Bus Off fault was detected.
9 DPI Ping Timeout A DPI Ping Timeout fault was detected.
10 DPI Port Invalid A DPI Port ID fault was detected.
11 DPI Port Changed A DPI Port Changed fault was detected.
12 DPI Host Reset The host has sent a reset message.
13 DPI Baud 125K The DPI data rate is detected at 125K bits/second.
14 DPI Baud 500K The DPI data rate is detected at 500K bits/second.
15 DPI Host Invalid The HIM will not connect to this type of host.
16 DPI Dup Port Another DPI device is already connected to this port.
17 DPI Type 0 Logon The DPI log on was completed successfully.
18 DPI Type 0 Time A DPI Type 0 Command has timed out.
19-23 Reserved —
24 DPI Msg Timeout A message to a DPI device has timed out.
25 DPI Manual Reset A reset command was sent through a fault object.
6WRSSHG
+]
$872
(6&
)
3RZHU)OH[
3URGXFW5HYLVLRQ
3URGXFW6HU1XP
3URGXFW6HULHV$
²0DLQ&RQWURO%RDUG
):5HYLVLRQ
723 (1' 3*83 3*'1
