HIM Components Chapter 3
Folder Screens
The drive and each connected peripheral has its own set of Folder screens:
To display the last-viewed Folder screen, press the (Folders) key. The Folder
screen Data Area displays:
• Selected device and port number
• Host drive and peripheral folders

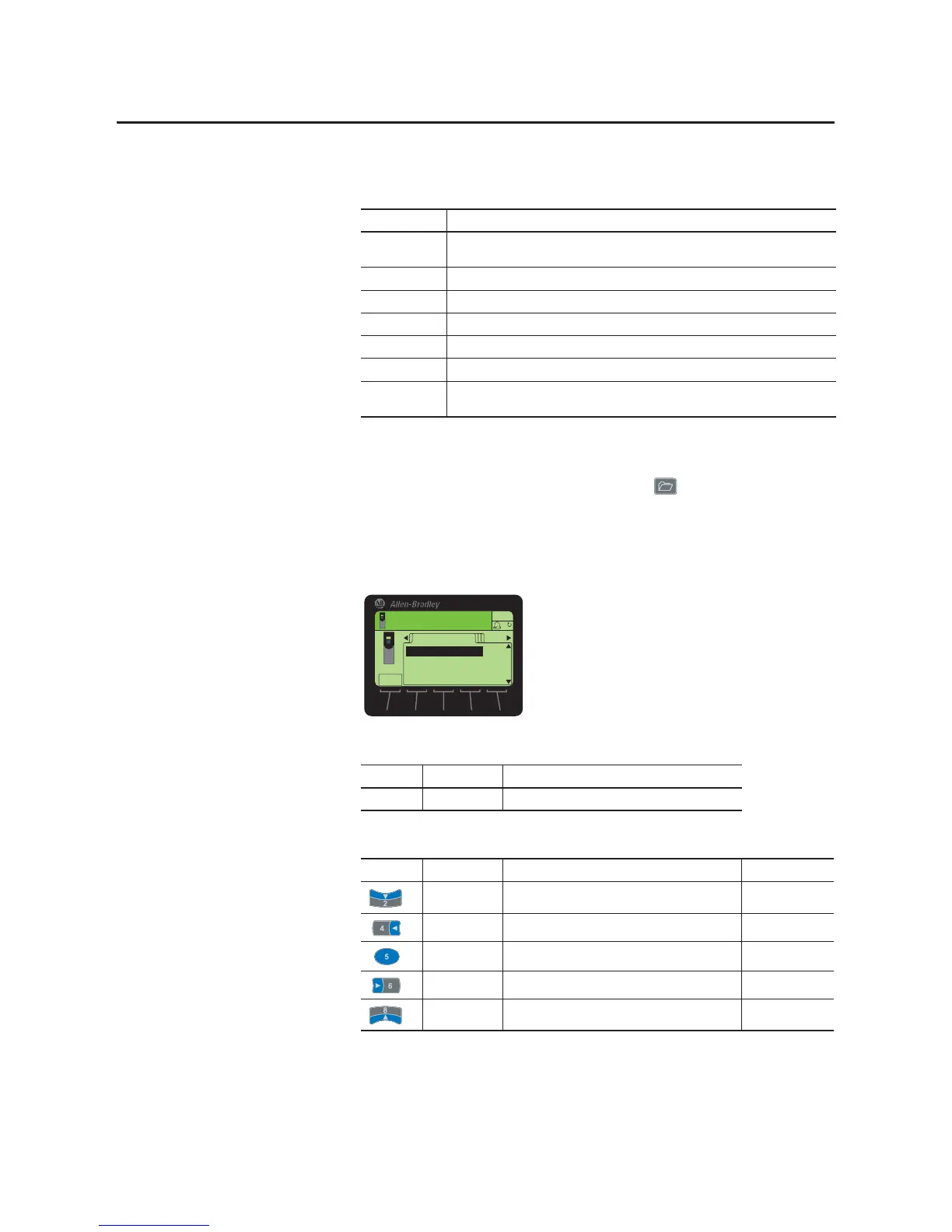

Figure 5 - Example Folder Screen (Device Parameters)
Folder Screen Soft Key
Folder Screen Navigation/Number Keys
Folder Screen Description
PORTS Displays a list of host drive ports to which peripherals are connected. The host drive is always Port
00. An icon appears for the device occupying the selected port.
DEV PARAM Displays a list of available methods to access the device’s parameters.
HOST PARAM
(1)
(1) The HOST PARAM folder screen is only available for PowerFlex 750-Series peripherals that support use of Host Drive parameters (for
example, the 20-750-DNET DeviceNet network communication option module).
Displays a list of available methods to access the host drive parameters.
DIAGNOSTIC Displays a list of available diagnostic information items for the device.
MEMORY Displays a list of available memory storage items for the device.
PROPERTIES Displays a list of available user-defined convenience functions for the device.
START UP Displays a list of available host drive start-up routines. This folder is not applicable for peripheral
devices and is not shown.
Label Name Function
(6& Escape Reverts back to the Status or Process Display screen.
Key Name Function Screen Element
2/Down Arrow Scrolls down through the folder items.
4/Left Arrow Scrolls to the previous folder.
5/Enter Displays the next level screen for a selected folder item. Not applicable
6/Right Arrow Scrolls to the next folder.
8/Up Arrow Scrolls up through the folder items.
00
(6&
DEV PARAM
/LQHDU/LVW
)LOH*URXS
&KDQJHG3DUDPHWHUV
3DUDP$FFHVV/HYHO
6WRSSHG
+]
$872
)
