24 Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013
Chapter 3 HIM Components

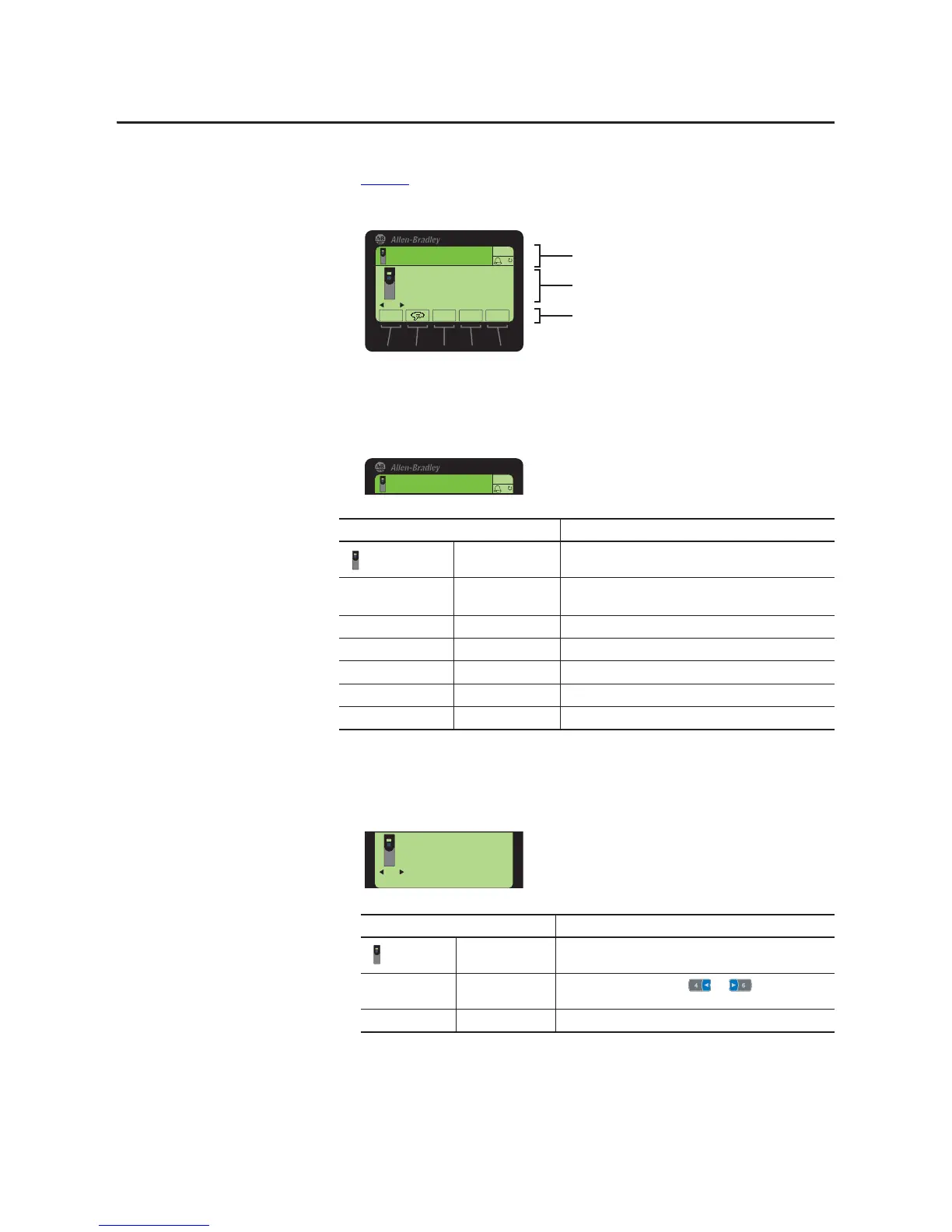

LCD Display Elements
The basic HIM screen is divided into three display zones, which are shown in
Figure 3
and described in their respective subsections that follow.
Figure 3 - HIM Display Zones
Status Bar
The Status Bar provides operating status information for the host drive.
Data Area
The Data Area displays the data or function presently being acted upon.
Status Bar
Data Area
Soft Key Labels
00
6WRSSHG
+]
$872
Host Drive
240V 4.2A
20G...D014
(6& 5() 7(;7
)
3$5
6WRSSHG
+]
$872
)
Status Bar Element Meaning
Host Icon A small image of the connected host drive.
6WRSSHG Status Text Indicates present host drive operating status.
Text flashes when a fault is present.
+] Feedback Indicates drive output feedback (for example, Hz, RPM, amps, etc.)
$8720$1 Mode Indication Indicates Auto or Manual HIM status.
Alarm Indication Bell icon indicates that an alarm is present.
) or 5 (not shown) Rotation Indication Indicates Forward or Reverse direction of host drive operation.
'/; (not shown) DeviceLogix Indication Indicates when the host drive DeviceLogix feature is enabled.
Data Area Element Meaning
Host or Device Icon Image of the host drive or image of the device connected to the port
selected.
Port Selection Indicates selected port. Use the or navigation keys to
select a port.
+RVW'ULYH User-Definable Text Top line of text in the Data Area can be edited by the user.
To Next Page
