Rockwell Automation Publication 750-PM001N-EN-P - February 2017 503
Integrated Motion on EtherNet/IP Application Appendix F
Feedback Configuration
Options

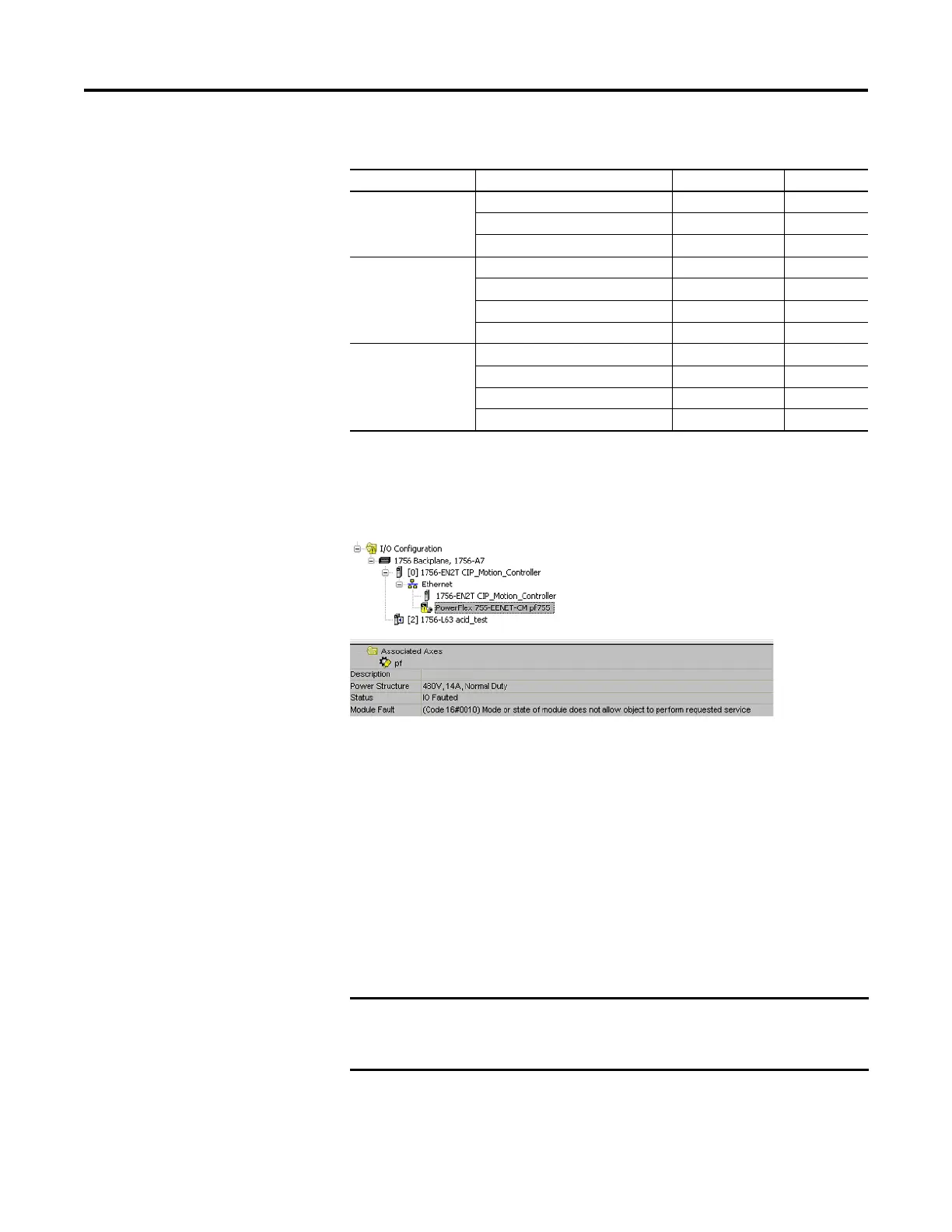

The following feedback module combinations are supported.
An invalid hardware configuration results in a Module Fault: (Code 16#0010)
Mode or state of module does not allow object to perform requested service.
Considerations for Using Position Feedback Devices on the PowerFlex
755 in the Integrated Motion on EtherNet/IP Context
The PowerFlex 755 drive connects to position feedback devices (encoders) by
using one or more feedback option modules that are installed in the control pod.
There are currently three supported types of feedback modules:
• Single Incremental Encoder (20-750-ENC-1)
• Dual Incremental Encoder (20-750-DENC-1)
• Universal Feedback (20-750-UFB-1)
Option Supported Module Catalog Number Valid Ports
Two Feedback Options Single Incremental Encoder 20-750-ENC-1 4…8
Dual Incremental Encoder 20-750-DENC-1 4…8
Universal Feedback 20-750-UFB-1 4…6
Two Feedback Options and
One Safe Torque Off
Option
Single Incremental Encoder 20-750-ENC-1 4 and 5
Dual Incremental Encoder 20-750-DENC-1 4 and 5
Universal Feedback 20-750-UFB-1 4 and 5
Safe Torque Off 20-750-S 6
Two Feedback Options and
One Safe Speed Monitor
Option
(1)
(1) The Safe Speed Monitor option module must be used with the 20-750-DENC-1 Dual Incremental Encoder module or the 20-750-
UFB-1 Universal Feedback module.
Single Incremental Encoder 20-750-ENC-1 4 and 5
Dual Incremental Encoder 20-750-DENC-1 4 and 5
Universal Feedback 20-750-UFB-1 4 and 5
Safe Speed Monitor 20-750-S1 6
Single and dual incremental feedback options, 20-750-ENC-1 and 20-750-
DENC-1, cannot use registration inputs. Use the Universal Feedback option
20-750-UFB-1 if registration homing inputs are required.
