14-10 SLC Passthru Communications

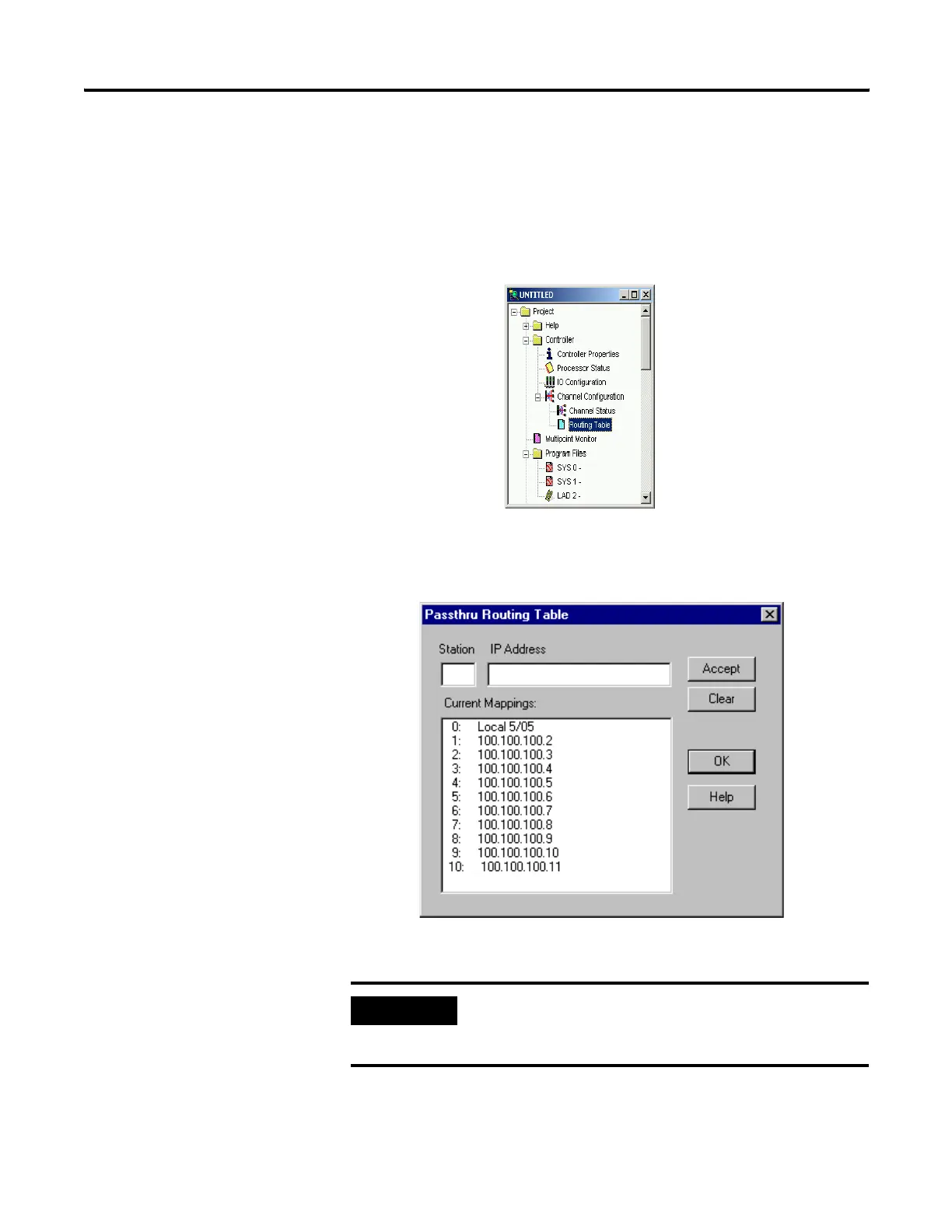

Access to the passthru routing table is located under the channel configuration
selection in RSLogix 500 Programming Software. If a Passthru Routing Table
File number was entered in the General Tab in the Channel Configuration
dialog box, click on the + in front of Channel Configuration to reveal the
routing table selection.
Double-click on Routing Table to view and modify the passthru routing table.
IMPORTANT
All Ethernet devices that information needs to be
passed to or from, must have their IP Address listed
in the Passthru Routing Table.
