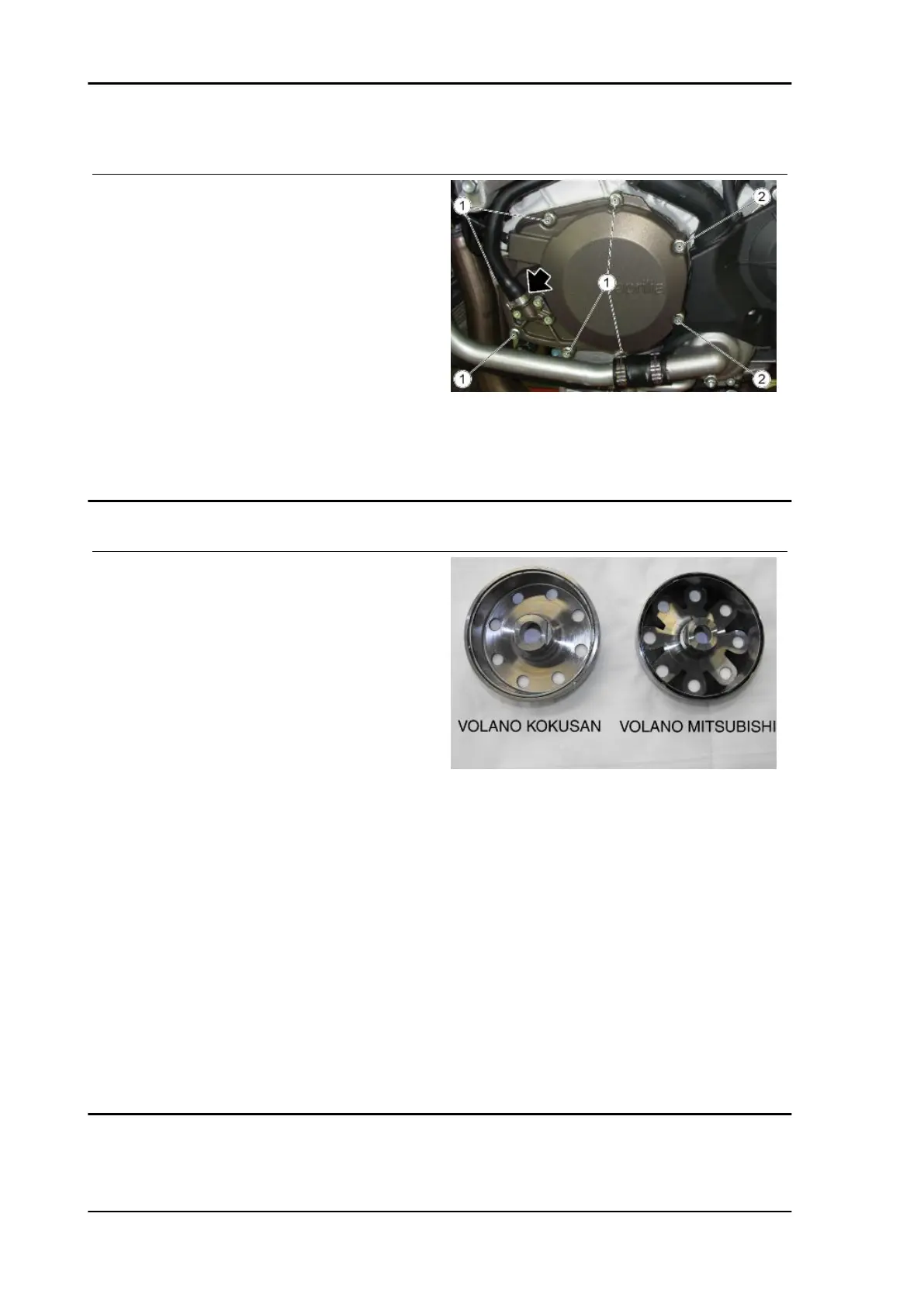

Removing the flywheel cover
•
Release the clamp and detach the
Blow-by pipe.
•
Unscrew and remove the five screws
(1).
•
Unscrew and remove the two screws
(2).
•
Mark the screws (1 - 2) that have dif-
ferent lengths.
•
Remove the cover together with the
stator and retrieve the two centring
dowels.
Magneto flywheel removal
THERE ARE TWO DIFFERENT TYPES OF FLY-
WHEEL, MITSUBISHI OR KOKUSAN, IN THIS
ENGINE. THE TWO FLYWHEELS CANNOT BE
INTERCHANGED BETWEEN THEM AS WELL
AS THE TOOLS USED FOR THEIR LOCKING
AND REMOVAL.
TOOLS FOR KOKUSAN FLYWHEEL:
•
Flywheel extractor cod. 020913Y
•
Flywheel lock cod. 020914Y
TOOLS FOR MITSUBISHI FLYWHEEL
•
Flywheel extractor cod. 020847Y
•
Flywheel lock cod. 020848Y
FIND BELOW THE REMOVING AND REFIT-
TING PROCEDURE OF THE MITSUBISHI FLY-
WHEEL, THE SAME PROCEDURE (EXCEPT
FOR TOOLS) IS VALID ALSO FOR KOKUSAN
FLYWHEEL.
See also
Removing the flywheel cover
Engine TUONO V4 R
ENG - 252
