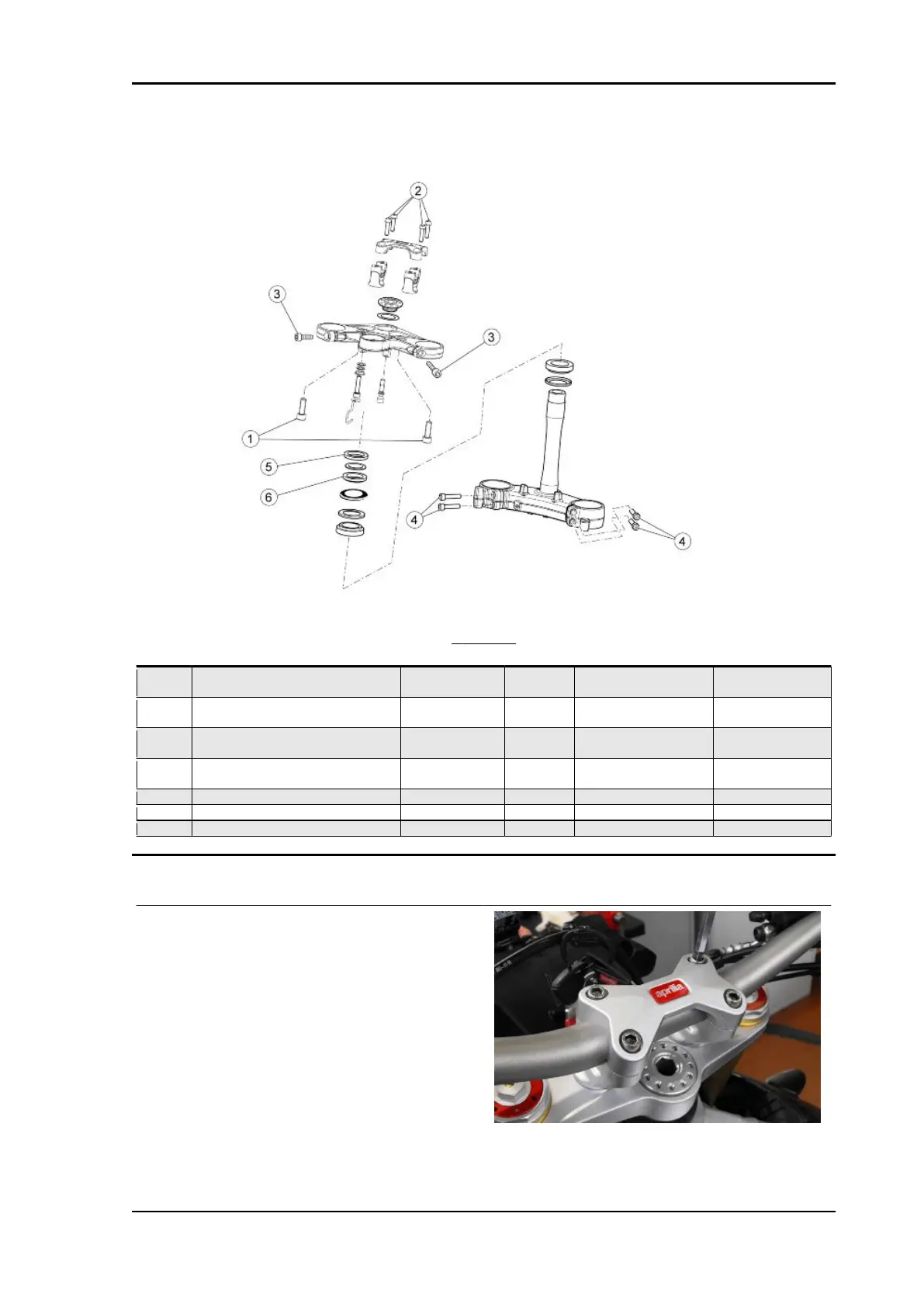

Steering bearing
STEERING
pos.
Description Type Quantity Torque Notes
1 Screws fastening the raiser to the
steering upper yoke
M10 2 50 Nm (36.87 lbf ft) -
2 Screws fastening upper U-bolt to
handlebar
M8 4 25 Nm (18.43 lbf ft) -
3 Screws fastening upper yoke to stan-
chions
M8 2 25 Nm (18.43 lbf ft) -
4 Screws fastening lower yoke to stan-
chions
M8 4 25 Nm (18.43 lbf ft) -
5 Headstock counter-lock ring M35x1 1 Manual +90° -
6 Headstock lock ring M35x1 1 40 Nm (29.5 lbf ft) -
- Steering damper fastening screw - 2 10 Nm (7.37 lbf ft) Loctite 243
Adjusting play
•
Remove the handlebar by unscrewing
and removing the four screws.
TUONO V4 R Suspensions
SUSP - 381
