Linkages
Removing
•

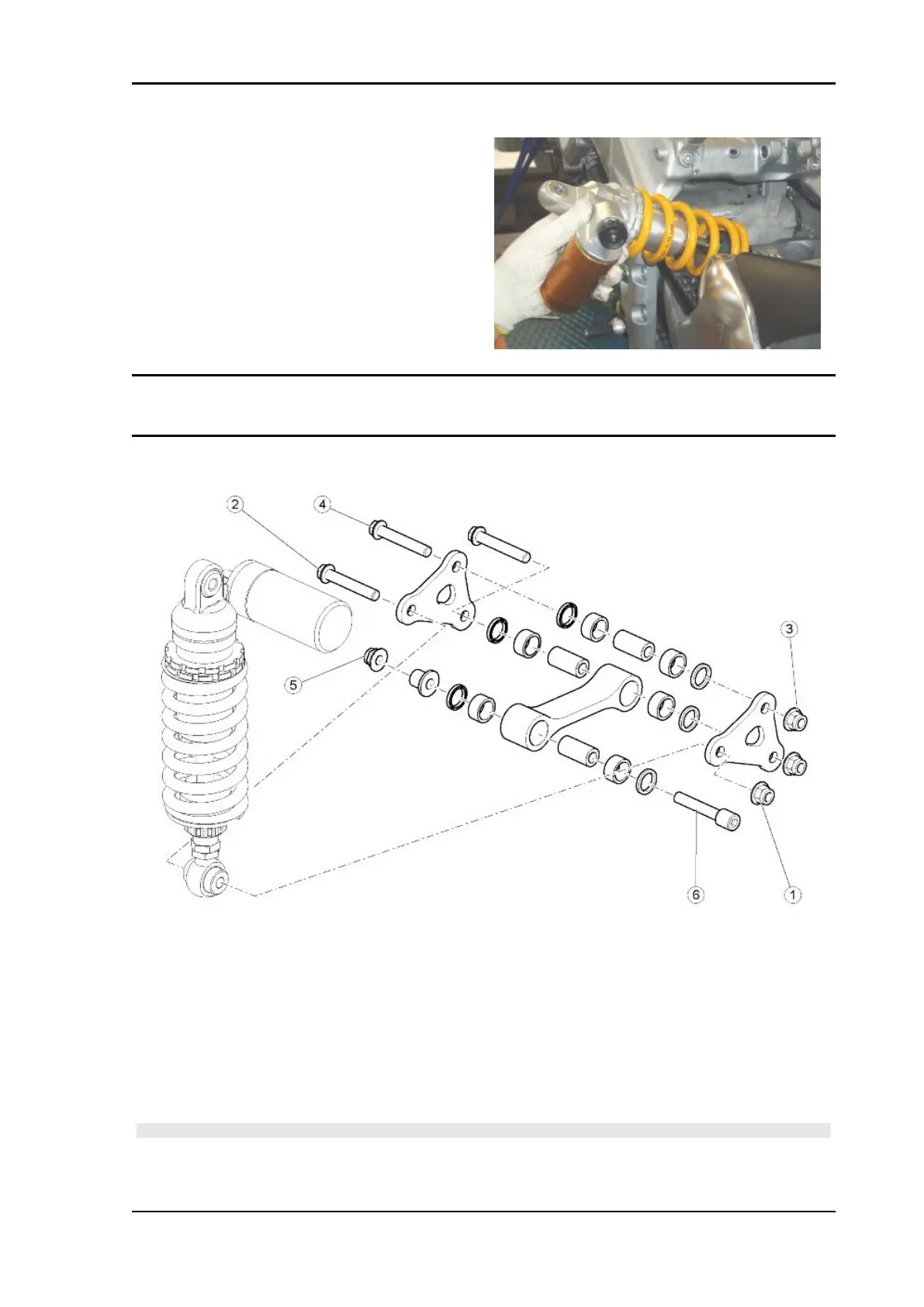

Working from the left side of the vehicle, loosen and remove the nut (1).
•
Slide off the screw (2) from the opposite side.
•
Loosen and remove the nut (3).
•
Slide off the screw (4) from the opposite side.
•
Loosen and remove the nut (5).
•
Slide off the screw (6) from the opposite side.
•
Remove the complete suspension connecting rod assembly unit.
