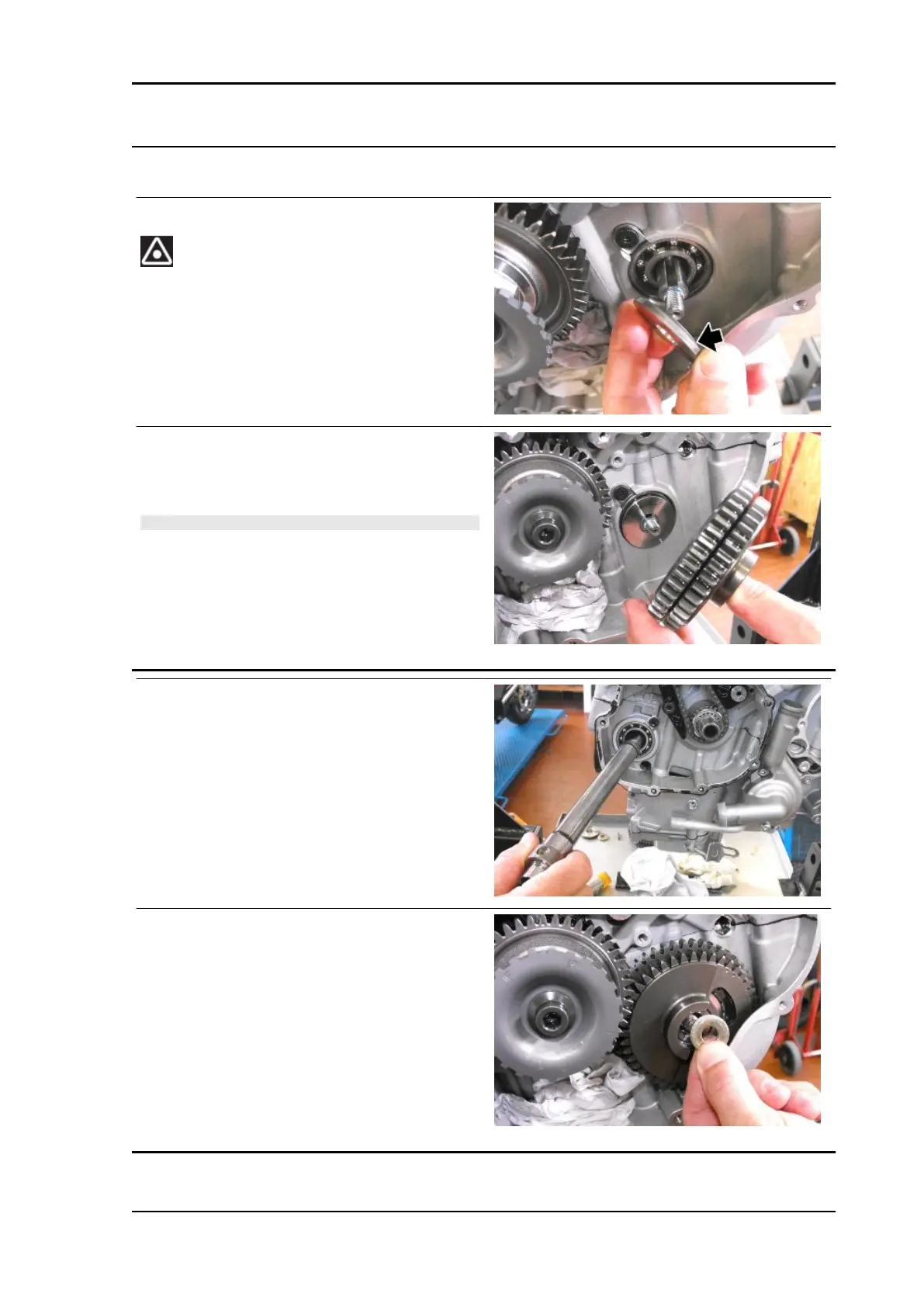

Balancing countershaft fitting
•
Install the spacer.
THE SPACER CHAMFERED SIDE MUST BE FACING THE
CRANKCASE.
•
Install the countershaft gear aligning
the references on the countershaft
gear and the primary shaft gear.
NOTE
THE BURIN ON THE PRIMARY SHAFT GEAR TOOTH MUST
BE INSERTED INTO THE SLOT IDENTIFIED WITH TWO
BURINS ON THE COUNTERSHAFT GEAR.
•
Insert the countershaft from the alter-
nator side.
•
Turn the countershaft until aligning the
key seat on the countershaft and on the
gear.
•
Insert the drive key.
•
Place the washer.
TUONO V4 R Engine
ENG - 315
