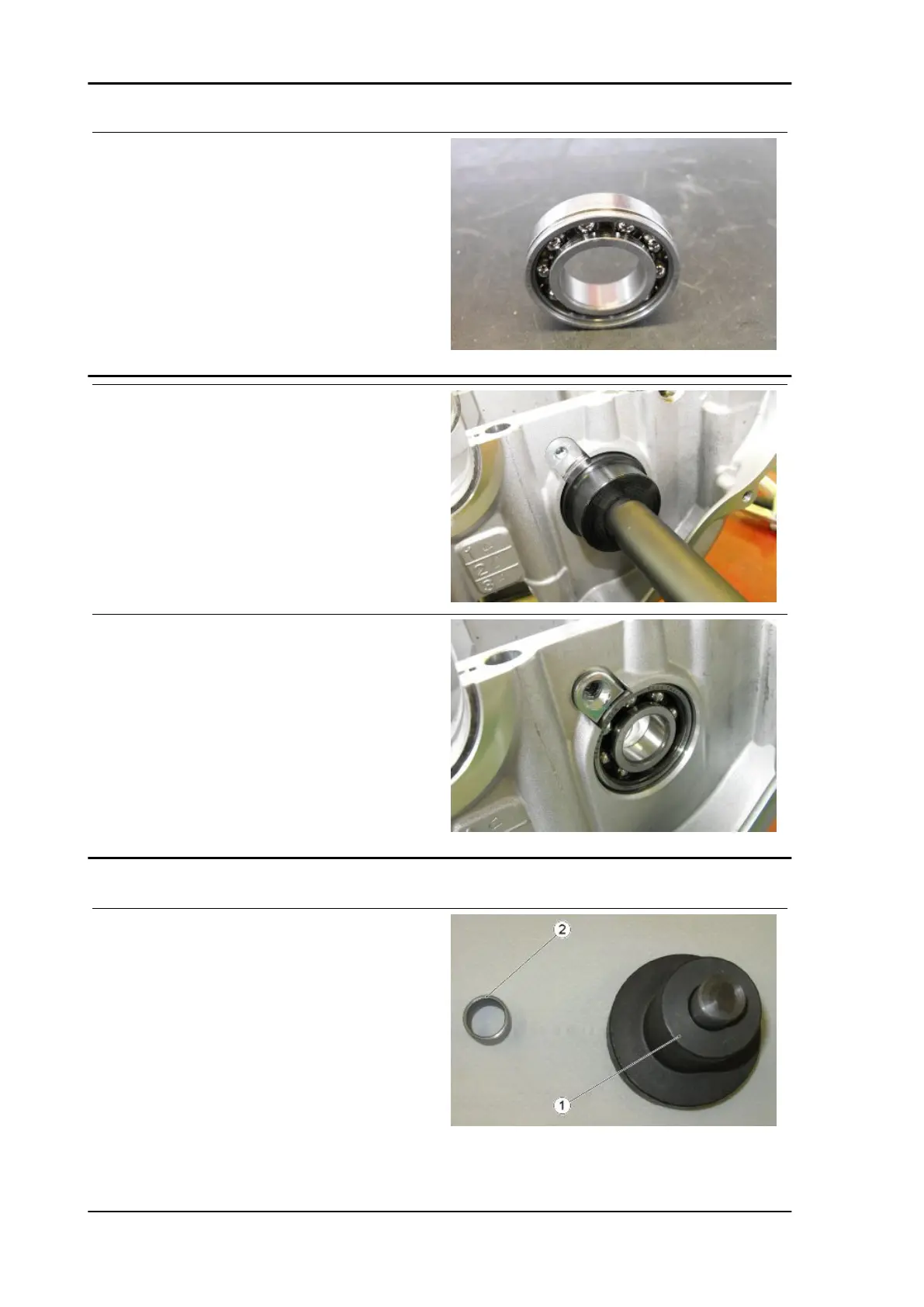

Position the new bearings with their
groove on the outside diameter facing
outward with respect to the crankcase.
In this way it will be possible to install
the bearing retainer in the groove.
•
Using the suitable tools, fit the bearing
in the crankcase until tool stops.
•
Fit the retainer in the bearing groove.
•
Tighten the bearing retainer screw.
•
Install the balancing countershaft.
Bushing fitting
COUNTERSHAFT BUSHINGS
•
Place the lower crankcase in a press,
resting it on the buffer supplied with the
special tool.
If a bushing is already installed on the side oppo-
site to which you want to install the new bushing,
use only the buffer (1). If instead a bushing is not
installed, use the adaptor (2) in addition to the buf-
fer (1).
