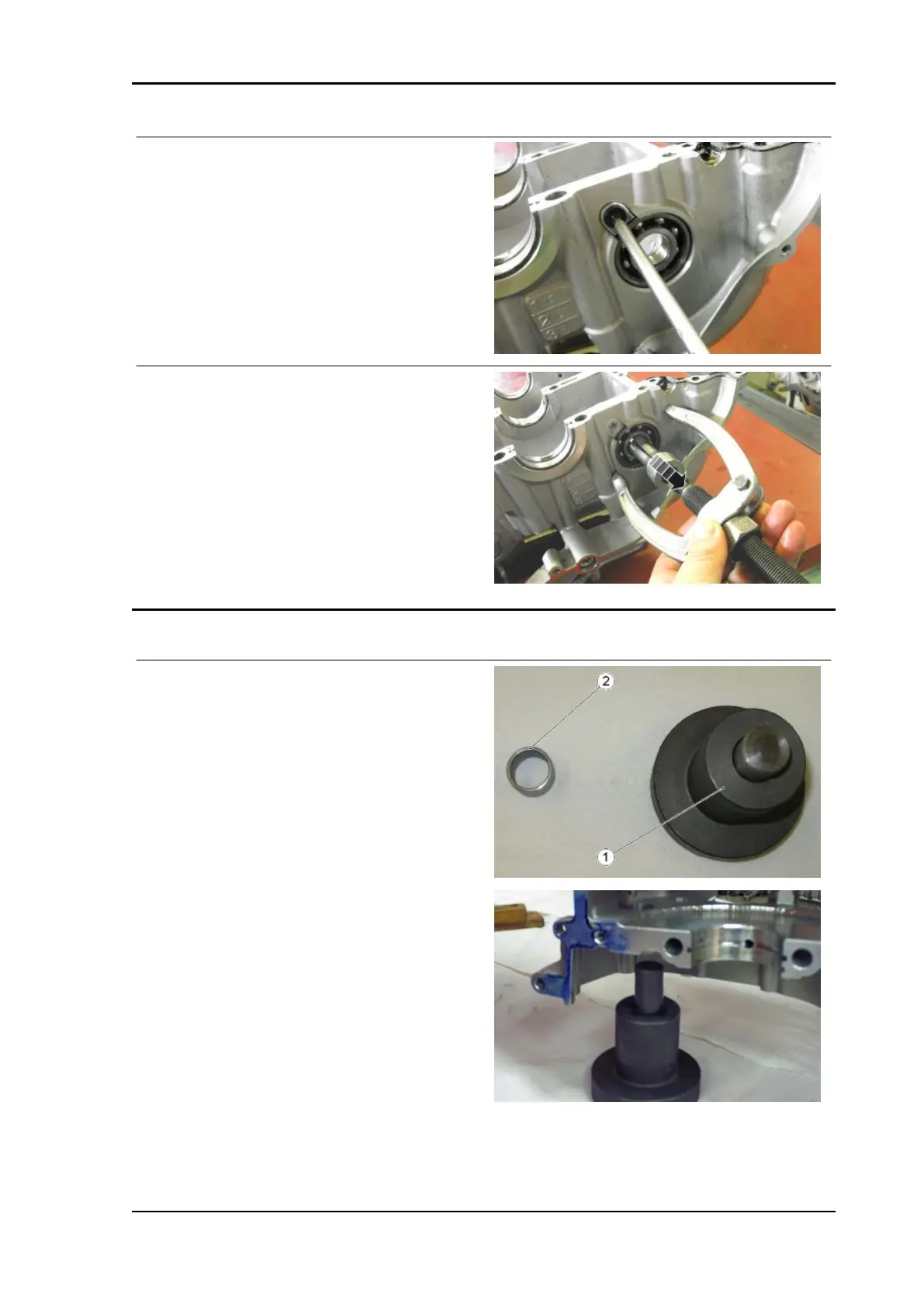

CLUTCH-SIDE
•
Unscrew and remove the bearing re-
tainer screw.
•
Remove the lock.
•
Heat up the crankcase to 150°C (302°
F)
•
Position the general tool to pull out
bearings.
•
Remove the bearing.
Bushing removal
COUNTERSHAFT BUSHINGS
•
Remove the countershaft.
•
Remove the lower crankcase.
•
Place the crankcase in a press, resting
it on the buffer supplied with the special
tool. If a bushing is already present,
use the buffer only (1). If a bushing is
not present, use the adaptor (2) in ad-
dition to the buffer (1).
Specific tooling
020861Y Countershaft bushing punch
TUONO V4 R Engine
ENG - 323
