FAIRING

pos. Description Type Quantity Torque Notes

1 Screws fastening the lower fairing to

the lower bracket

M5 2 3 Nm (2.21 lbf ft) -

2 Screws fixing the side fairings to the

side spacers

M5 2 1.5 Nm (1.10 lbf ft) -

Back side

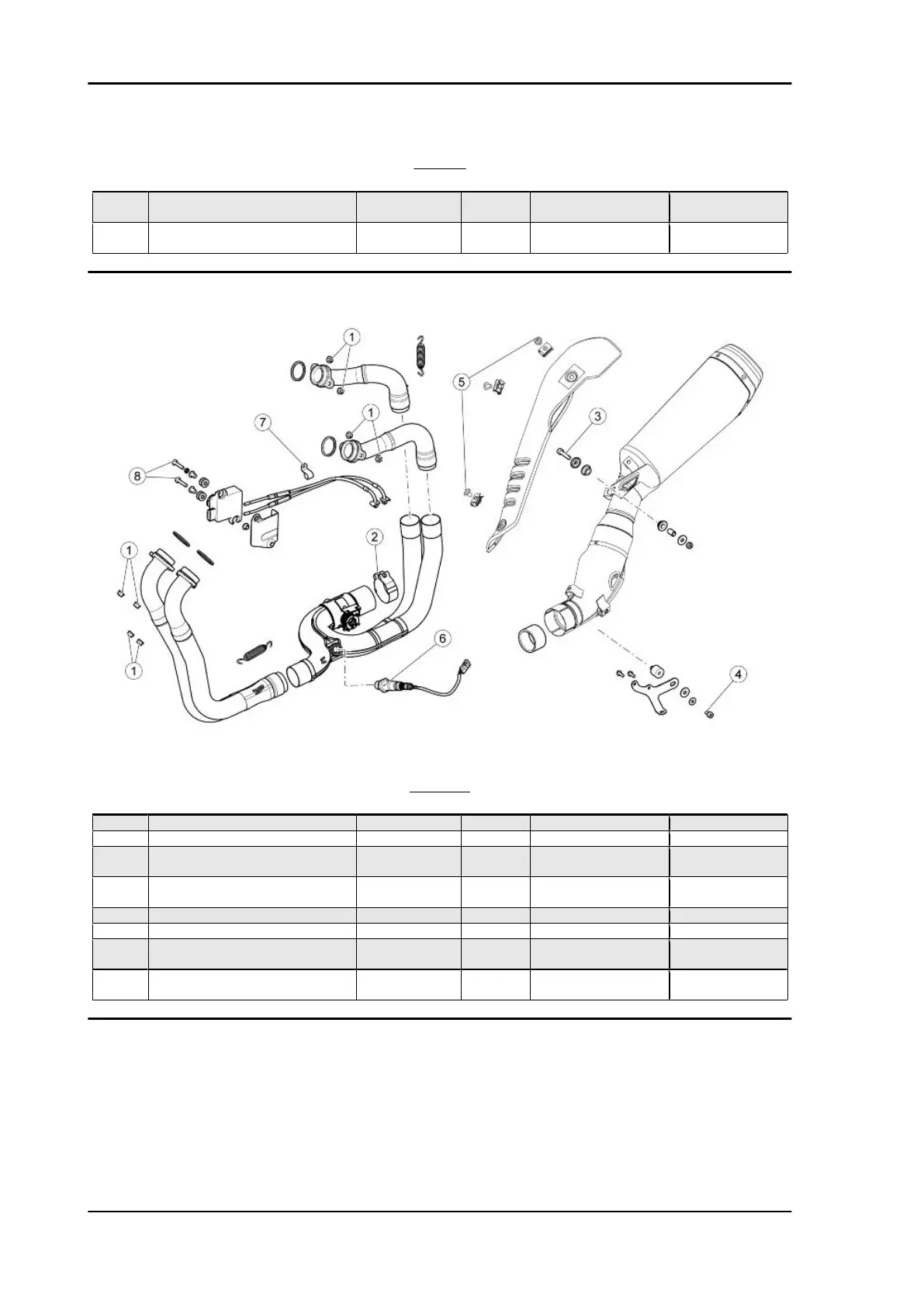

EXHAUST

pos.

Description Type Quantity Torque Notes

1 Exhaust manifold flange fixing nuts M7 8 13 Nm (9.59 lbf ft) -

2 Silencer clamp fixing screw M6 1 10 Nm (7.37 lbf ft) -

3 Screw fastening silencer to right

hand footpeg mounting

M8 1 25 Nm (18.44 lbf ft) -

4 Screw fastening silencer to central

lower fairing bracket

M8 1 20 Nm (14.75 lbf ft) -

5 Cosmetic silencer shield fixing screw M5 2 5 Nm (3.69 lbf ft) -

6 Oxygen sensor fastener M18x1.5 1 38 Nm (28.03 lbf ft) -

7 Fastener screw for cable grommet

for exhaust butterfly valve cables

M6 1 10 Nm (7.37 lbf ft) -

8 Exhaust butterfly valve actuator fix-

ing screws

M6 2 10 Nm (7.37 lbf ft) -

Characteristics TUONO V4 R

CHAR - 32
