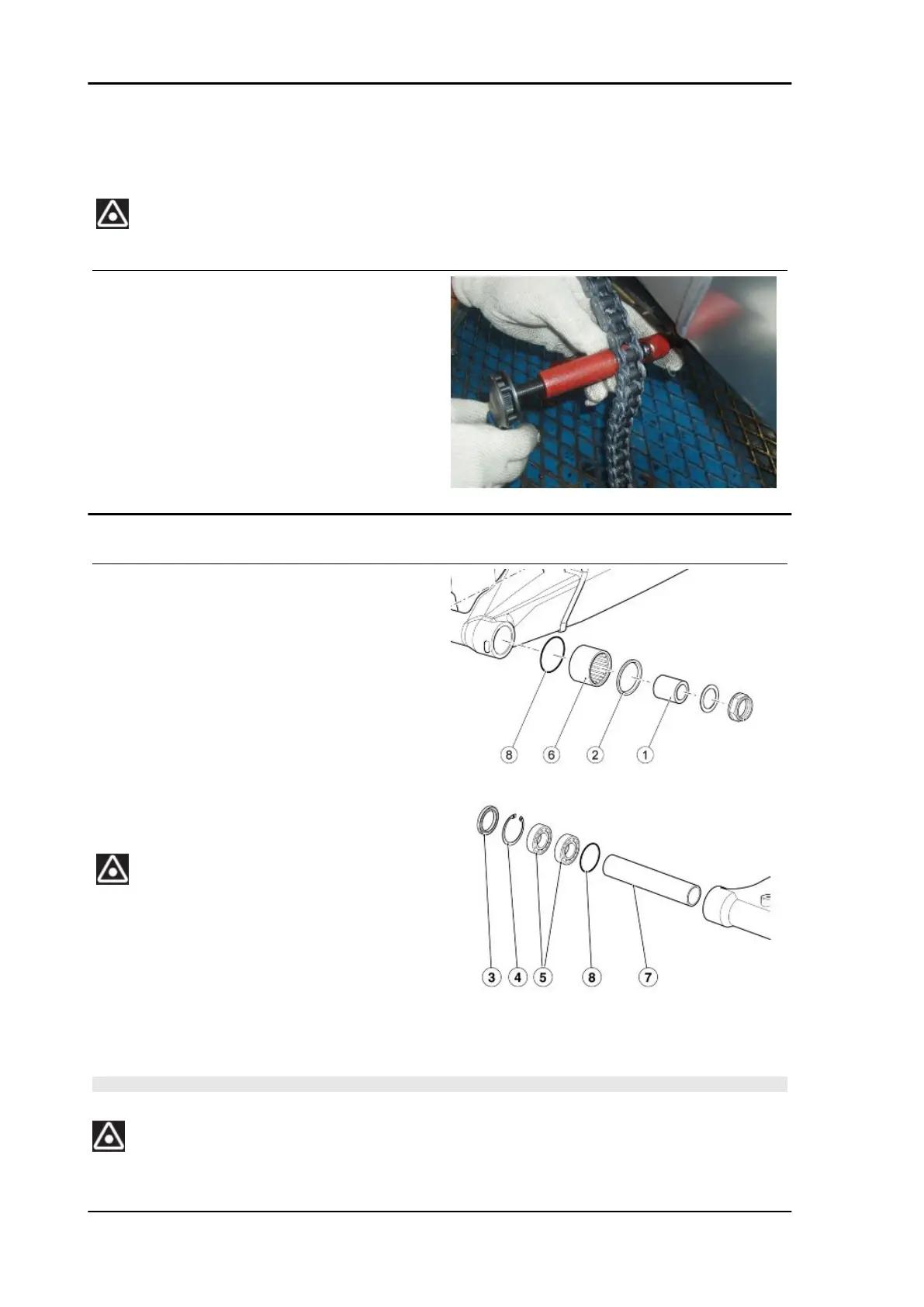

Remove the adjustment bushing from
the swingarm pin (2).
UPON REMOVING THE REAR SWINGARM PAY ATTEN-
TION NOT TO JAM THE GEARING CHAIN.
•
If necessary, use a specific tool to re-
move a pin from the drive chain.
•
Open and remove the chain.
Checking
•
Remove the swingarm.
•
Clean the two sides of the bearing
seats with a cloth.
•
Slide off the bushing (1).
•
Remove the sealing gasket (2).
•
Remove the sealing gasket (3).
•
Remove the circlip (4).
•
Use the specific special tool to extract
the two bearings (5) and the roller bear-
ing (6).
CHECK AND, IF REQUIRED, REPLACE THE BEARINGS
AFTER EVERY BEARING REMOVAL.
Specific tooling
AP8140180 Extractor for bushings
•
Remove the inner spacer (7) and collect the two OR seals (8).
•
Carefully clean inside the bearing seat.
CAUTION
WASH ALL THE PARTS WITH CLEAN DETERGENT.
UPON REFITTING, USE A BUFFER WITH A DIAMETER EQUAL TO THE EXTERNAL RING OF THE
BEARINGS TO INSERT THE BEARINGS.
Chassis TUONO V4 R
CHAS - 402
