020852Y Crankshaft timing pin
Rear head

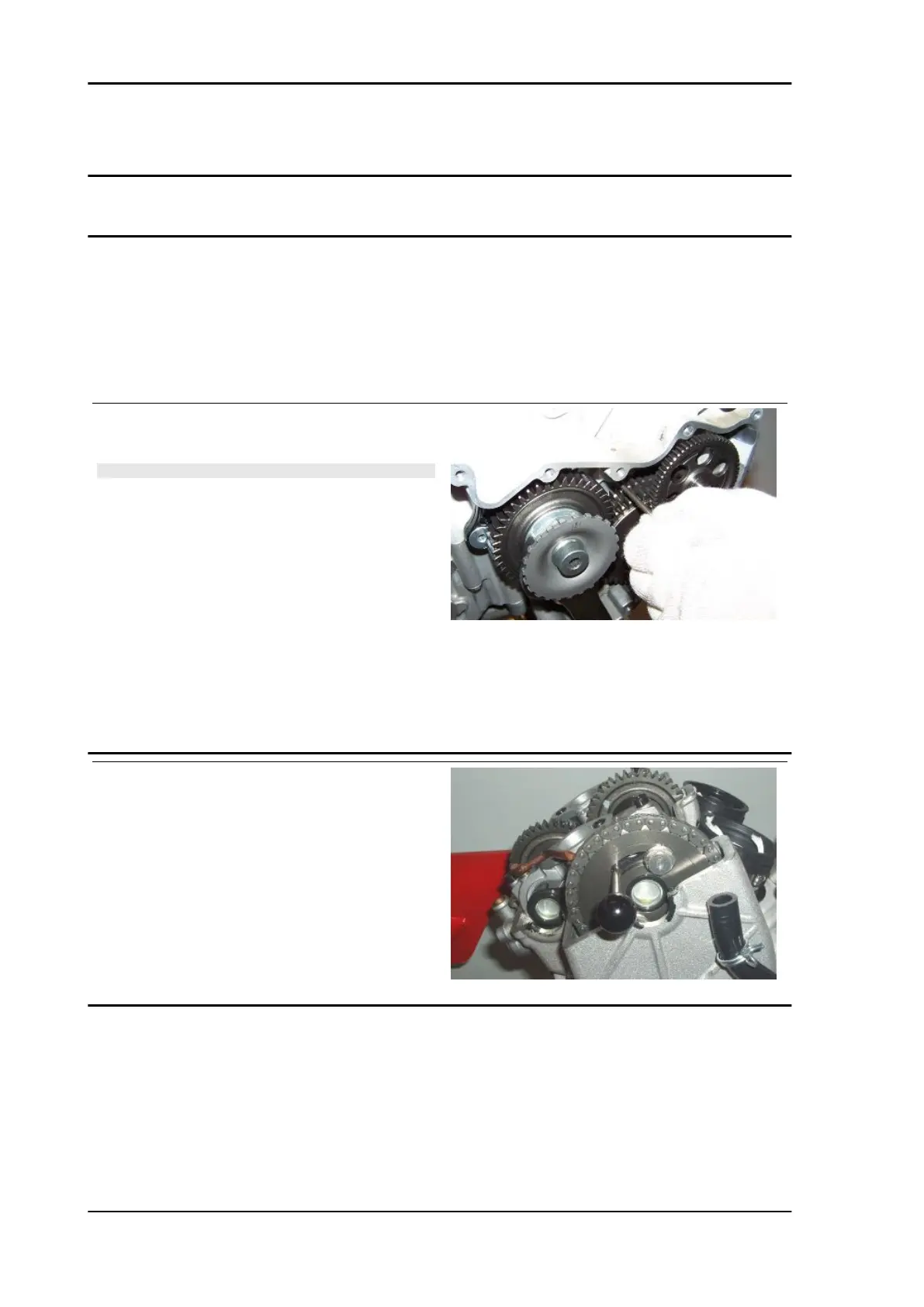

Removing camshafts
•
Remove the rear head cover and the clutch cover.
•
Move cylinder piston 1 (left rear piston) to the TDC;
•
Turn the crankshaft 450° (one complete turn + 90°) in the direction of motor rotation (direction
of travel).
•
Insert the pin from the clutch side into
the hole in the crankshaft.
NOTE
THE SPECIAL TOOL IS ONLY USED FOR IDENTIFYING
THE CORRECT CRANKSHAFT POSITION.
DO NOT USE IT FOR TIGHTENING OPERATIONS.
Specific tooling
020852Y Crankshaft timing pin
See also
Head cover removal
Removing the
clutch cover
•
Fit the pin for aligning the intake cam-
shaft with the hole on U-bolt.
•
If it was not possible before adjusting
the valve clearance, check the engine
timing.
Specific tooling
020851Y Camshaft timing pin
Engine TUONO V4 R
ENG - 288
